U-Channel Stamping Lever Bracket with Progressive Die Stamping and Customizable Material Thickness for Reinforced Structure

U-Channel Stamping Lever Bracket with Progressive Die Stamping and Customizable Material Thickness for Reinforced Structure

Detail Information
Place of Origin
CN
Brand Name
METS
Product Name:
U-Channel Stamping Lever Bracket / Transmission Pivot Arm
Product Category:
Precision Metal Stamping / Mechanical Linkage Parts
Manufacturing Process:
Progressive Die Stamping / Precision U-Bending Process
Raw Material Options:
Stainless Steel (SUS304 / SUS430) / Cold Rolled High-Strength Steel (SPCC/Q235) / Carbon Steel
Material Thickness (T):
1.0 Mm - 3.0 Mm (Customizable)
Surface Finishing:
Vibratory Polishing / Zinc Plated (Clear/Yellow) / Nickel Plated / Passivation
Product Description
U-Channel Stamping Lever Bracket | Precision OEM Metal Part

The U-Channel Stamping Lever Bracket is a precision-engineered metal component designed for mechanical support, lever positioning, and structural connection applications. Manufactured through advanced sheet metal stamping and forming processes, this bracket features a U-channel structure that provides excellent rigidity, stability, and load-bearing performance while maintaining a lightweight design.

Our precision stamped lever brackets are produced using high-quality metal materials and advanced manufacturing technologies, including progressive stamping, punching, bending, and forming. The U-shaped channel design enhances structural strength, improves resistance to deformation, and ensures reliable performance in demanding mechanical assemblies.

We specialize in OEM custom metal stamping parts based on customer drawings, samples, CAD files, or technical specifications. Custom options include dimensions, hole patterns, bending angles, material selection, surface treatments, and special forming requirements.

Made from materials such as carbon steel, stainless steel, galvanized steel, and aluminum alloys, our U-channel lever brackets provide excellent durability, corrosion resistance, and dimensional accuracy. They are widely used in automotive components, industrial machinery, automation equipment, electrical systems, and mechanical assemblies.

With professional engineering support, advanced stamping equipment, and strict quality control, we deliver reliable OEM solutions from prototype development to high-volume production.

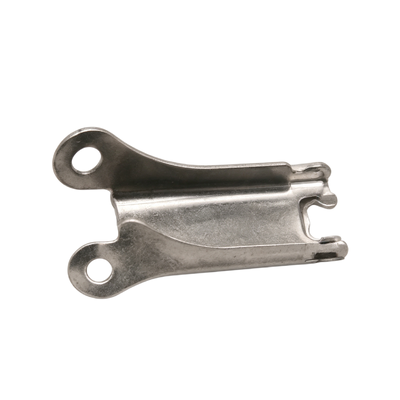

U-Channel Stamping Lever Bracket precision metal part
Features
  • U-Channel Reinforced Structure: The U-shaped design improves rigidity and strength, providing stable support for lever mechanisms and structural assemblies.
  • Precision Stamping Manufacturing: Advanced stamping technology ensures accurate dimensions, consistent quality, and reliable batch production.
  • High Mechanical Strength: Optimized material selection and forming processes provide excellent load capacity and deformation resistance.
  • Custom OEM Design: Supports customized shapes, hole positions, dimensions, and structural requirements according to customer specifications.
  • Durable Material Options: Available in stainless steel, carbon steel, galvanized steel, aluminum, and other metal materials.
  • Excellent Assembly Compatibility: Accurate forming and hole positioning ensure easy installation and reliable connection with other components.
  • Cost-Effective Mass Production: Progressive stamping enables efficient manufacturing for large-volume orders while maintaining stable quality.

Technical Parameters
Parameter Specification
Product Name U-Channel Stamping Lever Bracket
Product Type Metal Stamping Bracket / Lever Support
Manufacturing Process Sheet Metal Stamping, Progressive Stamping, Punching, Bending
Material Stainless Steel, Carbon Steel, Aluminum, Galvanized Steel
Material Grade SUS304, SUS316, SPCC, SECC, Aluminum Alloy
Material Thickness 0.3mm - 6.0mm (Customized)
Structure Type U-Channel Formed Bracket
Hole Type Round Hole, Slot Hole, Custom Hole Pattern
Forming Method Stamping, Bending, Embossing, Punching
Surface Treatment Powder Coating, Zinc Plating, Anodizing, Polishing, Passivation
Size Customized According to Drawing
Tolerance ±0.01mm - ±0.1mm
Load Capacity Customized Based on Application
Production Capability Prototype, Small Batch, Mass Production
Inspection Dimensional Inspection, Appearance Inspection
Customization OEM / ODM Available

Applications
Automotive Industry

U-channel lever brackets are commonly used in automotive mechanisms, including linkage systems, support structures, adjustment mechanisms, and mounting assemblies. Their high strength and precise forming meet the requirements of automotive components.

Industrial Machinery

Used in mechanical equipment, production machines, and automation systems as support brackets, connection parts, and structural reinforcement components.

Automation Equipment

Precision stamped lever brackets provide reliable positioning and movement support for robotic systems, automated devices, and industrial control equipment.

Electrical Equipment

Applied in electrical cabinets, control systems, and equipment assemblies where strong mounting support and accurate positioning are required.

Hardware & Mechanical Products

Suitable for various mechanical products, tools, and assemblies requiring durable metal support components.


Customization

We provide complete OEM U-channel stamping lever bracket customization services according to customer design requirements.

Customization Options Include:
  • Custom U-channel dimensions
  • Custom bracket length and width
  • Custom hole positions and patterns
  • Custom bending angles
  • Custom material selection
  • Custom thickness requirements
  • Custom reinforcement ribs
  • Custom surface finishing
  • Custom packaging solutions

Our engineering team can assist with design optimization, material selection, and stamping process improvement to achieve better performance and cost efficiency.


Support and Services
Engineering Support

Our technical team provides professional assistance in:

  • Product structure optimization
  • Material selection
  • Stamping process design
  • Manufacturing feasibility analysis
Prototype Development

We support prototype manufacturing to verify product design, installation compatibility, and mechanical performance before mass production.

Quality Control

Each batch is inspected through strict quality management procedures, including:

  • Material verification
  • Dimensional measurement
  • Hole position inspection
  • Surface inspection
  • Forming accuracy testing
  • Final quality inspection
OEM Manufacturing Service

We provide reliable OEM production solutions with advanced stamping equipment, experienced technicians, and stable production capability.

Technical Support

Professional communication and technical assistance are available throughout product development, production, and delivery.


Packing and Shipping
Packing

To ensure product protection during transportation, products are packed with:

  • Protective plastic bags
  • Foam separation packaging
  • Carton boxes
  • Wooden cases for large shipments
  • Customized export packaging

Packaging methods can be adjusted according to product size, quantity, and customer requirements.

Shipping

We provide global shipping solutions:

  • Express shipping for samples and urgent orders
  • Air freight for medium-volume shipments
  • Sea freight for large production orders

All products are carefully inspected and securely packed before shipment.


FAQ
1. What is a U-channel stamping lever bracket?
A U-channel stamping lever bracket is a metal support component manufactured through stamping and forming processes, designed to provide structural support and connection for lever mechanisms and mechanical assemblies.
2. What materials can be used for U-channel brackets?
We manufacture brackets using stainless steel, carbon steel, galvanized steel, aluminum alloys, and other customized materials.
3. Can you manufacture custom lever brackets?
Yes. We provide OEM manufacturing based on customer drawings, samples, CAD files, or technical specifications.
4. What stamping processes do you use?
Our processes include progressive stamping, punching, bending, forming, embossing, and surface finishing.
5. What thickness range can you produce?
We can manufacture metal brackets with thicknesses from 0.3mm to 6.0mm, depending on product requirements.
