Product Details:
|
| Type Of Die: | Progressive Die | Production Material: | Copper,steel |
|---|---|---|---|
| Mould Life: | 3000000 Strokes | Press Force: | 25Ton |
| Tolerance: | ±0.02mm | Main Tooling Material: | SKD11 |
| Precision: | 0.001mm | Cavity: | Two Rows |
| Thickness: | 0.5mm | Processing Way: | WEDM,CNC |
| High Light: | sheet metal components,sheet metal parts |
||

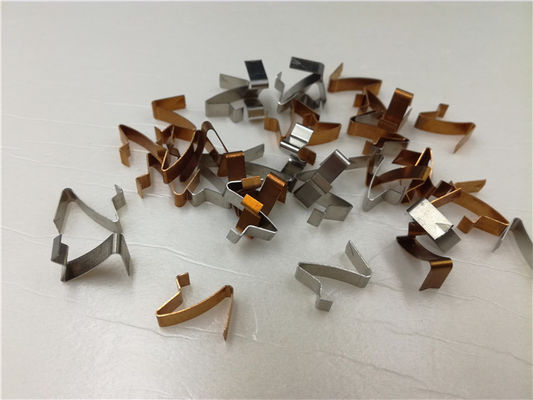

High precision sheets metal stamping snap button v shape spring clips stamping parts
Stamping Capability
A: The min. pitch: 0.5mm
B: Highest stamping speed: 600SPM/min or more
C: Precision: ±0.003mm
D: Rate of hole diameter and thickness 0.85:1
E: Stamping material thickness:0.05-2.0mm
F: zero or less loss of material use.
METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Tool&Die Profile
| Production Material | Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy |
| Surface treatments | Anodize or Nickel plating or as per customer's requirement |
| Processing methods | Forgings, CNC milling and turning, Grinding, casting, Broaching, etc. |
| Heat treatment capability | Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening |
| Processing machine | CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments. |
| Inspection machine | Projector, Caliper, Universal testing machine, Surfagauge and screw gauge |
| Tolerance | 0.02mm |
| shipping | 5--10 work days after received order and deposit |
| Payment Terms | T/T or L/C |
| Main Export Markets | North America, Europe, Mid East, Asia, Australia, Central/South America, etc |
| Application | Vehicle, Car, Electronic components, Household, Hardware, etc. |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die details:
