Product Details:
|
| Type Of Die: | Progressive Die | Production Material: | Copper |
|---|---|---|---|
| Mould Life: | 4000000 Strokes | Press Force: | 45Ton |
| Tolerance: | ±0.03mm | Main Tooling Material: | SKH9 |
| Precision: | 0.008mm | Cavity: | Two Rows |
| Thickness: | 0.5mm | Processing Way: | WEDM,drill |
| High Light: | sheet metal components,sheet metal forming dies |
||

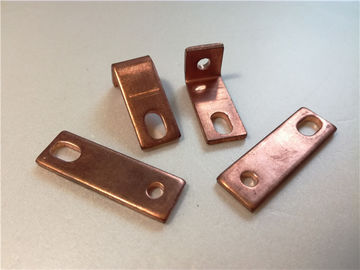

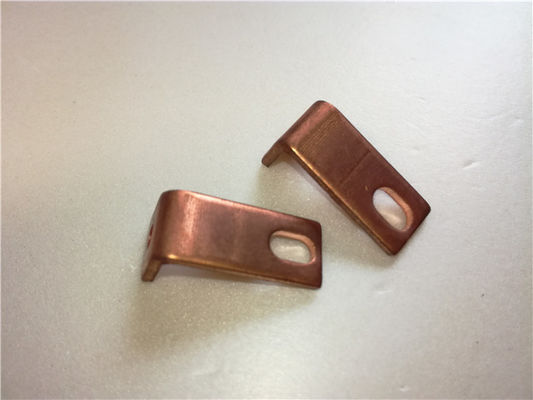

Thick bended pure copper stamping parts with one fixed hole and one adjustable hole
Progressive dies are used in higher-volume production and are designed to operate at high rates of speed. MTS manufactures high-quality, reliable and cost-effective progressive dies for the automotive, appliance, office furniture, and aerospace industries. We have the expertise and technology to design, test and manufacture progressive tools that meet a broad range of manufacturing challenges
METS can design and build “bending and forming” progressive die, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Tool&Die Profile
| Production Material | Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy |
| Surface treatments | Anodize or Nickel plating or as per customer's requirement |
| Processing methods | Forgings, CNC milling and turning, Grinding, casting, Broaching, etc. |
| Heat treatment capability | Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening |
| Processing machine | CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments. |
| Inspection machine | Projector, Caliper, Universal testing machine, Surfagauge and screw gauge |
| Tolerance | 0.02mm |
| shipping | 5--10 work days after received order and deposit |
| Payment Terms | T/T or L/C |
| Main Export Markets | North America, Europe, Mid East, Asia, Australia, Central/South America, etc |
| Application | Vehicle, Car, Electronic components, Household, Hardware, etc. |
How to start a new mould business?
| 1.Quote | According to samples/picture/design, 2/3 D drawing and specification |
| ↓ | |
| 2.Discussion | Mould core/base material, cavity number, runner type, price, payment, etc |
| ↓ | |
| 3.PI | Approval for all terms |
| ↓ | |
| 4. Deposit | 50% by T/T |
| ↓ | |
| 5.Product Design | Our engineer will check product drawing, and pick up the unreasonable terms |
| ↓ | |
| 6.Mould Design | Our engineer will do DFM and send PPT to customers for approval |
| ↓ | |
| 7.Mould making | We start to make mould after customers confirmed the drawing |
| ↓ | |
| 8.Mold Testing | We will express trial samples to customers by DHL for confirmation |
| ↓ | |
| 9. Mould repair | We will modify the mould according to customer’s feedback |
| 10. Mould approval | Express trial samples by DHL again till products approval |
| ↓ | |
| 11.Balance payment | 50% by T/T before delivery |
| ↓ | |
| 12.Delivery | Delivery by sea or air, all documents as customer required |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die details:
