Precision stamping die mould for EI core transformer lamination stacking ,EI41、EI42、EI48、EI54、EI57、EI60 ,Customized

MOQ: 1 piece
Price: 0.1
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Product Description
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Item:
Motor Stator Core
Manufacturing Type:
Stamping Die
Mould Life:
1,000,000-3,000,000 Strokes
Application:
Dc Motors Ac Motors
Stack:
Interlocking
Main Tooling Material:
DC53
Thickness:
0.5mm
Usage:
DC Brushless Motor
Minimum Order Quantity:
1 piece
Price:
0.1
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

electrical lamination stamping

,

motor core lamination

Product Description

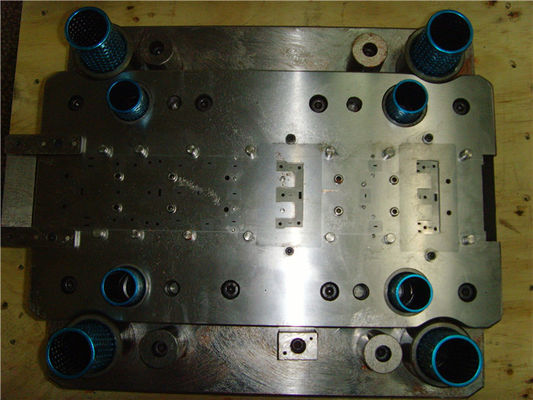

Precision stamping die mould for EI core transformer lamination stacking ,EI41,EI42,EI48,EI54,EI57,EI60 ,Customized



Motor stator and rotor Stampings

We can manufacture laminations in all grades of silicon steel including fully or semi processed steel in the form of Stators & Rotors, Field & Armatures in loose as well as Interlocked & Auto Riveting Cores, AC/DC motor stator and rotor, induction motor stator, brushless motor stator and rotor, stepper motor stator and rotor,SR motor stator and rotor, PM motor stator and rotor, universinal motor stator and rotor, etc.

Dimensions of EI,Stator and rotor core lamination tooling.with riveting or no riveting,You make stamping ,die here.If the production sheets quantity is no so much.Like some custom-made eltrical stator and rotor core.We also could punch the cores for you too.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Stator and rotor core profile

Type Laminated Cores, Stator, Non-oriented Silicon Steel, steel company, stator and rotor
Material Silicon Steel, cold rolled non-oriented silicon steel, 50WW400, Cold Rolled Sheet, 0.2mm--20JNEH1200
Application Dc Motors Ac Motors, various power transformers and ballasts, mining machine ;Heavy machinery factory, Household Appliances, permanent magnet motor
Size Customers' Requirement, based on the customers' requirements, Customization, Drawing
Packing Wooden.box.carton.as Customer Requirment, Paper Cartons, PP + Carton with process of antirust, wooden pallet, Rohs
Quality 100%Inspection, Contract standard
Item Motor Stator Core, Silicon Steel Lamination
Surface treatment Coated, According to your requirement
Manufacturing type Stamping Die, Custom's Drawing, According to custom's drawing or sample.
Usage DC brushless motor, Spare Parts, rotor and stator
Grade 50TW470, 50 WW 800
Shape EI Lamination, Steel Coil
Id 24mm, 133.5mm, 136mm, Customized
Dimensions As per customer requirement, EI-75Y with Gap, EI-96, Width 1000~1250MM, EI-30
Technique Cold Rolled
Thickness 0.35 - 0.5 mm, 0.23/0.27/0.3/0.35mm
Standard GB, ASTM, AISI, DIN, Other
Od 200mm, Customized, 49mm
Degree of precision ±0.01mm or as requirements


How to start a new mould business?

1.Quote According to samples/picture/design, 2/3 D drawing and specification
↓ 　
2.Discussion Mould core/base material, cavity number, runner type, price, payment, etc
↓ 　
3.PI Approval for all terms
↓ 　
4. Deposit 50% by T/T
↓ 　
5.Product Design Our engineer will check product drawing, and pick up the unreasonable terms
↓ 　
6.Mould Design Our engineer will do DFM and send PPT to customers for approval
↓ 　
7.Mould making We start to make mould after customers confirmed the drawing
↓ 　
8.Mold Testing We will express trial samples to customers by DHL for confirmation
↓ 　
9. Mould repair We will modify the mould according to customer’s feedback
　↓ 　
10. Mould approval Express trial samples by DHL again till products approval
↓ 　
11.Balance payment 50% by T/T before delivery
↓ 　
12.Delivery Delivery by sea or air, all documents as customer required



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

　 By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q:Did the stamping die suit for my press machine?
---The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q:What’s your advantage compare with other supplier’s on the market?
----We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

----All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

----All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



Production Shows:

Precision stamping die mould for EI core transformer lamination stacking ,EI41、EI42、EI48、EI54、EI57、EI60 ,Customized 0Precision stamping die mould for EI core transformer lamination stacking ,EI41、EI42、EI48、EI54、EI57、EI60 ,Customized 1Precision stamping die mould for EI core transformer lamination stacking ,EI41、EI42、EI48、EI54、EI57、EI60 ,Customized 2
