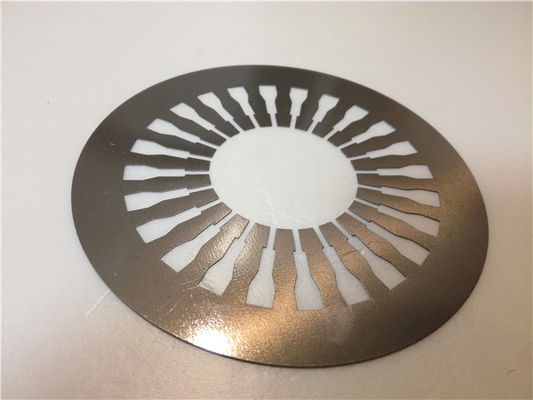

Loose / Interlocked Stator Core Laminations Auto Water Pump Iron Core For Motor Stator

Loose / Interlocked Stator Core Laminations Auto Water Pump Iron Core For Motor Stator

MOQ: 1 piece
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Stamping Die
Material:
Silicon Iron B50A800
Mould Life:
1,000,000-2,000,000 Shots
Press Force:
35Ton
Main Tooling Material:
DC53
Precision:
0.001mm
Thickness:
0.5mm
Processing Way:
WEDM,CNC
Minimum Order Quantity:
1 piece
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

electrical lamination stamping

,

motor core lamination

Product Description



Loose/ interlocked lamination iron core progressive stamping die for motor stator , auto water



pump iron core





Motor stator and rotor Stampings

We can manufacture laminations in all grades of silicon steel including fully or semi processed steel in the form of Stators & Rotors, Field & Armatures in loose as well as Interlocked & Auto Riveting Cores, AC/DC motor stator and rotor, induction motor stator, brushless motor stator and rotor, stepper motor stator and rotor,SR motor stator and rotor, PM motor stator and rotor, universinal motor stator and rotor, etc.

Dimensions of EI,Stator and rotor core lamination tooling.with riveting or no riveting,You make stamping ,die here.If the production sheets quantity is no so much.Like some custom-made eltrical stator and rotor core.We also could punch the cores for you too.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Stator and rotor core profile

Part thickness 0.35-0.5-0.65mm
Product Name Stamping motor core stator , rotor,lamination sheets
Part material Silicon steel
Grade B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum
Die type Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect.
cavity Single / Multi per request
Stacking loose sheets,or Auto interlocked Stacking
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc.
Machinery Equipment Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~160T
First trial sample 1-10 sets free




We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.



FAQ

1.Q: Are you a factory or trading company?
A: We are a factory,a professional metal stamping die and hardware stamping manufactuer.

2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen, Fujian Province, China,We warmly welcome all our clients, from home or abroad, to visit us!



3.Q: What is the material of your tooling?
A: The material are D2,YG15,DC53,SKD11,D2,SKH-9,SKH-51

4.Q: The maximum press your fatory have available ?
A: There are 25T,35T,45T,60T,80T,110T,160T punching machines in our factory.

5.Q: What about the machines of your factory?

A: Our factory owns a full set of Machining equipment, include large CNC machning center,Sodic EDM machning,import EDM-HS,Radial drilling machines,Milling machines,Grinders,three-D inspection etc.

6.Q: How does your factory do regarding quality control?
A: Quality is priority. METS people always attach great importance to quality controlling from the very beginning to the very end. All the moulds,the QC measure with three-D measuring equipments regularly.



To get quick response, please contact us by mail directly

Q: How can I get quotation quickly
A: Please send your inquiry and technical details to Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.
