|Type Of Die:||Progressive Die||Material:||Silicon Steel|
|Mould Life:||1,000,000-2,000,000 Shots||Press Force:||25 Ton|
electrical lamination stamping,
electrical steel laminations

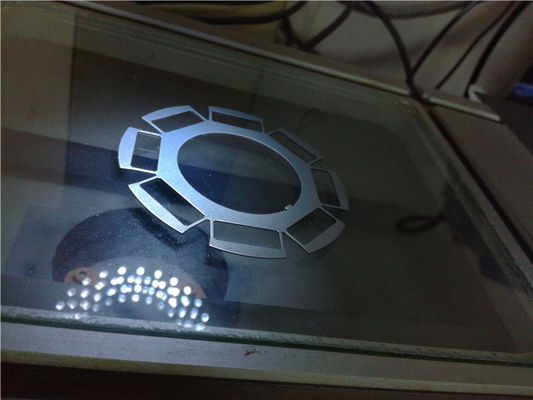

Thin edge small stator rotor lamination sheets stamping parts,50WW470 M250-35A,M270-
Motor stator and rotor Stampings
We can manufacture laminations in all grades of silicon steel including fully or semi processed steel in the form of Stators & Rotors, Field & Armatures in loose as well as Interlocked & Auto Riveting Cores, AC/DC motor stator and rotor, induction motor stator, brushless motor stator and rotor, stepper motor stator and rotor,SR motor stator and rotor, PM motor stator and rotor, universinal motor stator and rotor, etc.
Dimensions of EI,Stator and rotor core lamination tooling.with riveting or no riveting,You make stamping ,die here.If the production sheets quantity is no so much.Like some custom-made eltrical stator and rotor core.We also could punch the cores for you too.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Stator and rotor core profile A
|Product Name||Stamping motor core stator , rotor,lamination sheets|
|Part material||Silicon steel|
|Grade||B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum|
|Die type||Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect.|
|cavity||Single / Multi per request|
|Stacking||loose sheets,or Auto interlocked Stacking|
|Die material||YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,|
|Die use||Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc.|
|Machinery Equipment||Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine,|
|Die precision||High precision machining, minimum 0.003mm|
|Trial out press||25~160T|
|First trial sample||5-10 sets free
Mould building process
|Step||Item||high speed stamping die|
|1||Quotation||Quote competitive price according to your details (drawing or sample, and related requirements).|
|2||Order||Sign agreement after confirming price|
|3||Mould design||Design the mould structure drawing according to your product drawing or sample,|
|then send the tooling drawings to you for confirmation.|
|4||Mould making||After your confirmation of our drawing, we begin to make the moulds,|
|during manufacturing program,|
|we send you mould building progress with pictures every week, for you to know our process.|
|5||First trial||We will make the stamping die first trial on time, then send you video or picture|
|and trial samples for you to confirm.|
|Or you can also come to our factory .And we will inspect them and issue the report.|
|6||Quality confirm||You will confirm our stamping die quality according to sample.|
|If you need to adjust the product structure, we can help you to change it further.|
|7||Delivery||Ship the stamping die after it is completely OK, packed by wooden case.|
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
|By Express||By Air||By Sea|
|West Europe||3-5 days||4-6 days||22-30days|
|USA &Canada||3-4days||5-6 days||16-27days|
|South Asia||3-5 days||3-7 days||12-20 days|
|Japan&South Korea||2-3 days||3-4 days||10-13 days|
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make
Contact Person: Ms. Kelly Lam
