Assy Tooling Sheet Metal Progressive Die , Stamping Die Parts Brass Material

Assy Tooling Sheet Metal Progressive Die , Stamping Die Parts Brass Material

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Material:
Brass
Mould Life:
500000 Strokes
Press Force:
25Ton
Tolerance:
±0.003mm
Main Tooling Material:
DC53,SKD61
Precision:
0.001mm
Cavity:
One Row
Thickness:
0.5mm
Processing Way:
WEDM,CNC,Grinding
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

progressive metal forming

,

progressive sheet metal

,

Sheet Metal Progressive Stamping Assy Tooling

Product Description

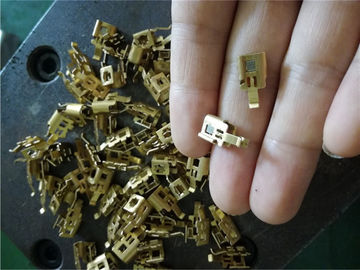

Brass contact stamping parts riveting with a small net inside by one progressive die and

assy tooling

Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.

METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

Tool&Die​ Profile

General CapabilitiesDesign Modeling 2D, 3D,processing,assemblingDie Location Technical SupportInspection
Detail Tooling DocumentationDFMEA/PFMEAQuick Building Prototypes
Die TypesForming DiesPrecision Progressive Stamping DiesSecondary Dies
High Speed Steel Stamping DiesPrecision Blanking DiesForming Die
Tooling MaterialCarbide(CD650,V3,KD20)ASP-23ASP-60
S55C---45#55AL7075SKD11
Tooling Life50 Million to 1000 Million Times
Die Concept2-Plate Die3-Plate DieModule Die
Production EquipmentCNCSODICK Nice Surface EDMP/G
DrillSODICK Wire Cutting MachineJ/G
Milling MachineWAIDA Profile Grinder Machine
Stamping EquipmentAIDAPURDERMICO
MICO
Stamping ProductCustom StampingSIM shrapnelSpring clip
Battery shrapnelShield DrawingPress-Fit Terminal
Lead FramePower Contact TerminalPC Terminal parts
Additional Services ProvidedCustom PackingPackagingHeat Treat
Plating
Delivery3-5 Week3-6 Week4-7 Week


Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.

FAQ
To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.


Stamping die Shows:

Assy Tooling Sheet Metal Progressive Die , Stamping Die Parts Brass Material 0Assy Tooling Sheet Metal Progressive Die , Stamping Die Parts Brass Material 1
