Product Details:
|
| Type Of Die: | Progressive Die | Production Material: | Copper Alloy Plate Q195 Copper |
|---|---|---|---|
| Mould Life: | 1,000,000-3,000,000 Shots | Press Force: | 35Ton |
| Tolerance: | ±0.03mm | Main Tooling Material: | DC53 |
| Precision: | 0.001mm | Cavity: | Two Cavities |
| Thickness: | 0.5mm | Processing Way: | WEDM |
| High Light: | progressive sheet metal,sheet metal forming dies,Progressive Metal Cable Connectors |
||

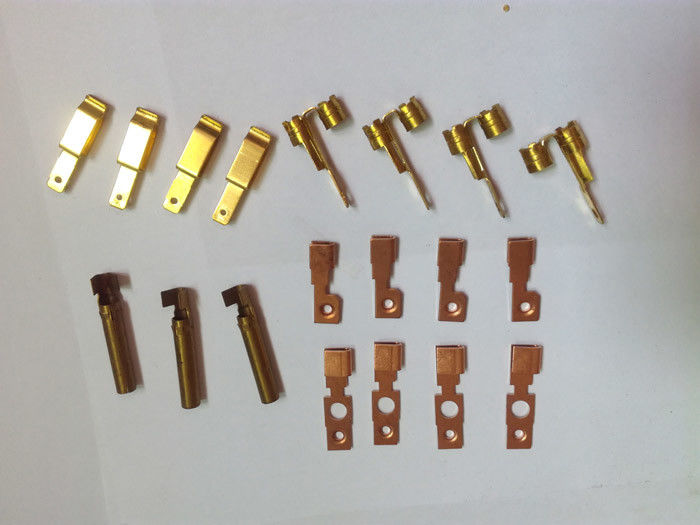

Brass nickel plating contact quick cable connectors stamping parts
Why us?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service
METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Product description
| Mould material | D2,DC53,YG15,YG20,SKD11/51/61,SKH-9,Cr12mov, Cr12,45#, etc. |
| Product material | copper, brass, metal, stainless steel, BeCu,aluminum |
| Processing methods | Forings,CNC milling and turning,Grinding,Broaching,etc. |
| Processing equipment | CNC machine,Automotic lathe machine,EDM machine,Stamping lathes,Wire-cutting machine,Milling/Grinding machine,Punching/Drilling machine,Ultrasonec cleaning machine,etc. |
| Detection equipment | Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc. |
| Application | Electronic:Vehicle parts,CNC machining parts,Wireless receiver metal parts, 3G/4G Modem Wireless Network metal parts,USB housing. Automotive interior parts: connector, navigation frame, car key. All kinds of connectors, digital parts. |
| surface treatment | Plating,Painting,Powder coating,Anodization |
| Vibration grinding,Polishing,Brushing.or according to customer’s requests. | |
| Design software | PROE ,,UG,SOLIDWORK, CAD,etc. |
| Cavity | Single / Multi per request |
| Mould life | 1-30million shots |
| Specification | Many years machining parts processing experience;Precision tolerance less than 0.001mm;Depends on customer’s requirements. |
| Delivery | Normally within 7-45 days (according to customer drawing, quantity and material) special case will be sooner |
| Payment terms | T/T |
| Package |
Wooden case or as customer's requirements |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die Shows:
