Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling

Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling
Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling
Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling

Large Image :  Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling

Product Details:
Place of Origin: XIAMEN.CHINA
Brand Name: METS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case without need of fumigation
Delivery Time: 7days-35days
Payment Terms: TT,LC
Supply Ability: 25 sets per month

Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling

Description
Type Of Die: Progressive Die Material: Phosphorous Bronze
Mould Life: 2,500,000 Strokes Press Force: 35Ton
Tolerance: ±0.031mm Main Tooling Material: DC53
Precision: 0.001 Cavity: One Row
Thickness: 0.5mm Processing Way: WEDM,Drill
High Light:

progressive metal forming

,

sheet metal forming dies

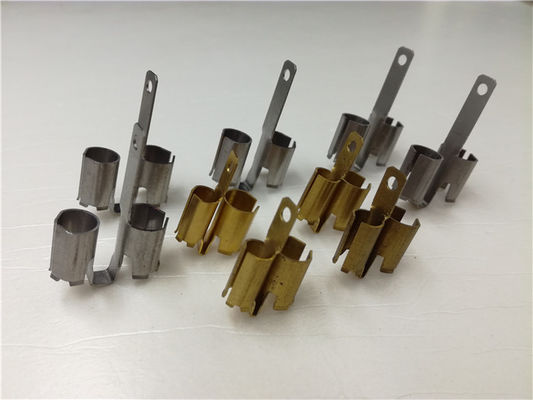

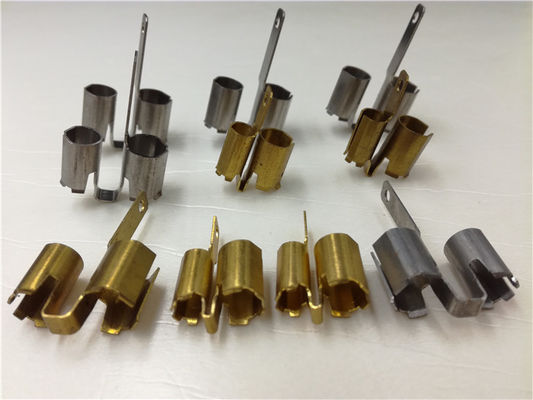

Brass contact stamping parts riveting with a small net inside by one progressive die and assy



tooling



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.

Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Mould building process

Step Item high speed stamping die
1 Quotation Quote competitive price according to your details (drawing or sample, and related requirements).
2 Order Sign agreement after confirming price
3 Mould design Design the mould structure drawing according to your product drawing or sample,
then send the tooling drawings to you for confirmation.
4 Mould making After your confirmation of our drawing, we begin to make the moulds,
during manufacturing program,
we send you mould building progress with pictures every week, for you to know our process.
5 First trial We will make the stamping die first trial on time, then send you video or picture
and trial samples for you to confirm.
Or you can also come to our factory .And we will inspect them and issue the report.
6 Quality confirm You will confirm our stamping die quality according to sample.
If you need to adjust the product structure, we can help you to change it further.
7 Delivery Ship the stamping die after it is completely OK, packed by wooden case.





We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



Stamping die Shows:



Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling 0Brass Metal Forming Dies Stamping Parts Riveting Small Net Inside Assy Tooling 1
