Product Details:
|
| Type Of Die: | Progressive Die | Inspection Machine: | Micrometer |
|---|---|---|---|
| Mould Life: | 4,000,000 Strokes | Press Force: | 25Ton |
| Tolerance: | ±0.04MM | Main Tooling Material: | DC53 |
| Precision: | 0.003mm | Cavity: | Four Cavities |
| Thickness: | 0.5mm | Processing Way: | WEDM,Grinding |
| High Light: | progressive sheet metal,sheet metal forming dies |
||

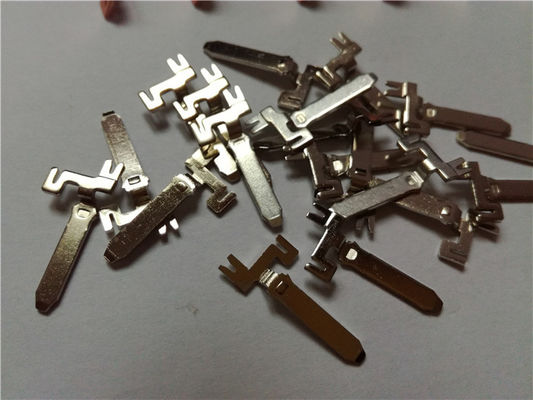

Wire Terminal pins precision progressive blanking stamping Die , custom mold manufacturer
Why us?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service
METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Tool&Die Profile
| General Capabilities | Design Modeling 2D, 3D,processing,assembling | Die Location Technical Support | Inspection |
| Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | |
| Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies |
| High Speed Steel Stamping Dies | Precision Blanking Dies | Forming Die | |
| Tooling Material | Carbide(CD650,V3,KD20) | ASP-23 | ASP-60 |
| S55C---45#55 | AL7075 | SKD11 | |
| Tooling Life | 50 Million to 1000 Million Times | ||
| Die Concept | 2-Plate Die | 3-Plate Die | Module Die |
| Production Equipment | CNC | SODICK Nice Surface EDM | P/G |
| Drill | SODICK Wire Cutting Machine | J/G | |
| Milling Machine | WAIDA Profile Grinder Machine | ||
| Stamping Equipment | AIDA | PURDER | MICO |
| MICO | |||
| Stamping Product | Custom Stamping | SIM shrapnel | Spring clip |
| Battery shrapnel | Shield Drawing | Press-Fit Terminal | |
| Lead Frame | Power Contact Terminal | PC Terminal parts | |
| Additional Services Provided | Custom Packing | Packaging | Heat Treat |
| Plating | |||
| Delivery | 3-5 Week | 3-6 Week | 4-7 Week |
Mould building process
| Step | Item | high speed stamping die |
| 1 | Quotation | Quote competitive price according to your details (drawing or sample, and related requirements). |
| 2 | Order | Sign agreement after confirming price |
| 3 | Mould design | Design the mould structure drawing according to your product drawing or sample, |
| then send the tooling drawings to you for confirmation. | ||
| 4 | Mould making | After your confirmation of our drawing, we begin to make the moulds, |
| during manufacturing program, | ||
| we send you mould building progress with pictures every week, for you to know our process. | ||
| 5 | First trial | We will make the stamping die first trial on time, then send you video or picture |
| and trial samples for you to confirm. | ||
| Or you can also come to our factory .And we will inspect them and issue the report. | ||
| 6 | Quality confirm | You will confirm our stamping die quality according to sample. |
| If you need to adjust the product structure, we can help you to change it further. | ||
| 7 | Delivery | Ship the stamping die after it is completely OK, packed by wooden case. |
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
| By Express | By Air | By Sea | |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: ow can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.
