Tin-Plated Female Box Terminal with Precision Stamping for Automotive Applications
  • name
  • name
  • name

Tin-Plated Female Box Terminal with Precision Stamping for Automotive Applications

Detail Information
Product Description
Detail Information
Place of Origin
CN
Brand Name
METS
Product Name:
Tin-Plated Female Box Terminal / Crimp Socket Terminal
Material:
Brass / Phosphor Bronze / Copper Alloy
Surface Treatment:
Tin-Plated / Nickel-Plated / Gold-Plated
Manufacturing Process:
Progressive Die Precision Stamping
Application:
Automotive Wire Harness Connectors, Industrial Control Systems, Home Appliances
Customization:
OEM / ODM Available (Custom Designs Based On Technical Drawings Or Samples)
Highlight:

Tin-Plated Female Box Terminal

,

Precision Stamping Crimp Socket Terminal

,

Automotive Applications Electrical Connector

Product Description
Tin-Plated Female Box Terminal | Automotive Electrical Connector
The Tin-Plated Female Box Terminal is a precision-engineered electrical terminal designed for secure, stable, and efficient wire-to-wire or wire-to-device electrical connections. Featuring a box-style female contact structure and a tin-plated surface, this terminal provides reliable electrical conductivity, enhanced corrosion resistance, and stable contact performance in demanding automotive and electrical applications.
Manufactured from high-quality conductive metal materials, the terminal is designed to provide consistent crimping performance and dependable electrical contact. The tin-plated finish helps protect the terminal surface from oxidation and environmental corrosion while supporting smooth electrical current transmission. Its female box structure is designed to accommodate a compatible male terminal and create a secure mating connection.
The female box terminal is widely used in automotive wiring harnesses, vehicle electrical systems, electronic equipment, industrial control systems, and low-voltage electrical assemblies. Its compact structure makes it suitable for applications where installation space is limited while reliable electrical performance is required.
We can manufacture standard and customized tin-plated female box terminals according to customer drawings, samples, dimensions, material requirements, plating specifications, and application conditions. Advanced stamping and forming processes help ensure dimensional consistency, stable production quality, and reliable terminal performance for high-volume applications.

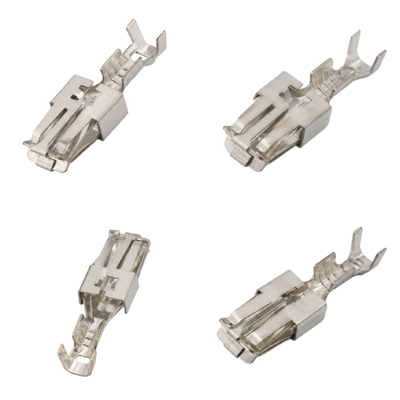

Tin-plated female box terminal product photo
Features
  • Tin-Plated Surface - Provides good conductivity and improved resistance to oxidation and corrosion.
  • Female Box Contact Design - Provides secure mating with compatible male terminals.
  • Reliable Electrical Contact - Designed for stable current transmission and consistent contact performance.
  • Precision Stamping - Manufactured using precision metal stamping and forming processes.
  • Excellent Crimping Performance - Designed for secure attachment to compatible wires and cables.
  • Compact Structure - Suitable for automotive wiring harnesses and space-limited electrical assemblies.
  • Consistent Dimensions - Supports stable assembly and reliable terminal-to-terminal mating.
  • Automotive Applications - Suitable for vehicle electrical and electronic connection systems.
  • Custom Manufacturing - Dimensions, materials, plating, and specifications can be customized.
  • High-Volume Production - Suitable for OEM and ODM orders with consistent batch quality.
Technical Parameters
Parameter Specification
Product Name Tin-Plated Female Box Terminal
Terminal Type Female Box Terminal
Contact Type Female Electrical Contact
Base Material Copper, Brass, Phosphor Bronze or Customized
Surface Treatment Tin Plating
Plating Options Bright Tin / Matte Tin / Customized
Wire Connection Crimp Connection
Contact Structure Box-Type Female Contact
Application Automotive Wiring Harness / Electrical Connection
Operating Temperature Customized According to Application
Wire Size Customized According to Terminal Design
Contact Resistance Customized / Application Dependent
Dimensions Customized According to Drawing or Sample
Tolerance According to Product Design and Customer Requirements
Manufacturing Process Precision Stamping, Forming, Bending and Plating
Quality Control Dimensional, Material and Electrical Performance Inspection
Customization OEM / ODM Available
Technical specifications can be adjusted according to the customer's drawings, samples, application requirements, and performance standards.
Applications
Automotive Wiring Harnesses
The tin-plated female box terminal is commonly used in automotive wiring harness assemblies to create reliable electrical connections between wires and mating terminals. Its compact design and secure contact structure make it suitable for various vehicle electrical systems.
Automotive Electrical Systems
These terminals can be used in vehicle lighting, power distribution, control circuits, sensors, switches, electronic modules, and other low-voltage automotive electrical applications.
Electronic Equipment
The terminal can be integrated into electronic equipment and control assemblies where compact and dependable wire connections are required.
Industrial Electrical Systems
With appropriate material and plating specifications, female box terminals can be used in industrial control panels, electrical equipment, automation systems, and wiring assemblies.
Consumer and Household Electronics
The terminal can also be customized for electrical products and electronic devices requiring reliable crimp-style connections.
Wiring and Connector Assemblies
The terminal is suitable for connector housings and customized terminal assemblies where a female contact is required for mating with a corresponding male terminal.
Customization
We provide OEM and ODM customization services for tin-plated female box terminals. Customers can supply technical drawings, samples, specifications, or application requirements, and our engineering team can develop the terminal according to the required design.
Customization options include:
  • Terminal dimensions and overall geometry
  • Material selection
  • Copper or brass alloy selection
  • Tin plating thickness
  • Bright or matte tin finish
  • Wire size compatibility
  • Crimping area dimensions
  • Contact force requirements
  • Mating structure
  • Terminal thickness
  • Tolerance requirements
  • Packaging method
  • Customer-specific marking or identification
For high-volume automotive and electrical applications, we can also optimize the terminal structure and manufacturing process to improve production consistency, crimping performance, assembly efficiency, and overall cost effectiveness.
Support and Services
Our professional engineering and manufacturing team provides technical support throughout the product development and production process.
Engineering Support
We can review customer drawings, samples, technical specifications, and application requirements to help determine suitable materials, dimensions, plating options, and manufacturing processes.
Prototype Development
Prototype or sample production can be arranged for new terminal designs before mass production, allowing customers to evaluate dimensions, mating performance, crimping quality, and application compatibility.
OEM & ODM Manufacturing
We support customized terminal production for automotive component manufacturers, wiring harness suppliers, electrical equipment manufacturers, and electronic product companies.
Quality Control
Production quality is controlled through material inspection, dimensional inspection, stamping-process monitoring, surface treatment inspection, and finished-product inspection to maintain consistent batch quality.
Technical Communication
Our team can provide technical documentation, production updates, sample confirmation, and order support to help customers manage the complete sourcing process efficiently.
Packing and Shipping
Tin-plated female box terminals are carefully packed to help prevent deformation, contamination, moisture, and surface damage during transportation.
Standard Packaging
  • Bulk packing in PE bags or protective inner packaging
  • Carton packaging for finished products
  • Pallet packaging for larger-volume shipments
  • Customized packaging available
  • Labels and product identification can be customized
Shipping
We can arrange shipping according to order quantity, delivery requirements, and destination, including:
  • Express delivery
  • Air freight
  • Sea freight
  • Other customer-specified transportation methods
Before shipment, finished products are inspected and packed according to the agreed packaging requirements.
FAQ
1. What is a tin-plated female box terminal?
A tin-plated female box terminal is a female electrical contact component with a box-shaped mating structure and tin-plated surface. It is commonly used to establish reliable electrical connections with compatible male terminals.
2. What material is used for the terminal?
Common materials include copper, brass, and phosphor bronze. The material can be selected according to conductivity, mechanical strength, contact performance, and application requirements.
3. Why is tin plating used?
Tin plating helps improve surface protection, electrical conductivity, solderability where applicable, and resistance to oxidation and corrosion. The plating specification can be customized according to the application.
4. Can you manufacture customized female box terminals?
Yes. We support OEM and ODM manufacturing based on customer drawings, samples, dimensions, material specifications, plating requirements, and application conditions.
5. What industries use female box terminals?
They are commonly used in automotive wiring harnesses, automotive electronics, electrical equipment, industrial controls, electronic devices, and customized connector assemblies.
6. Can the terminal be used for automotive wiring harnesses?
Yes. The terminal is designed for applications requiring secure crimped electrical connections and can be customized for automotive wiring harness systems.
7. Can you provide samples before mass production?
Yes. Samples or prototypes can be produced for design verification and application testing before mass production.
8. What information is needed for a quotation?
Customers can provide a product drawing, 3D file, sample, terminal dimensions, material requirements, plating specifications, wire size, estimated order quantity, and application information. Our engineering team can then evaluate the requirements and provide a suitable quotation.
9. Do you support high-volume production?
Yes. Our precision stamping and forming capabilities are suitable for both small-batch development and high-volume OEM production.
10. How can I order customized tin-plated female box terminals?
Send us your drawings, samples, specifications, or application requirements. Our team will review the technical details and provide recommendations for material, plating, tooling, production, and packaging.
