Stamping Making Terminal Block Parts Pin Block Mould Customized Progressive Die

Stamping Making Terminal Block Parts Pin Block Mould Customized Progressive Die

MOQ: 1 piece
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Punching Die
Mould Life:
1,000,000-3,000,000 Shots
Production Material:
Copper Alloy Plate
Main Tooling Material:
DC53
Precision:
0.001mm
Processing Way:
WEDM
Minimum Order Quantity:
1 piece
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

terminal die

,

sheet metal forming dies

Product Description



Stamping mold making,terminal pin block mould customized terminal progressive stamping die



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



Terminal Blocks - Headers, Plugs and Sockets,PCB Terminal Blocks,
Special Type Terminal Blocks, all those toolings could make as progressive die.The tool room was designed and developed to support the needs of our team by providing the best in class tooling to our discerning client base. At the heart of this venture is a CNC machining cell that was engineered using lean principles. The team that developed the cell focused on the elimination of waste. In addition to the CNC cell, the tool room is supported by several Wire EDMs, and waterjet cutting that can create development blanks as well as speed up the tool machining process.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Tool&Die​ Profil

Tool&Die Material SKD11 DC53 45# steel Cr12mov P20
Accuracy 0.002mm
Capacity Tool &die :30 sets/month part :1million /month
Design software 3D: Pro-E

2D: auto CAD
Surface Treatment Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,
Test Equipment Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,
universal testing machine & Coordinate-Detector
Thickness 0.1-2.0mm or other special available
Lead time 15-55 days according to products Max: 2 Weeks (On Initial Order)
Standard ANSI. API.BS.DIN.JIS.GB.etc
Equipment 1) Stamping machine
2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.
3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,
turning, planning, grinding machinery and three-axle machining centers.
Productions Cover Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



Stamping die Shows:

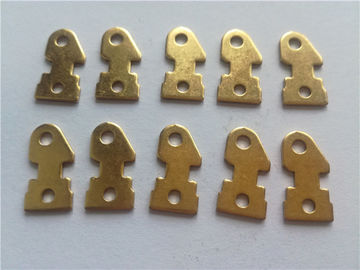

Stamping Making Terminal Block Parts Pin Block Mould Customized Progressive Die 0

Stamping Making Terminal Block Parts Pin Block Mould Customized Progressive Die 1
