Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins

Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Model Number
T002
Tolerance:
±0.002
Thickness:
0.5mm
Processing Way:
WEDM
Material:
Brass
Surface Treatment:
Nickel
Pitch:
3.5/3.81mm
Application:
Wire Connecting
Keywords:
Ceramic Terminal Block,pluggable Terminal Block
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

precision metal stamping parts

,

terminal die

,

Male N Female Terminal Block Parts

Product Description



1,1.5,2.35,3.2,4.0 male n female electrical plug terminal connector pins



Stamping Capability



A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.

Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

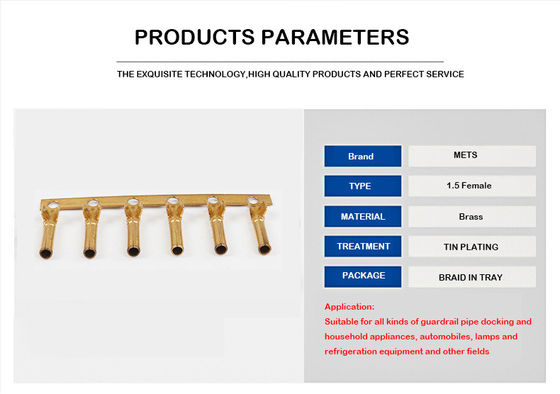

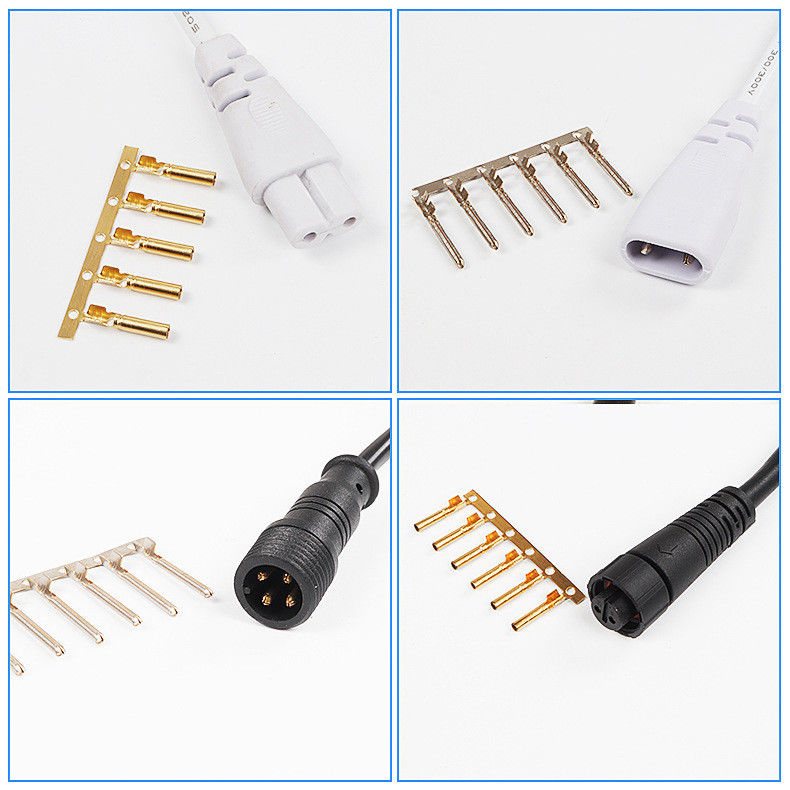

Product name: Male / Female connector pins
Type: Plug&socket
Pin: 1
Quantity: 5000pcs / roll,7000pcs / roll
Rated Voltage(V) 1000V DC or 1500V DC
Temperature range: -40℃~85℃
Contact material: Brass ni plating
Insulator material: PA66/PPO
Section area of cable: 4.0-6.0mm2
Tensile resistance: 100N
Production process: injection
Flame class: UL94-V0
Cable length: Contact us for exactly dimensions



To get quick response, please contact us by mail directly

Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.



Stamping die Shows:

Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 0Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 1Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 2Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 3Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 4Male N Female Terminal Block Parts Electrical Plug Terminal Connector Pins 5
