Two Rows Progressive Die Stamping , Sheet Metal Die Electrical Cuppor / Brass Connector

Two Rows Progressive Die Stamping , Sheet Metal Die Electrical Cuppor / Brass Connector

MOQ: 1 piece
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressiven Die
Production Material:
Copper,aluminum
Mould Life:
1,000,000-3,000,000 Shots
Press Force:
25Ton
Precision:
0.003mm
Cavity:
Two Rows
Thickness:
1mm
Processing Way:
WEDM
Minimum Order Quantity:
1 piece
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

terminal die

,

sheet metal forming dies

Product Description



Electrical cuppor and brass connector progressive stamping die





Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.


Our sevice
METS is a professional metal stamping die and hardware stamping manufactuer.Based on more than 10 years of development, supported by saling, R&D, mould and parts, through integration of precision die stamping, hardware, assembly, we always supply integrated solutions for customers. Our company has capability of large mould machining, large parts forming. In future 10 years, we will further fortify the development of precision mould,exquisite hardware, and make further effort to meet customers' requirements, to improve compositive service of our company.

Our customers come from England, USA, Holland, German, Canada, Russia, Australia, New Zealand, Unraine, India, Brazil, Janpan, South Korea, Turkey, Egypt, South Africa, etc

Why us?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service


Terminal Blocks - Headers, Plugs and Sockets,PCB Terminal Blocks,
Special Type Terminal Blocks, all those toolings could make as progressive die.The tool room was designed and developed to support the needs of our team by providing the best in class tooling to our discerning client base. At the heart of this venture is a CNC machining cell that was engineered using lean principles. The team that developed the cell focused on the elimination of waste. In addition to the CNC cell, the tool room is supported by several Wire EDMs, and waterjet cutting that can create development blanks as well as speed up the tool machining process.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Tool&Die​ Profil

Tool&Die Material SKD11 DC53 45# steel Cr12mov P20
Accuracy 0.002mm
Capacity Tool &die :30 sets/month part :1million /month
Design software 3D: Pro-E

2D: auto CAD
Surface Treatment Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,
Test Equipment Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,
universal testing machine & Coordinate-Detector
Thickness 0.1-2.0mm or other special available
Lead time 15-55 days according to products Max: 2 Weeks (On Initial Order)
Standard ANSI. API.BS.DIN.JIS.GB.etc
Equipment 1) Stamping machine
2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.
3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,
turning, planning, grinding machinery and three-axle machining centers.
Productions Cover Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts



Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.





FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
---The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
----We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



To get quick response, please contact us by mail directly

Q: How can I get quotation quickly
A: Please send your inquiry and technical details to Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.



Stamping die Shows:

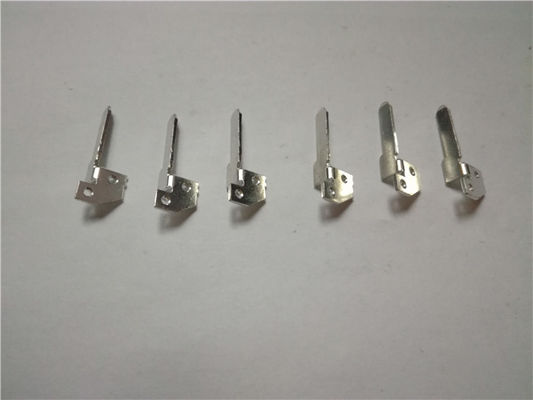

Two Rows Progressive Die Stamping , Sheet Metal Die Electrical Cuppor / Brass Connector 0
