Terminal Metal Stamping Mould Multy - Cavities Modular Switches Sockets Connector

Terminal Metal Stamping Mould Multy - Cavities Modular Switches Sockets Connector

MOQ: 1 piece
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20days
Payment Method: TT,LC
Supply Capacity: 1000000
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Mould Life:
1,000,000-4,000,000 Shots
Press Force:
45Ton
Tolerance:
±0.002
Cavity:
Multy-cavities
Processing Way:
WEDM, CNC,grinding
Minimum Order Quantity:
1 piece
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20days
Payment Terms:
TT,LC
Supply Ability:
1000000
High Light:

terminal die

,

sheet metal forming dies

Product Description

Modular switches sockets part,socket Connector Terminal Mold Stamping Die Tools


Our sevice
METS is a professional metal stamping die and hardware stamping manufactuer.Based on more than 10 years of development, supported by saling, R&D, mould and parts, through integration of precision die stamping, hardware, assembly, we always supply integrated solutions for customers. Our company has capability of large mould machining, large parts forming. In future 10 years, we will further fortify the development of precision mould,exquisite hardware, and make further effort to meet customers' requirements, to improve compositive service of our company.

Our customers come from England, USA, Holland, German, Canada, Russia, Australia, New Zealand, Unraine, India, Brazil, Janpan, South Korea, Turkey, Egypt, South Africa, etc

Why us?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service


Terminal Blocks - Headers, Plugs and Sockets,PCB Terminal Blocks,
Special Type Terminal Blocks, all those toolings could make as progressive die.The tool room was designed and developed to support the needs of our team by providing the best in class tooling to our discerning client base. At the heart of this venture is a CNC machining cell that was engineered using lean principles. The team that developed the cell focused on the elimination of waste. In addition to the CNC cell, the tool room is supported by several Wire EDMs, and waterjet cutting that can create development blanks as well as speed up the tool machining process.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Product description

Mould material D2,DC53,YG15,YG20,SKD11/51/61,SKH-9,Cr12mov, Cr12,45#, etc.
Product material copper, brass, metal, stainless steel, BeCu,aluminum
Processing methods Forings,CNC milling and turning,Grinding,Broaching,etc.
Processing equipment CNC machine,Automotic lathe machine,EDM machine,Stamping lathes,Wire-cutting machine,Milling/Grinding machine,Punching/Drilling machine,Ultrasonec cleaning machine,etc.
Detection equipment Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc.
Application Electronic:Vehicle parts,CNC machining parts,Wireless receiver metal parts, 3G/4G Modem Wireless Network metal parts,USB housing. Automotive interior parts: connector, navigation frame, car key. All kinds of connectors, digital parts.
surface treatment Plating,Painting,Powder coating,Anodization
Vibration grinding,Polishing,Brushing.or according to customer’s requests.
Design software PROE ,,UG,SOLIDWORK, CAD,etc.
Cavity Single / Multi per request
Mould life 1-30million shots
Specification Many years machining parts processing experience;Precision tolerance less than 0.001mm;Depends on customer’s requirements.
Delivery Normally within 7-45 days (according to customer drawing, quantity and material) special case will be sooner
Payment terms T/T
Package

Wooden case or as customer's requirements



How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification

2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc

3. PI Approval for all terms

4. Deposit 50% by T/T

5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms

6. Mould Design Our engineer will do DFM and send PPT to customers for approval

7. Mould making We start to make mould after customers confirmed the drawing

8. Mold Testing We will express trial samples to customers by DHL for confirmation

9. Mould repair We will modify the mould according to customer’s feedback
 ↓
10. Mould approval Express trial samples by DHL again till products approval

11. Balance payment 50% by T/T before delivery

12. Delivery Delivery by sea or air, all documents as customer required



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.





FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

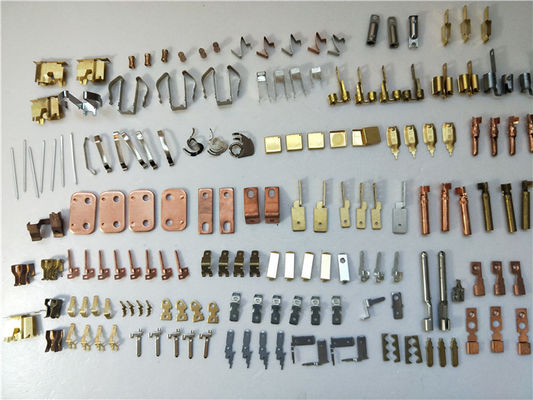

Stamping die Shows:

Terminal Metal Stamping Mould Multy - Cavities Modular Switches Sockets Connector 0
