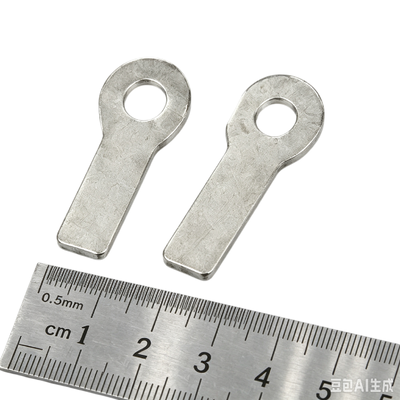

Precision Stamped Single-Hole Flat Terminal Lug with High Conductivity and Customizable Dimensions
  • name
  • name
  • name
  • name

Precision Stamped Single-Hole Flat Terminal Lug with High Conductivity and Customizable Dimensions

MOQ: 10000pcs
Standard Packaging: Wooden crate packaging, moisture and shock resistant, each mold set packed separately
Delivery Period: 25-35 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CN
Brand Name
METS
Project:
OEM Precision CNC Machining
Business Type:
Manufacturing Factory
Heattreatment:
Available On Request
Stamping Parts:
Based On The Information You Provided
Finishing:
Polishing
Packages:
Carton Or Wooden Case
Material Thickness:
0.2-0.5mm
Drawing:
Received 2D/3D , CAD , PFD
Minimum Order Quantity:
10000pcs
Packaging Details:
Wooden crate packaging, moisture and shock resistant, each mold set packed separately
Delivery Time:
25-35 work days
Payment Terms:
T/T
Highlight:

Precision Stamped Single-Hole Flat Terminal Lug

,

High Conductivity Electrical Terminal Lug

,

Customizable Dimensions Flat Terminal

Product Description
Precision Durable Single-Hole Flat Terminal Lugs for Electrical Wiring

Precision-manufactured electrical connection components designed to provide secure, stable, and low-resistance connections between wires, cables, electrical devices, and conductive components.

METS manufactures custom single-hole flat terminal lugs using precision metal stamping, punching, bending, forming, and secondary processing. The flat terminal structure provides a convenient mounting surface, while the single-hole design allows secure fastening using screws, bolts, or other suitable methods.

Key Product Features
Precision stamped single-hole terminal lug
Flat contact surface for secure electrical connection
High conductivity copper and brass material options
Custom hole diameter and terminal dimensions
Tin, nickel, silver, and gold plating available
Excellent dimensional consistency
Smooth edges and controlled burrs
Suitable for crimping, screw fastening, or custom assembly
Progressive die and single-hit stamping available
OEM/ODM customization
Suitable for prototypes and mass production
100% inspection available for critical applications
Technical Parameters
Parameter Specification
Product Name Single-Hole Flat Terminal Lug
Product Type Electrical Terminal Lug / Flat Terminal
Application Electrical Wiring, Cable Connection, Power Distribution
Manufacturing Process Precision Stamping, Punching, Bending, Forming
Material Copper, Brass, Phosphor Bronze, Beryllium Copper, Stainless Steel
Common Brass Grades H62 / H65 or Customized
Thickness 0.2-3.0 mm, Customized
Hole Diameter Customized
Overall Length Customized
Terminal Width Customized
Surface Treatment Tin Plating, Nickel Plating, Silver Plating, Gold Plating, Bare
Tolerance Up to ±0.01 mm for suitable designs
Contact Type Flat / Ring / Custom
Mounting Method Screw, Bolt, Crimp, Custom
Tooling Progressive Die / Compound Die / Single-Hit Tool
Inspection Dimensional, Visual and Functional Inspection
Drawing Format PDF, DWG, IGS, STEP
OEM/ODM Supported
Lead Time 7-15 Days for Suitable Production Projects
Delivery By Sea, Air or Express
Packaging Export Carton, PE Bag, Tray or Customized Packaging

Actual specifications depend on the customer's drawing, material, application, production volume, and required tolerance.

High-Performance Electrical Connection

A terminal lug may appear to be a simple stamped metal component, but its geometry and material properties directly influence the reliability of the final electrical connection.

For electrical wiring applications, important factors include:

  • Electrical conductivity
  • Contact resistance
  • Material thickness
  • Hole diameter
  • Flatness
  • Contact area
  • Crimping performance
  • Fastening strength
  • Corrosion resistance
  • Dimensional consistency

METS focuses on these factors during tooling development and production. For copper and brass terminal lugs, material can be selected according to the required combination of conductivity, mechanical strength, formability, and corrosion resistance.

Precision Stamping Manufacturing

METS manufactures single-hole flat terminal lugs using precision stamping technology designed for repeatable production.

Material Preparation
Die Design
Tool Manufacturing
Trial Stamping
First Article Inspection
Mass Production
Surface Treatment
Final Inspection
Packaging
Material Options

Copper: Excellent electrical conductivity for low resistance applications

Brass: Balanced combination of conductivity, strength, and formability

Phosphor Bronze: Good conductivity with strength and spring characteristics

Beryllium Copper: High strength, conductivity, and elastic performance

Stainless Steel: Mechanical strength and corrosion resistance

Surface Treatment Options
Tin Plating: Good conductivity, solderability, and corrosion protection
Nickel Plating: Improved surface hardness and wear resistance
Silver Plating: Excellent electrical conductivity and contact performance
Gold Plating: Superior corrosion resistance and stable contact performance
Bare Metal: Cost-effective for suitable environmental conditions
Applications
Electrical Wiring Systems
Control Cabinets
Power Distribution
Automotive Electrical Systems
Industrial Equipment
Home Appliances
Electronics
Quality Control
  • Raw Material Inspection
  • Tooling Inspection
  • First Article Inspection
  • In-Process Inspection
  • Surface Treatment Inspection
  • Final Inspection

100% inspection available before shipment for critical applications.

Frequently Asked Questions
What is a single-hole flat terminal lug?
A conductive metal component with a flat contact area and one mounting hole, used to connect wires or cables to electrical devices, busbars, grounding points, or other conductive structures.
What materials can be used for single-hole terminal lugs?
Common materials include copper, brass, phosphor bronze, beryllium copper, and stainless steel. Selection depends on conductivity, mechanical strength, corrosion resistance, and application conditions.
Can you customize the hole diameter?
Yes. Hole diameter, position, terminal width, overall length, and material thickness can all be customized according to your specifications.
What surface treatments are available?
Tin plating, nickel plating, silver plating, gold plating, and bare-metal finishes are available based on application requirements.
Can you manufacture terminal lugs according to our drawing?
Yes. METS supports OEM/ODM production based on PDF, DWG, IGS, STEP, 3D CAD files, technical specifications, or physical samples.
