Product Details:
|
| Type: | Stamping Parts | Service: | Screwing |
|---|---|---|---|
| Material: | Cold Roll Steel | Machine: | Punching Machine |
| Tolerance: | ±0.02mm | Production Method: | Progressive Die Single Hit |
| Processing Way: | Stamping | ||
| High Light: | progressive die stamping,metal press dies,Electrical Contact Relay Metal Stamping Parts |
||

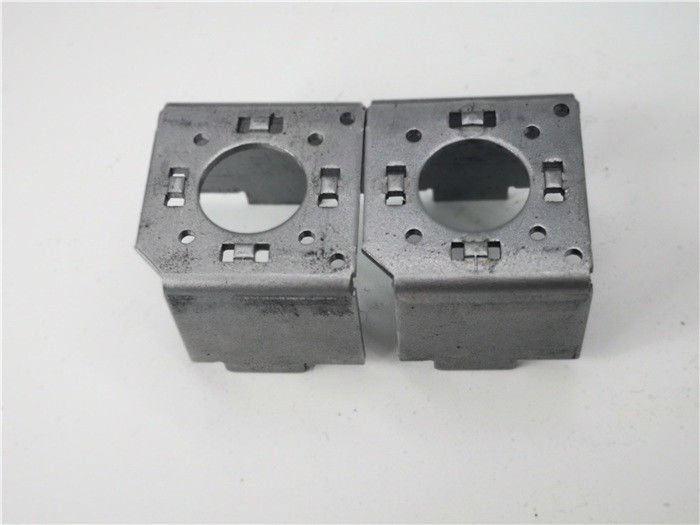

Pressional electrical contact relay metal stamping parts,Metal punching
Electrical relays and contactors use a low level control signal to switch a much higher voltage or current supply using a numer of different contact arrangements.
Thus far we have seen a selection of Input devices that can be used to detect or “sense” a variety of physical variables and signals and are therefore called Sensors. But there are also a variety of electrical and electronic devices which are classed as Output devices used to control or operate some external physical process. These output devices are commonly called Actuators.
Actuators convert an electrical signal into a corresponding physical quantity such as movement, force, sound etc. An actuator is also classed as a transducer because it changes one type of physical quantity into another and is usually activated or operated by a low voltage command signal. Actuators can be classed as either binary or continuous devices based upon the number of stable states their output has.
For example, a relay is a binary actuator as it has two stable states, either energised and latched or de-energised and unlatched, while a motor is a continuous actuator because it can rotate through a full 360o motion. The most common types of actuators or output devices are Electrical Relays, Lights, Motors and Loudspeakers.
We saw previously that solenoids can be used to electrically open latches, doors, open or close valves, and in a variety of robotic and mechatronic applications, etc. However, if the solenoid plunger is used to operate one or more sets of electrical contacts, we have a device called a relay that is so useful it can be used in an infinite number of different ways and in this tutorial we will look at Electrical Relays.
Electrical Relays can also be divided into mechanical action relays called “Electromechanical Relays” and those which use semiconductor transistors, thyristors, triacs, etc, as their switching device called “Solid State Relays” or SSR’s.
And we center metal parts,we can punch as your require.
| General Gapabilities | Production stamping,punching ,stamping die,tooling,Prototype |
| Production Method | Progressive Die,Single Hit |
| Stamping Features | Blanking,Deep Draw,Countersunk,Coining |
| Press Range | 35 tons to 160 tons |
| Part Length | Up to 500mm |
| Part Width | Up to 400mm |
| Part Material Thickness | 0.1mm in to 5mm |
| Production Volume | High Volume,Large Run,Long Run |
| Additional Services Provided | Assembly,Washing,Deburring,Coating,Heat Treating |
| Industry Focus | Transportation,Agricultural,Consumer Products,Bracket Markets,Service Industries |
| File Formats | AutoCAD (dwg,dxf),ProE,UG,iges,Initial Graphics Exchange Specification,pdf,JPG |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.So the metal stamping parts is better that other factories.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
