Tinplate Bottom Cover Round Metal Tin Motor Cover

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Treatment:
Heat Treatment
Mould Life:
3 Million Strokes
Tolerance:
±0.05mm
Main Tooling Material:
SKH-51
Thickness:
0.5mm
Processing Way:
WEDM,CNC
Application:
Motor
Coating:
Zinc
Color:
Silver
Inner Diameter:
25mm
Number Of Laminations:
2
Outer Diameter:
50mm
Packaging:
Carton
Shape:
Round
Surface Treatment:
Electroplating
Width:
50mm
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

Tinplate Bottom Cover

,

Round Metal Tin Motor Cover

Product Description



Our Mets is an integrated enterprise including R&D, moulds making, manufacturing and marketing.we have complete production line, including gravity casting workshop, CNC machine workshop, polishing workshop, assembly workshop and testing center.





Tool&Die Material SKD11,DC53 ,45# steel,SKH-51,Cr12mov, P20, D20
Accuracy 0.002mm
Capacity Tool &die :30sets/month parts :1million /month
Design software 3D:PROE UG 2D: auto CAD
Surface Treatment Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,plating titanium
Test Equipment Hardness tester,Chemical analysis,Digital Measuring Projector
Thickness 0.1-10.0mm or other special available
Lead time 15-55 days according to products
Standard ANSI. API.BS.DIN.JIS.GB.etc
Equipment 1) Stamping machine 2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining. 3) integral CNC machineries & four machining centers, such as milling, broaching, drilling, turning, planning, grinding machinery and three-axle machining centers.
Productions Cover Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts



Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the Moter cover are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q:

  • Does this motor cover fit us


--- The motor cover is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

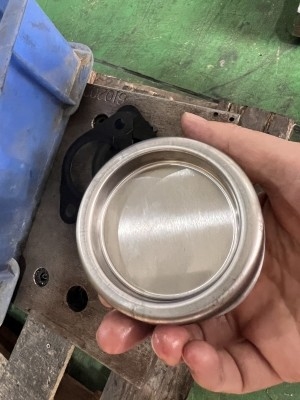

Tinplate Bottom Cover Round Metal Tin Motor Cover 0Tinplate Bottom Cover Round Metal Tin Motor Cover 1
