Drawing Progressive Deep Drawing Die Four Cavities Square Fine Layout Brass

Drawing Progressive Deep Drawing Die Four Cavities Square Fine Layout Brass

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Inspection Machine:
Micrometer
Mould Life:
1000 Million Times Of Strokes
Press Force:
45Ton
Tolerance:
±0.002
Main Tooling Material:
DC53
Precision:
0.001
Cavity:
Four Cavities
Thickness:
0.5mm
Processing Way:
WEDM
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

deep drawing mold

,

deep drawn components

Product Description

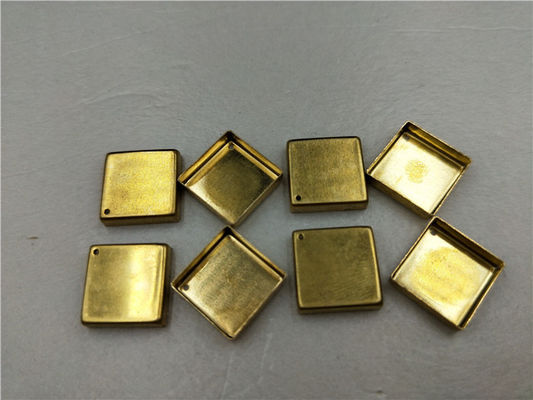

Fine layout brass square drawing progressive die



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.

Progressive drawing die As a die forms a shape from a flat sheet of metal, there is a need for the material to move into the shape of the die. The flow of material is controlled through pressure
applied to the blank and lubrication applied to the die or the blank. If the form moves too easily, wrinkles will occur in the part. To correct this, more pressure or less lubrication is applied to the blank to limit the flow of material and cause the material to stretch or thin. If too much pressure is applied, the part will become too thin and break.

Drawing metal is the science of finding the correct balance between wrinkles and breaking to achieve a successful part.

General Draw Radius Guideline

Metal Thickness Minimum Radius Maximum Radius
.015 to .020 .156 .250
.021 to .030 .187 .281
.031 to .040 .187 .312
.041 to .050 .187 .343
.051 to .062 .250 .375
.063 to .093 .312 .437
.094 to .125 .344 .468


As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.

Tool&Die​ Profile

Production Material Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy
Surface treatments Anodize or Nickel plating or as per customer's requirement
Processing methods Forgings, CNC milling and turning, Grinding, casting, Broaching, etc.
Heat treatment capability Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening
Processing machine CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments.
Inspection machine Projector, Caliper, Universal testing machine, Surfagauge and screw gauge
Tolerance 0.02mm
shipping 5--10 work days after received order and deposit
Payment Terms T/T or L/C
Main Export Markets North America, Europe, Mid East, Asia, Australia, Central/South America, etc
Application Vehicle, Car, Electronic components, Household, Hardware, etc.



FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM





products
PRODUCTS DETAILS
Drawing Progressive Deep Drawing Die Four Cavities Square Fine Layout Brass
MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Inspection Machine:
Micrometer
Mould Life:
1000 Million Times Of Strokes
Press Force:
45Ton
Tolerance:
±0.002
Main Tooling Material:
DC53
Precision:
0.001
Cavity:
Four Cavities
Thickness:
0.5mm
Processing Way:
WEDM
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light

deep drawing mold

,

deep drawn components

Product Description



Fine layout brass square drawing progressive die



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.

Progressive drawing die As a die forms a shape from a flat sheet of metal, there is a need for the material to move into the shape of the die. The flow of material is controlled through pressure
applied to the blank and lubrication applied to the die or the blank. If the form moves too easily, wrinkles will occur in the part. To correct this, more pressure or less lubrication is applied to the blank to limit the flow of material and cause the material to stretch or thin. If too much pressure is applied, the part will become too thin and break.

Drawing metal is the science of finding the correct balance between wrinkles and breaking to achieve a successful part.

General Draw Radius Guideline

Metal Thickness Minimum Radius Maximum Radius
.015 to .020 .156 .250
.021 to .030 .187 .281
.031 to .040 .187 .312
.041 to .050 .187 .343
.051 to .062 .250 .375
.063 to .093 .312 .437
.094 to .125 .344 .468


As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.

Tool&Die​ Profile

Production Material Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy
Surface treatments Anodize or Nickel plating or as per customer's requirement
Processing methods Forgings, CNC milling and turning, Grinding, casting, Broaching, etc.
Heat treatment capability Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening
Processing machine CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments.
Inspection machine Projector, Caliper, Universal testing machine, Surfagauge and screw gauge
Tolerance 0.02mm
shipping 5--10 work days after received order and deposit
Payment Terms T/T or L/C
Main Export Markets North America, Europe, Mid East, Asia, Australia, Central/South America, etc
Application Vehicle, Car, Electronic components, Household, Hardware, etc.



FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
