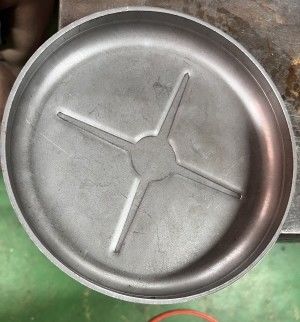

Auto parts, stretch parts, thick stretch forming parts

Products

Auto parts, stretch parts, thick stretch forming parts

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	Wooden case without need of fumigation
Delivery Period:	7days-35days
Payment Method:	TT,LC
Supply Capacity:	25 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

XIAMEN.CHINA

Brand Name

METS

Type Of Die:

Progressive Die

Material:

Steel

Mould Life:

200000-400000 Shots

Press Force:

110 Ton

Tolerance:

±0.1mm

Main Tooling Material:

DC53,Cr12Mov、Cr12、

Precision:

0.005MM

Cavity:

One Row

Thickness:

Customized

Processing Way:

WEDM,Grinding

Application:

Automotive Parts

Drawing Format:

CAD/PDF/DWG/IGS/STP

Lead Time:

7-15 Days

MOQ:

1 Piece

OEM/ODM:

Acceptable

Package:

Wooden Case

Processing Type:

Deep Drawing

Shape:

Round

Size:

Customized

Surface Treatment:

Polishing

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Wooden case without need of fumigation

Delivery Time:

7days-35days

Payment Terms:

TT,LC

Supply Ability:

25 sets per month

Highlight:

thick stretch forming auto parts

deep drawing die parts

stretch forming auto components

Product Description

Precision deep drawing stamping die for shielding case,stamping dust cover,sensor

shell,reactor shell,electronic plug-in

As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.

Tool&Die Profile

Tool&Die Material	SKD11 DC53 45# steel Cr12mov P20
Accuracy	0.002mm
Capacity	Tool &die :30 sets/month part :1million /month
Design software	3D: Pro-E

	2D: auto CAD
Surface Treatment	Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,
Test Equipment	Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,
Test Equipment	universal testing machine & Coordinate-Detector
Thickness	0.1-2.0mm or other special available
Lead time	15-55 days according to products Max: 2 Weeks (On Initial Order)
Standard	ANSI. API.BS.DIN.JIS.GB.etc
Equipment	1) Stamping machine
	2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.
	3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,
	turning, planning, grinding machinery and three-axle machining centers.
Productions Cover	Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts

How to start a new mould business?

1. Quote	According to samples/picture/design, 2/3 D drawing and specification
↓
2. Discussion	Mould core/base material, cavity number, runner type, price, payment, etc
↓
3. PI	Approval for all terms
↓
4. Deposit	50% by T/T
↓
5. Product Design	Our engineer will check product drawing, and pick up the unreasonable terms
↓
6. Mould Design	Our engineer will do DFM and send PPT to customers for approval
↓
7. Mould making	We start to make mould after customers confirmed the drawing
↓
8. Mold Testing	We will express trial samples to customers by DHL for confirmation
↓
9. Mould repair	We will modify the mould according to customer’s feedback
↓
10. Mould approval	Express trial samples by DHL again till products approval
↓
11. Balance payment	50% by T/T before delivery
↓
12. Delivery	Delivery by sea or air, all documents as customer required

FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
