| MOQ: | 1 piece |
| Price: | Negotiable |
| Standard Packaging: | PVC bag, wooden case,carton |
| Delivery Period: | 5-20days |
| Payment Method: | TT,LC |
| Supply Capacity: | 1000000 |

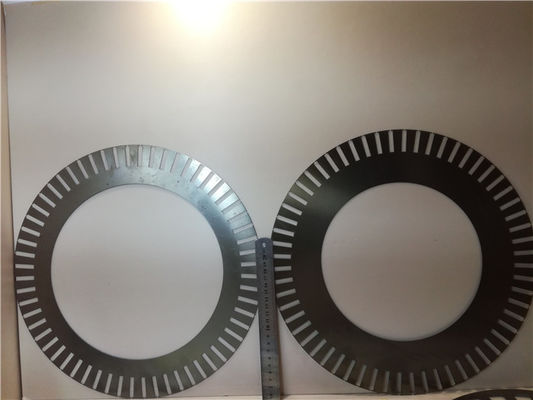

Stamping Stator Core Laminations Epoxy Insulation Board
Application
Motor, Generator, Electric Engine, Dynamo, Transformer, Electromagnetic Switch, Reactor, Magnetic Amplifiers, Ballast, Relay and other industry usage.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Stator and rotor core profile
| Part thickness | 0.35-0.5-0.65mm | ||
| Product Name | Stamping motor core stator , rotor,lamination sheets | ||
| Part material | Silicon steel | ||
| Grade | B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum | ||
| Die type | Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect. | ||
| cavity | Single / Multi per request | ||
| Stacking | loose sheets,or Auto interlocked Stacking | ||
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
| Die use | Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc. | ||
| Machinery Equipment | Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine, | ||
| Die precision | High precision machining, minimum 0.003mm | ||
| Trial out press | 25~160T | ||
| First trial sample | 5-10 sets free |
||
How to start a new mould business?
| 1. Quote | According to samples/picture/design, 2/3 D drawing and specification |
| ↓ | |
| 2. Discussion | Mould core/base material, cavity number, runner type, price, payment, etc |
| ↓ | |
| 3. PI | Approval for all terms |
| ↓ | |
| 4. Deposit | 50% by T/T |
| ↓ | |
| 5. Product Design | Our engineer will check product drawing, and pick up the unreasonable terms |
| ↓ | |
| 6. Mould Design | Our engineer will do DFM and send PPT to customers for approval |
| ↓ | |
| 7. Mould making | We start to make mould after customers confirmed the drawing |
| ↓ | |
| 8. Mold Testing | We will express trial samples to customers by DHL for confirmation |
| ↓ | |
| 9. Mould repair | We will modify the mould according to customer’s feedback |
| ↓ | |
| 10. Mould approval | Express trial samples by DHL again till products approval |
| ↓ | |
| 11. Balance payment | 50% by T/T before delivery |
| ↓ | |
| 12. Delivery | Delivery by sea or air, all documents as customer required |
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
| By Express | By Air | By Sea | |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.
|
|
