| MOQ: | 1 piece |
| Price: | Negotiable |
| Standard Packaging: | PVC bag, wooden case,carton |
| Delivery Period: | 5-20days |
| Payment Method: | TT,LC |
| Supply Capacity: | 1000000 |

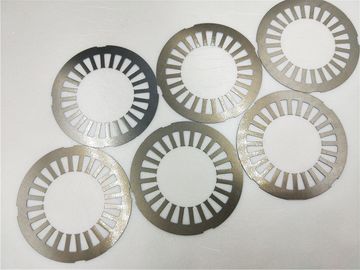

Customized Laminated Generator Stator Laminations For Water Pump
Introduction
1. Dimension: OD 120mm,167mm,210mm or customized dimension , according to customer's drawing.
2. Material: silicon steel or any other steel customer request.
3. Connection technology: Interlock , welding, riveting Etc.
4. For The actual dimensional of diameter and slots,please check with us online or by email.
Stator and rotor core profile
| Part thickness | 0.35-0.5-0.65mm | ||
| Product Name | Stamping motor core stator , rotor,lamination sheets | ||
| Part material | Silicon steel | ||
| Grade | B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum | ||
| Die type | Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect. | ||
| cavity | Single / Multi per request | ||
| Stacking | loose sheets,or Auto interlocked Stacking | ||
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
| Die use | Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc. | ||
| Machinery Equipment | Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine, | ||
| Die precision | High precision machining, minimum 0.003mm | ||
| Trial out press | 25~160T | ||
| First trial sample | 5-10 sets free |
||
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
| By Express | By Air | By Sea | |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
1.Q: Are you a factory or trading company?
A: We are a factory,a professional metal stamping die and hardware stamping manufactuer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen, Fujian Province, China,We warmly welcome all our clients, from home or abroad, to visit us!
3.Q: What is the material of your tooling?
A: The material are D2,YG15,DC53,SKD11,D2,SKH-9,SKH-51
4.Q: The maximum press your fatory have available ?
A: There are 25T,35T,45T,60T,80T,110T,160T punching machines in our factory.
5.Q: What about the machines of your factory?
A: Our factory owns a full set of Machining equipment, include large CNC machning center,Sodic EDM machning,import EDM-HS,Radial drilling machines,Milling machines,Grinders,three-D inspection etc.
6.Q: How does your factory do regarding quality control?
A: Quality is priority. METS people always attach great importance to quality controlling from the very beginning to the very end. All the moulds,the QC measure with three-D measuring equipments regularly.
Stamping die Shows:
|
|
