Product Details:
|
| Type: | Motor Stator Lamination Assembly | Service: | Assembly |
|---|---|---|---|
| Material: | M250-35A | Number Of Slot: | 4 |
| Finish: | Riveting | Processing Way: | Stamping |
| High Light: | Custom Motor Stator Lamination Assembly,Stamping Motor Stator Lamination Assembly,Stamping electric motor stator laminations |
||

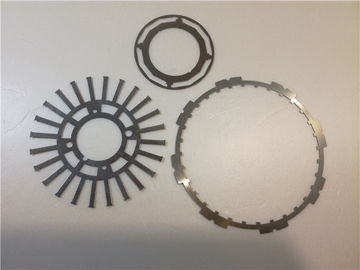

Tetragonum precision lanination statorblech with narrow tooth width stamping sheets
Components stamping we produce through our customs precision metals stamping including:
Electronic connectors,Heat sinks,Transfer stampings,Printer cartridge blades,Medical components,Die insert ,Furniture parts,Sensor components,Thrust washers,Spring metal parts
We have invested in a range of capabilities to lower your cost, speed new parts development, and capability with your needs. Our press capabilities range from small part to big part.
Our quality team assures compliance and works with our production team to assure conformance with your requirements, our internal standards, and the requirements of our various external certification bodies.
Our production and quality QC measuring with optical comparators, multiple high-precision Zeiss measurement machines, and high-precision gauge construction and maintenance capabilities.To make sure customer demand.
| Part thickness | 0.35-0.5-0.65mm | ||
| Product Name | Stamping motor core stator , rotor,lamination sheets | ||
| Part material | Silicon steel | ||
| Grade | B35A300,B50A470,M530-65A,B50A600,B50A800 .M270-50A,M530-65A,M800-50A,50CS1300, 50CS800, 50CS600, 50CS470, 35CS550steel,copper,aluminum | ||
| Die type | Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect. | ||
| cavity | Single / Multi per request | ||
| Stacking | loose sheet,or Auto interlocked | ||
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
| Die use | Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc. | ||
| Machinery Equipment | Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine, | ||
| Die precision | High precision machining, minimum 0.003mm | ||
| Trial out press | 25~160T | ||
| First trial sample | 5-10 sets free | ||
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.So the metal stamping parts is better that other factories.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
