Aluminium Deep Drawing Progressive Die Automotive Parts

Aluminium Deep Drawing Progressive Die Automotive Parts

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Deep Drawing Progressive Die
Material:
Aluminium
Mould Life:
500000-600000 Shots
Tolerance:
±0.03mm
Main Tooling Material:
DC53
Precision:
0.01mm
Thickness:
1mm
Processing Way:
WEDM,cnc
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

Aluminium Deep Drawing Progressive Die

,

Automotive Deep Drawing Progressive Die

,

Aluminium progressive stamping die

Product Description

China supplier metal stamping die /deep draw die for metal deep draw parts for alumium sieve



Progressive drawing die As a die forms a shape from a flat sheet of metal, there is a need for the material to move into the shape of the die. The flow of material is controlled through pressure
applied to the blank and lubrication applied to the die or the blank. If the form moves too easily, wrinkles will occur in the part. To correct this, more pressure or less lubrication is applied to the blank to limit the flow of material and cause the material to stretch or thin. If too much pressure is applied, the part will become too thin and break.

Drawing metal is the science of finding the correct balance between wrinkles and breaking to achieve a successful part.



General Draw Radius Guideline

Metal Thickness Minimum Radius Maximum Radius
.015 to .020 .156 .250
.021 to .030 .187 .281
.031 to .040 .187 .312
.041 to .050 .187 .343
.051 to .062 .250 .375
.063 to .093 .312 .437
.094 to .125 .344 .468



As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.



Tool&Die​ Profile

Part thickness 0.5-2mm
Spare parts for Dies and insets Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die type Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part material Cold rolled steel,stainless steel,copper,aluminum
Machinery Equipment Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~180T
First trial sample 10 sets free



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification

2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc

3. PI Approval for all terms

4. Deposit 50% by T/T

5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms

6. Mould Design Our engineer will do DFM and send PPT to customers for approval

7. Mould making We start to make mould after customers confirmed the drawing

8. Mold Testing We will express trial samples to customers by DHL for confirmation

9. Mould repair We will modify the mould according to customer’s feedback
 ↓
10. Mould approval Express trial samples by DHL again till products approval

11. Balance payment 50% by T/T before delivery

12. Delivery Delivery by sea or air, all documents as customer required




Stamping die details:

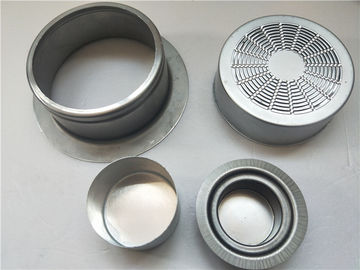

Aluminium Deep Drawing Progressive Die Automotive Parts 0
