MOQ: | 1 Set |
Price: | Negotiable |
Standard Packaging: | Wooden case without need of fumigation |
Delivery Period: | 7days-35days |
Payment Method: | TT,LC |
Supply Capacity: | 25 sets per month |

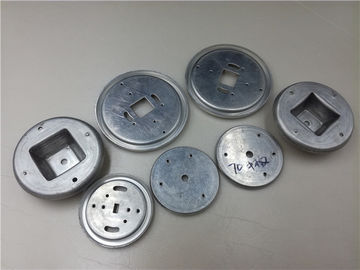

WEDM CNC Metal Deep Drawing Die LED Cup Cooling Fin
Deep Drawing Die is a sheet metal stamping parts and precision springs manufacturing, professional in customization metal components for automobiles, consumer electronics, office equipment, electric industries, energy, telecommunications, and home furnishing industries.
Why us?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service
Progressive drawing die As a die forms a shape from a flat sheet of metal, there is a need for the material to move into the shape of the die. The flow of material is controlled through pressure
applied to the blank and lubrication applied to the die or the blank. If the form moves too easily, wrinkles will occur in the part. To correct this, more pressure or less lubrication is applied to the blank to limit the flow of material and cause the material to stretch or thin. If too much pressure is applied, the part will become too thin and break.
Drawing metal is the science of finding the correct balance between wrinkles and breaking to achieve a successful part.
General Draw Radius Guideline
Metal Thickness | Minimum Radius | Maximum Radius |
.015 to .020 | .156 | .250 |
.021 to .030 | .187 | .281 |
.031 to .040 | .187 | .312 |
.041 to .050 | .187 | .343 |
.051 to .062 | .250 | .375 |
.063 to .093 | .312 | .437 |
.094 to .125 | .344 | .468 |
As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.
Tool&Die Profile
Part thickness | 0.5-2mm | ||
Spare parts for Dies and insets | Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on | ||
Die type | Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect. | ||
Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
Die use | Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts) | ||
Part material | Cold rolled steel,stainless steel,copper,aluminum | ||
Machinery Equipment | Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine, | ||
Die precision | High precision machining, minimum 0.003mm | ||
Trial out press | 25~180T | ||
First trial sample | 10 sets free |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die details:
|
