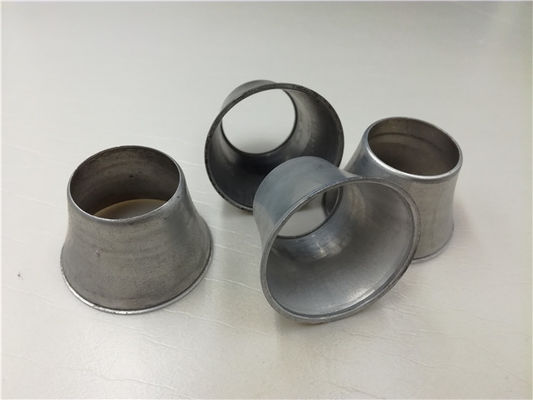

SKD61 SKH9 Deep Drawing Sheet Metal Parts LED Bulb Cup Housing
Application
Deep Drawing Sheet Metal Parts are a wise economical choice for the steel industry as well as the nonferrous industry in applications such as bunching or stranding large diameter cables. . It has been used in the wire industry for many years.
General Draw Radius Guideline
| Metal Thickness | Minimum Radius | Maximum Radius |
| .015 to .020 | .156 | .250 |
| .021 to .030 | .187 | .281 |
| .031 to .040 | .187 | .312 |
| .041 to .050 | .187 | .343 |
| .051 to .062 | .250 | .375 |
| .063 to .093 | .312 | .437 |
| .094 to .125 | .344 | .468 |
As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.
Tool&Die Profile
| Part thickness | 0.5-2mm | ||
| Spare parts for Dies and insets | Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on | ||
| Die type | Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect. | ||
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
| Die use | Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts) | ||
| Part material | Cold rolled steel,stainless steel,copper,aluminum | ||
| Machinery Equipment | Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine, | ||
| Die precision | High precision machining, minimum 0.003mm | ||
| Trial out press | 25~180T | ||
| First trial sample | 10 sets free |
||
| By Express | By Air | By Sea | |
| West Europe | 3-5 days | 4-6 days | 22-30days |
| USA &Canada | 3-4days | 5-6 days | 16-27days |
| South Asia | 3-5 days | 3-7 days | 12-20 days |
| Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
| Russia | -------- | --------- | 30-40 days |
Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die details:
