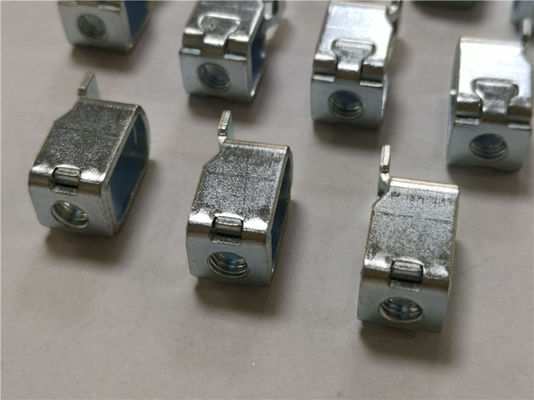

Precision Metal Stamping For Terminal Block Clamp M2.5 M3 M5 M6

Precision Metal Stamping For Terminal Block Clamp M2.5 M3 M5 M6

MOQ: 1
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Model Number
P001
Type Of Die:
Progressive Die
Material:
Iron
Press Force:
35Ton
Tolerance:
±0.2mm
Surface Treatment:
Cr12Mov
Thickness:
1.5mm
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

M2.5 Terminal Block Clamp

,

Metal Stamping Terminal Block Clamp

,

Cr12Mov Metal Stamping Parts

Product Description

Precision Metal Stamping For Terminal Block Clamp M2.5,M3,M5,M6





Metal Stamping Die Capability


· Die Insert Tolerence: +/-0.005mm


· Stamping Speed: 1000SPM/min


· Tooling Life: 50-300 million times



METS are doing customized precision metal stamping part . METS has rich experience on this range, and there are many good ideas and suggestions have been provided to our customers to help them to design a realizable products during these years. METS provides good service to try to satisfy each customer's requirement. After goods shipped, we will provide detailed packing picture and document for our customers’ reference and track your good until you received it.
Riveting die is a sturdy and attractive way to make one part joins in custom metal . This tooling add one vibrating disk.The center small parts will be in the progressive die by vibrating disk. Here you'll find this riveting tools is easy riveting and the speed is very fast,neerly 120ps/munite.

Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.
Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die
Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace

Tool&Die​ Profil

Part thickness 0.5-2mm
Spare parts for Dies and insets Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die type Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part material Cold rolled steel,stainless steel,copper,aluminum
Machinery Equipment Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~180T
First trial sample

5-10 sets free






How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification

2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc

3.PI Approval for all terms

4. Deposit 50% by T/T

5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms

6. Mould Design Our engineer will do DFM and send PPT to customers for approval

7. Mould making We start to make mould after customers confirmed the drawing

8.Mold Testing We will express trial samples to customers by DHL for confirmation

9. Mould repair We will modify the mould according to customer’s feedback
 ↓
10. Mould approval Express trial samples by DHL again till products approval

11. Balance payment 50% by T/T before delivery

12. Delivery Delivery by sea or air, all documents as customer required



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days



Packing:
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.


FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.003mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.004mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM


Stamping die Shows:

Precision Metal Stamping For Terminal Block Clamp M2.5 M3 M5 M6 0
