|Product Name:||Power Press Dies||Material of Die:||D2, SKH-9, SKD11, A3|
|Mould Life:||1,000,000-3,000,000 Shots||Press Force:||30Ton|
|Place Of Origin:||China .xiamen||Thickness:||1.2mm|
1.2mm Metal Stamping Die,
D2 Metal Stamping Die,

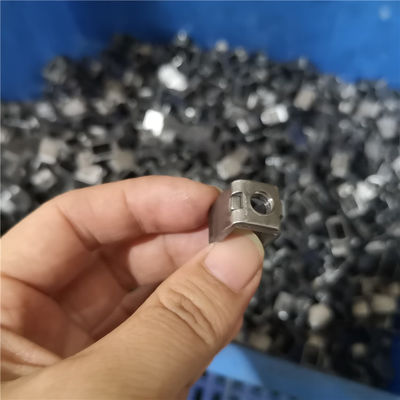

Terminal Clamping Metal Stamping Parts
Custom Metal Stamps For Metal,Forming And Punching For Terminal Clamping
Metal Stamping Die Capability
· Die Insert Tolerence: +/-0.008mm
· Stamping Speed: 1000SPM/min
· Tooling Life: 60-300 million times
METS specialize in made-to-order metal processing and have more than 2000 achievements up to today. We deeply understand clients' issue from QCD point of view and help solving it through a whole process, choosing appropriate materials, processings, packaging and shipping.
Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.
Metal Stamped Parts & Components
We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.
Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:
|Spare parts for Dies and insets||Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on|
|Die type||Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.|
|Die material||YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,|
|Die use||Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)|
|Part material||Cold rolled steel,stainless steel,copper,aluminum|
|Machinery Equipment||Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,|
|Die precision||High precision machining, minimum 0.003mm|
|Trial out press||25~180T|
|First trial sample||5-10 sets free|
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
|By Express||By Air||By Sea|
|West Europe||3-5 days||4-6 days||22-30days|
|USA &Canada||3-4days||5-6 days||16-27days|
|South Asia||3-5 days||3-7 days||12-20 days|
|Japan&South Korea||2-3 days||3-4 days||10-13 days|
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We also know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

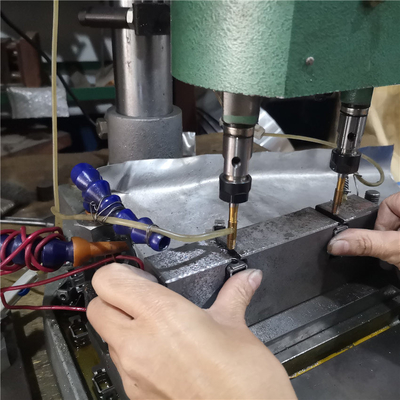

Stamping die Shows:
