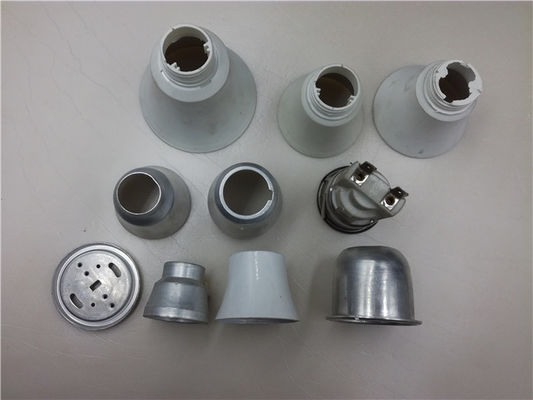

DC53 Cr12Mov Deep Drawing Die Led Cup Holder Lights Housing
Stamping Capability
A: The min. pitch: 0.5mm
B: Highest stamping speed: 600SPM/min or more
C: Precision: ±0.003mm
D: Rate of hole diameter and thickness 0.85:1
E: Stamping material thickness:0.05-2.0mm
F: zero or less loss of material use.
General Draw Radius Guideline
| Metal Thickness | Minimum Radius | Maximum Radius |
| .015 to .020 | .156 | .250 |
| .021 to .030 | .187 | .281 |
| .031 to .040 | .187 | .312 |
| .041 to .050 | .187 | .343 |
| .051 to .062 | .250 | .375 |
| .063 to .093 | .312 | .437 |
| .094 to .125 | .344 | .468 |
As a general rule, 3 times of metal thickness can be used for a start point. If the part shows evidence of cracked, the tool has been machined metal safe, thus allowing for additional radius. The part specification may require a small radius under the flange that may be achieved with one draw, as opposed to several draws to size the radius.
Tool&Die Profile
| Part thickness | 0.5-2mm | ||
| Spare parts for Dies and insets | Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on | ||
| Die type | Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect. | ||
| Die material | YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2, | ||
| Die use | Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts) | ||
| Part material | Cold rolled steel,stainless steel,copper,aluminum | ||
| Machinery Equipment | Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine, | ||
| Die precision | High precision machining, minimum 0.003mm | ||
| Trial out press | 25~180T | ||
| First trial sample | 10 sets free |
||
