|Tolerance:||±0.02mm||Production Method:||Progressive Die Single Hit|
progressive die stamping,
metal press dies,
Automotive Punching Tools For Stamping

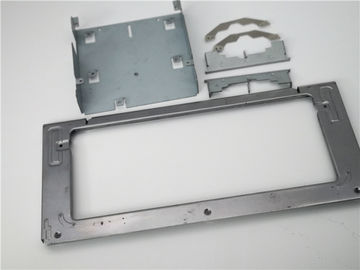

Precision metal automotive punching / stamping parts from china
Components stamping we produce through our customs precision metals stamping including:
Electronic connectors,Heat sinks,Transfer stampings,Printer cartridge blades,Medical components,Die insert ,Furniture parts,Sensor components,Thrust washers,Spring metal parts
We have invested in a range of capabilities to lower your cost, speed new parts development, and capability with your needs. Our press capabilities range from small part to big part.
Our quality team assures compliance and works with our production team to assure conformance with your requirements, our internal standards, and the requirements of our various external certification bodies.
Our production and quality QC measuring with optical comparators, multiple high-precision Zeiss measurement machines, and high-precision gauge construction and maintenance capabilities.To make sure customer demand.
There are several steps in producing metal stamping. The first step is designing and manufacturing the actual tool used to create the product.
Let’s take a look at how this initial tool is created: Stock Strip Layout & Design: A designer uses is used to design the strip and determine dimensions, tolerances, feed direction, scrap minimization and more.
Tool Steel and Die Set Machining: CNC ensures a higher level of precision and repeatability for even the most complex dies. Equipment like 5-axis CNC mills and wire EDM machines can cut through hardened tool steels with extremely tight tolerances.
|Tool&Die Material||SKD11 DC53 45# steel Cr12mov P20|
|Capacity||Tool &die :30 sets/month part :1million /month|
|Design software||3D: Pro-E|
|2D: auto CAD|
|Surface Treatment||Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome,|
|Test Equipment||Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester,|
|universal testing machine & Coordinate-Detector|
|Thickness||0.1-2.0mm or other special available|
|Lead time||15-55 days according to products Max: 2 Weeks (On Initial Order)|
|Equipment||1) Stamping machine|
|2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining.|
|3) integral CNC machineries & four machining centers, such as milling, broaching, drilling,|
|turning, planning, grinding machinery and three-axle machining centers.|
|Productions Cover||Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts|
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.So the metal stamping parts is better that other factories.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
|By Express||By Air||By Sea|
|USA &Canada||2-3 days||5-6days||15-28days|
|West Europe||4-7 days||7-10 days||26-35days|
|South Asia||3-5 days||6-9 days||12-25 days|
|Japan&South Korea||2-3 days||3-5 days||10-15 days|
