Printer Fitting Sheet Metal Progressive Die Metal Stamping Rings 1mm Thickness
Products

Metal Stamping Dies

Sheet Metal Progressive Die

Sheet Metal Bending Dies

Metal Stamping Parts

Brass Stamping Parts

Stator Core Laminations

Terminal Block Parts

Deep Drawing Die

Metal Forming Dies

Automotive Stamping Dies

Metal Stamping Mold

PV Cable Clips

Metal Mounting Brackets
Contact Us
Contact Now
name
  • name
  • name
  • name

Printer Fitting Sheet Metal Progressive Die Metal Stamping Rings 1mm Thickness

MOQ: 1
Price: Negotiable
Standard Packaging: PVC bag, wooden case,carton
Delivery Period: 5-20 days
Supply Capacity: 1000000
Detail Information
Product Description
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Model Number
P001
Material:
Stainless Steel
Thickness:
1mm
Type:
Stamping Parts
Precision:
0.001mm
Specification:
Customized
Drawing format:
CAD
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
PVC bag, wooden case,carton
Delivery Time:
5-20 days
Supply Ability:
1000000
High Light:

progressive die stamping

,

metal press dies

Product Description
Printer Fitting metal bracket stamping parts , Rising metal circle , ring , round stamping parts , metal craft


Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



Metal stamping is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a shape. Stamping includes a variety of sheet-metal forming manufacturing processes, such as punching using a punching machine press or stamping press, blanking, embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the press produces the desired form on the sheet metal part, or could occur through a series of stages. The process is usually carried out on sheet metal, but can also be used on other materials, such as polystyrene. Progressive dies are commonly feed from a coil of steel, coil reel for unwinding of coil to a straightener to level the coil and then into a feeder which advances the material into the press and die at a predetermined feed length. Depending on part complexity, the number of stations in the die can be determined.

Stamping is usually done on cold metal sheet. See Forging for hot metal forming operations.



This stamping parts is for Auto parts with high precision.We supply including ordinary stamping, precision high-speed stamping, laser cutting,
drilling, tapping, CNC processing, laser welding, butt welding, argon arc welding, CNC turning, surface
grinder processing, cylindrical grinder processing, mirror polish processing, etc



1.Quote According to samples/picture/design, 2/3 D drawing and specification
↓ 　
2.Discussion Mould core/base material, cavity number, runner type, price, payment, etc
↓ 　
3.PI Approval for all terms
↓ 　
4. Deposit 50% by T/T
↓ 　
5.Product Design Our engineer will check product drawing, and pick up the unreasonable terms
↓ 　
6.Mould Design Our engineer will do DFM and send PPT to customers for approval
↓ 　
7.Mould making We start to make mould after customers confirmed the drawing
↓ 　
8.Mold Testing We will express trial samples to customers by DHL for confirmation
↓ 　
9. Mould repair We will modify the mould according to customer’s feedback
　 　
10. Mould approval Express trial samples by DHL again till products approval
↓ 　
11.Balance payment 50% by T/T before delivery
↓ 　
12.Delivery Delivery by sea or air, all documents as customer required

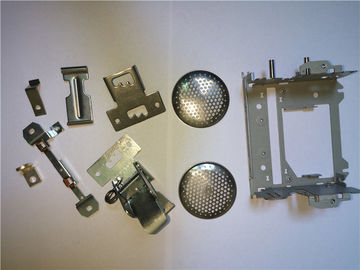

Details show:



Printer Fitting Sheet Metal Progressive Die Metal Stamping Rings 1mm Thickness 0



Our Service
Punching die design and process.
Punching die for household appliance, punching die for led light shield, punching die for electronic industry, electronics and appliances etc.
Tags:

metal press dies,

progressive die stamping,

stamping die parts
