stamping die parts,
progressive die stamping
A: The min. pitch: 0.5mm
B: Highest stamping speed: 600SPM/min or more
C: Precision: ±0.003mm
D: Rate of hole diameter and thickness 0.85:1
E: Stamping material thickness:0.05-2.0mm
F: zero or less loss of material use.
Metal stamping is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a shape. Stamping includes a variety of sheet-metal forming manufacturing processes, such as punching using a punching machine press or stamping press, blanking, embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the press produces the desired form on the sheet metal part, or could occur through a series of stages. The process is usually carried out on sheet metal, but can also be used on other materials, such as polystyrene. Progressive dies are commonly feed from a coil of steel, coil reel for unwinding of coil to a straightener to level the coil and then into a feeder which advances the material into the press and die at a predetermined feed length. Depending on part complexity, the number of stations in the die can be determined.
Stamping is usually done on cold metal sheet. See Forging for hot metal forming operations.
This stamping parts is for Auto parts with high precision.We supply including ordinary stamping, precision high-speed stamping, laser cutting,
drilling, tapping, CNC processing, laser welding, butt welding, argon arc welding, CNC turning, surface
grinder processing, cylindrical grinder processing, mirror polish processing, etc

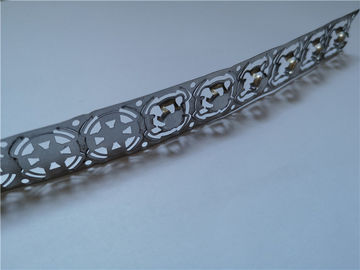

|Product Name||Metal stampings 304SS stainless steel drawing blanking drawn parts for shrapnel|
|Part material||copper, brass, metal, gold, bronze|
|Die type||Interlocked Progressive die ,Auto riveting progressive tool, stamping die,compound die, ect.|
|cavity||Single / Multi per request and need|
|Stacking||loose sheets,or Auto interlocked|
|Die material||DC53, SKH-9, SKH51, YG15,YG20,SKD11,D2,|
|Die use||Water pump, Industrial motor, Fan motor, Generator, Compressor and Car...etc.|
|Machinery Equipment||Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine, Precision flat milling, Saw machine, Punching machine,|
|Die precision||High precision machining, minimum 0.005mm|
|Trial out press||55~110T|
|First trial sample||10 pcs free|
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
