|Type Of Die:||Progressive Die||Material:||Silicon Steel|
|Mould Life:||3,500,000-4,000,000 Shots||Press Force:||35Ton|
|Tolerance:||±0.0025mm||Material of die:||Tungsten Steel|
|Cavity:||Two Cavities||Processing Way:||WEDM,CNC,Grinding|
electrical lamination stamping,
electrical steel laminations

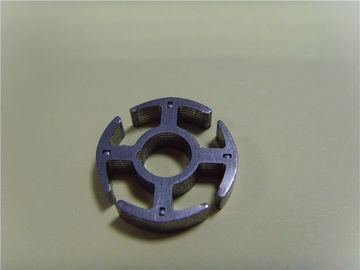

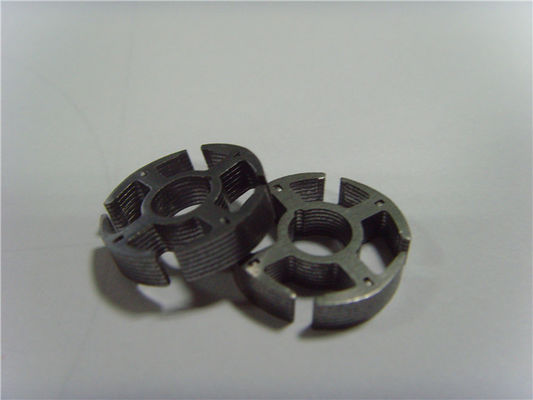

Stepping motor rotor precision progressive die with riveting point
Metal Stamping Die Capability
· Die Insert Tolerence: +/-0.005mm
· Stamping Speed: 1000SPM/min
· Tooling Life: 50-300 million times
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Riveting die is a sturdy and attractive way to make one part joins in custom metal . This tooling add one vibrating disk.The center small parts will be in the progressive die by vibrating disk. Here you'll find this riveting tools is easy riveting and the speed is very fast,neerly 120ps/munite.
Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.
Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die
Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace
|Production Material||Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy|
|Surface treatments||Anodize or Nickel plating or as per customer's requirement|
|Processing methods||Forgings, CNC milling and turning, Grinding, casting, Broaching, etc.|
|Heat treatment capability||Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening|
|Processing machine||CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments.|
|Inspection machine||Projector, Caliper, Universal testing machine, Surfagauge and screw gauge|
|shipping||5--10 work days after received order and deposit|
|Payment Terms||T/T or L/C|
|Main Export Markets||North America, Europe, Mid East, Asia, Australia, Central/South America, etc|
|Application||Vehicle, Car, Electronic components, Household, Hardware, etc.|
