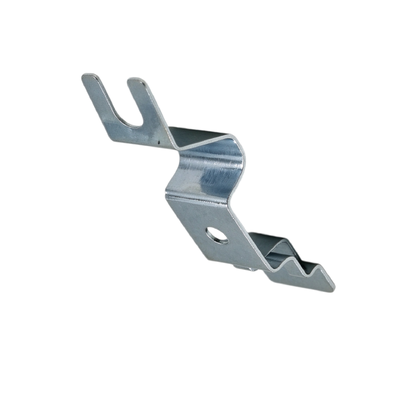

Custom Galvanized Sheet Metal Stamping and 65Mn Spring Steel Metal Stamping Parts

• Custom stamping based on customer drawings and specifications
• Multiple stamping operations, including punching, blanking, bending, and forming
• Material options for galvanized steel, carbon steel, and 65Mn spring steel
• Custom tooling solutions for prototypes and production orders
• Dimensional inspection and quality checks based on project requirements
• OEM manufacturing support for industrial applications

Our factory sheet metal stamping service is designed for customers who require metal parts with specific dimensions, shapes, mechanical properties, and surface finishes.

Using stamping dies and press equipment, flat metal sheets or coils can be processed into functional components through operations such as blanking, piercing, punching, bending, embossing, and forming. The appropriate process depends on the part geometry, material thickness, tolerance requirements, and production volume.

We support custom and non-standard stamping projects, helping customers manufacture components for equipment assembly, machinery, electrical products, automotive-related applications, and general industrial hardware.

Manufacture components according to 2D drawings, 3D CAD files, samples, or agreed technical specifications.

Produce defined external profiles, mounting holes, slots, and other functional features for assembly-ready components.

Create angles, flanges, tabs, ribs, and formed geometries according to the part design.

For suitable part geometries and production volumes, multiple operations can be integrated into a coordinated process to improve manufacturing efficiency and consistency.

Develop tooling strategies based on part complexity, material characteristics, dimensional requirements, and expected production demand.

• Repeatable part geometry for consistent assembly
• Efficient production for recurring and high-volume orders
• Flexible material and shape options
• Potential reduction in unit cost through optimized tooling
• Integration of multiple forming operations where technically feasible

Every project is evaluated individually to determine the appropriate process, tooling investment, and production method.

Galvanized steel is widely used in metal stamping applications where corrosion resistance and cost-effective manufacturing are important.

Our custom galvanized stamping solutions are suitable for components requiring defined mounting features, formed profiles, and protective zinc coatings. Depending on your design, we can evaluate galvanized sheet stamping or stamping followed by a suitable surface treatment.

• Zinc-coated steel options for improved corrosion resistance
• Custom shapes and dimensions based on engineering drawings
• Punching, blanking, bending, and forming capabilities
• Functional holes, slots, flanges, and mounting features
• Surface protection options based on application requirements
• Production planning for prototype validation and repeat orders

• Mounting brackets and support plates
• Electrical equipment housings and covers
• Machinery guards and fixing components
• Cabinet hardware and structural fittings
• Industrial connectors and fastening components
• General-purpose corrosion-resistant metal parts

The appropriate galvanized material depends on the required zinc coating, substrate grade, thickness, forming geometry, and service environment.

During stamping, excessive friction, sharp forming radii, and unsuitable process conditions may damage the coating or affect the final surface. We recommend evaluating the material and forming sequence together to help minimize coating damage and maintain part quality.

For applications exposed to moisture or outdoor conditions, corrosion protection should be assessed according to the intended environment. Cut edges, pierced holes, and formed areas may require particular attention.

65Mn is a manganese spring steel commonly considered for components requiring spring properties, wear resistance, and mechanical strength after appropriate processing.

We provide custom 65Mn spring steel stamping solutions for customers who need specially shaped spring components, clips, retainers, and other functional metal parts.

Material condition and heat-treatment requirements must be considered alongside the part geometry and intended function.

• Custom spring steel component manufacturing
• Material selection based on specified 65Mn requirements
• Stamping and forming according to approved drawings
• Support for functional features such as tabs, slots, and formed profiles
• Heat-treatment planning according to required mechanical properties
• Inspection based on agreed dimensional and functional criteria

• Spring clips and retaining clips
• Mechanical retainers and locking components
• Industrial spring elements
• Wear-resistant functional components
• Custom metal clips for machinery assemblies
• Selected automotive and mechanical hardware applications

65Mn spring steel is not a direct substitute for ordinary mild steel. Its hardness, ductility, forming behavior, and final spring performance depend on the specified material condition and processing route.

For demanding spring applications, our manufacturing review should consider:

• Material thickness and hardness condition
• Forming geometry and minimum bend radius
• Springback and dimensional compensation
• Heat-treatment requirements
• Target hardness and spring performance
• Surface condition and fatigue-related requirements, where applicable

Please provide the required material standard, drawing, and mechanical-property specifications so the manufacturing process can be evaluated appropriately.

The following table summarizes the main parameters available for project evaluation. Final specifications are confirmed after reviewing your drawings and manufacturing requirements.

Successful metal stamping depends on more than press operation. Material selection, die design, forming sequence, dimensional control, and production repeatability all influence the final component.

Our project evaluation focuses on the relationship between the part drawing, material properties, manufacturing process, and intended application.

Different customers have different requirements. Some need simple flat stampings, while others require formed components, special spring steel parts, or galvanized parts with specific surface-protection requirements.

We evaluate the project scope to identify a suitable manufacturing route rather than applying the same process to every component.

Tooling design and stamping process planning are closely connected. For suitable projects, the die structure and forming sequence can be planned together to support stable production and repeatable dimensions.

Quality assurance should begin before mass production. Depending on the project requirements, the control plan may include:

• Incoming material verification
• First-article dimensional inspection
• In-process checks of critical dimensions
• Visual inspection for burrs, deformation, and surface damage
• Coating verification where applicable
• Final inspection and packaging checks

Inspection methods and documentation can be agreed upon before production begins.

For recurring orders, a well-defined process and documented specifications help maintain consistency between batches. Production planning can consider material availability, tooling condition, inspection frequency, and delivery requirements.

Our objective is to help customers establish a dependable supply arrangement for their custom metal components.

Our custom stamping solutions are suitable for a range of industrial component requirements. The following examples illustrate typical project types and should be treated as application examples, not claims about completed customer orders.

We welcome project inquiries from OEM manufacturers, industrial distributors, engineering companies, and component sourcing teams.

To evaluate a potential project, please share:

• Part drawings or CAD files
• Required material and thickness
• Annual or batch quantity
• Critical tolerances and functional requirements
• Surface treatment or heat-treatment specifications
• Sample requirements and expected delivery schedule

Our team can then review the information and advise on the next steps for quotation and sample development.

Managing material selection, tooling, stamping, finishing, and inspection through a coordinated supplier relationship can simplify communication and project management.

Custom stamping allows the component's geometry and functional features to be considered from the beginning, helping align production with the intended assembly.

Simple components, complex progressive stampings, and spring steel parts do not necessarily require the same tooling strategy. Selecting the right method can help balance initial tooling investment, unit cost, and production consistency.

Clear specifications for material, dimensions, finish, and inspection reduce ambiguity during manufacturing and help establish measurable acceptance criteria.

For repeat-production projects, consistent material specifications, stable tooling, and documented inspection requirements support a more predictable sourcing process.
