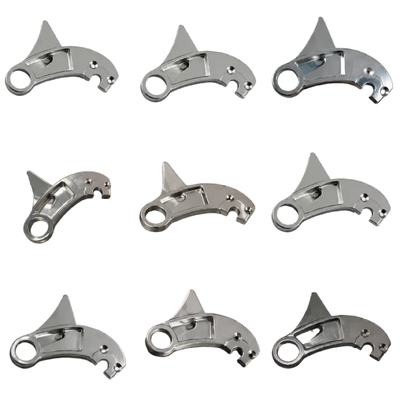

Custom Stainless Steel Precision Stamping Linkage Plate with Customizable Thickness for Bicycle Transmission Systems

We specialize in manufacturing Custom Precision Stamping Linkage Plates for automotive, machinery, electrical equipment, appliances, automation systems, and other industrial applications. Our steel linkage plates are designed to provide reliable mechanical connection, movement transfer, positioning, and structural support within complex assemblies.

Using advanced precision metal stamping, progressive stamping, punching, bending, forming, and secondary machining processes, we manufacture linkage plates according to customer drawings, CAD files, samples, and technical specifications. High-quality carbon steel, stainless steel, spring steel, aluminum, and other metal materials can be selected according to required strength, weight, corrosion resistance, and operating conditions.

A precision stamped linkage plate can incorporate multiple functional features, including mounting holes, slots, locating holes, tabs, bends, embossments, and special profiles. These features can be manufactured with controlled tolerances to ensure accurate assembly and consistent mechanical movement.

Our OEM manufacturing services cover the complete production process from tooling design and prototype development to stamping, surface treatment, inspection, and mass production. We work closely with customers to optimize part geometry, material selection, tooling structure, and production methods for reliable quality and competitive manufacturing costs.

A Precision Stamping Linkage Plate is a flat or formed metal component used to connect mechanical elements and transfer motion or force between different parts of an assembly. It is commonly used in mechanical linkage systems, automotive mechanisms, industrial equipment, actuators, control systems, and automated machinery.

Our custom linkage plates are manufactured using precision stamping technology to achieve accurate dimensions and repeatable production quality. Depending on the application, the plate can be produced with multiple holes, slots, bends, tabs, embossed sections, or other functional features.

The steel construction provides excellent mechanical strength and rigidity, making the linkage plate suitable for applications where stable force transmission and dimensional consistency are important. Stainless steel options can be selected when enhanced corrosion resistance is required, while aluminum provides a lightweight alternative for weight-sensitive designs.

The stamping process can integrate punching, forming, and bending operations into a streamlined production process. For high-volume applications, progressive stamping dies can produce complex linkage plates efficiently with consistent dimensions and reduced unit costs.

Secondary processes such as deburring, tapping, riveting, welding, CNC machining, heat treatment, and surface finishing can be added according to the final application.

We can manufacture linkage plates based on your 2D drawings, 3D CAD models, samples, or technical specifications, providing a complete OEM solution from prototype to mass production.

• Precision metal stamping and forming
• High-strength steel construction
• Stainless steel and aluminum options available
• Accurate hole and slot positioning
• Excellent dimensional consistency
• Reliable mechanical strength and rigidity
• Custom shapes and profiles
• Multiple bends and formed features available
• Embossed ribs and reinforcement structures
• Smooth and deburred edges
• Suitable for automated assembly
• Excellent repeatability for mass production
• Custom surface treatments available
• OEM and ODM manufacturing support
• Prototype and high-volume production capability

Actual specifications can be customized according to the material, geometry, tolerance, application, and customer drawing.

Custom stamped linkage plates are widely used in automotive mechanical systems for connecting components and transferring movement. Applications can include seat mechanisms, door mechanisms, locking systems, actuator assemblies, brake-related mechanisms, transmission components, and other vehicle hardware.

Linkage plates provide reliable mechanical connections in machinery, automation equipment, conveyor systems, machine tools, pumps, actuators, and other industrial equipment. Their precision geometry helps maintain accurate movement and alignment.

Precision linkage plates are suitable for robotic systems, automated production lines, pneumatic mechanisms, linear actuators, and motion-control assemblies where accurate force and movement transfer are required.

Stamped linkage plates can be used in switchgear, electrical cabinets, circuit protection systems, control mechanisms, and other electrical equipment requiring durable mechanical components.

Applications include washing machines, refrigerators, air conditioners, ovens, and other appliances where stamped metal linkage components are used for door mechanisms, locking systems, adjustment mechanisms, and internal structural assemblies.

Heavy-duty steel linkage plates can be used in agricultural equipment, mechanical adjustment systems, actuators, and other machinery exposed to repeated mechanical loads.

The customizable design makes these components suitable for brackets, levers, connectors, retainers, positioning systems, and other mechanical linkage applications.

We provide complete OEM and ODM customization services for precision stamping linkage plates.

• Overall dimensions
• Material type and grade
• Sheet thickness
• Hole diameter
• Hole spacing
• Hole pattern
• Slot dimensions
• Bending angle
• Plate profile
• Mounting tabs
• Embossed ribs
• Reinforcement features
• Threaded holes
• Surface treatment
• Color and finish
• Assembly requirements

Depending on the application, we can recommend:

• Carbon steel for high strength and cost efficiency
• SUS304 stainless steel for general corrosion resistance
• SUS316 stainless steel for demanding corrosive environments
• SUS301 stainless steel for applications requiring strength and spring characteristics
• Spring steel for components requiring enhanced elasticity
• Aluminum for lightweight applications
• Brass for specialized electrical and mechanical applications

We can design and manufacture customized:

• Progressive stamping dies
• Compound dies
• Punching dies
• Bending dies
• Forming dies
• Precision stamping tools

For high-volume production, progressive stamping can integrate multiple operations into one continuous process, helping improve production efficiency and dimensional consistency.

Our engineers can review your design and provide recommendations regarding:

• Material thickness
• Hole positioning
• Bend radius
• Tolerances
• Forming sequence
• Tooling structure
• Material utilization
• Production efficiency

Customers can provide 2D drawings, 3D CAD files, STEP/STP files, DWG/DXF files, PDF specifications, or physical samples.

We provide comprehensive manufacturing support throughout the entire product lifecycle.

• Product design review
• DFM analysis
• Material selection
• Tooling design
• Stamping process development
• Prototype development
• Production optimization

• Precision metal stamping
• Progressive stamping
• Punching
• Bending
• Forming
• CNC machining
• Tapping
• Welding
• Riveting
• Deburring
• Heat treatment
• Surface finishing
• Assembly

Our quality control process can include:

• Raw material inspection
• First article inspection
• Dimensional inspection
• Hole position inspection
• Bending angle inspection
• Surface quality inspection
• Functional testing
• Final inspection

Inspection reports and customized quality documentation can be provided according to project requirements.

We use professional packaging methods to protect precision stamped linkage plates from scratches, deformation, moisture, and contamination during transportation.

• PE bags
• Protective film
• Plastic trays
• Foam inserts
• Carton boxes
• Export-standard cartons
• Wooden cases
• Customized branded packaging

For finished or coated surfaces, protective separators can be used to prevent part-to-part friction and surface damage.

• Express delivery
• Air freight
• Sea freight
• Railway transportation
• Customer-appointed logistics

Shipping arrangements can be customized according to order quantity, destination, delivery schedule, and customer requirements.
