Custom Deep Drawn Support Cup with Precision Stamping Grade (±0.05 mm - ±0.1 mm) and Electrophoretic Coating for Automotive Suspension Systems

Products

Custom Deep Drawn Support Cup with Precision Stamping Grade (±0.05 mm - ±0.1 mm) and Electrophoretic Coating for Automotive Suspension Systems

Detail Information

Product Description

Detail Information

Place of Origin

Brand Name

METS

Product Name:

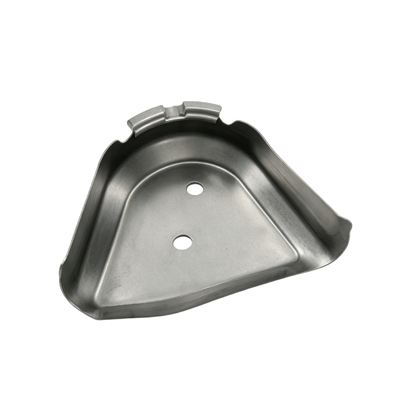

Custom Metal Stamping Spring Seat Bracket / Deep Drawn Support Cup

Material:

Heavy-Duty Carbon Steel, Stainless Steel (304/316), High-Strength Alloy Steel

Processing Technology:

Deep Drawing, Progressive Stamping, Hydraulic Press Forming, Punching

Surface Treatment:

Electrophoretic Coating (E-Coating), Powder Coating, Zinc Plating, Sandblasting

Tolerance:

Precision Stamping Grade (±0.05 Mm - ±0.1 Mm)

Application:

Automotive Suspension System, Machinery Mounting Base, Shock Absorber Assembly

Product Description

Custom Deep Drawn Support Cup | Precision Steel OEM Part

We specialize in manufacturing Custom Deep Drawn Support Cups for industrial machinery, automotive components, electrical equipment, household appliances, motor assemblies, and other precision metal applications. Our deep drawn support cups are manufactured from high-quality steel, stainless steel, aluminum, brass, and other sheet metal materials to provide reliable structural support, dimensional stability, and long-term mechanical performance.

Using advanced deep drawing, metal stamping, trimming, punching, forming, and secondary machining technologies, we can produce support cups with precise dimensions, controlled wall thickness, smooth surfaces, and consistent forming quality. Deep drawing allows flat metal sheets to be transformed into durable cup-shaped components with excellent structural integrity and repeatable geometry.

Our OEM support cups can be customized according to customer drawings, CAD files, physical samples, material specifications, and application requirements. Features such as mounting holes, slots, flanges, embossed ribs, steps, grooves, and other formed structures can be incorporated into the design.

Whether you need a small precision support cup for an electrical assembly or a heavy-duty deep drawn component for industrial equipment, our engineering team can provide a complete solution from prototype development and tooling design to mass production and final inspection.

Product Description

A Deep Drawn Support Cup is a three-dimensional metal component produced by forming a flat sheet metal blank into a cup-shaped or cylindrical structure through a deep drawing process. It is commonly used to provide mechanical support, positioning, protection, spacing, or structural reinforcement within an assembly.

The deep drawing process uses precision dies and punches to form the metal without relying on multiple welded pieces. This can provide a cleaner structure, improved dimensional consistency, and reduced assembly requirements. For suitable designs, deep drawing also enables efficient material utilization and economical mass production.

Our custom support cups can be manufactured with different depths, diameters, wall thicknesses, flange dimensions, and bottom configurations. Additional features such as holes, slots, ribs, grooves, embossments, and mounting tabs can be added through secondary stamping or machining processes.

Stainless steel deep drawn support cups are suitable for applications requiring corrosion resistance and durability, while carbon steel provides high strength and cost efficiency. Aluminum can be selected where lightweight construction is important, and brass or copper can be used for specialized applications requiring electrical or thermal conductivity.

Surface treatments including polishing, passivation, zinc plating, nickel plating, black oxide, powder coating, and painting can be provided according to the operating environment and appearance requirements.

Our precision manufacturing process focuses on maintaining consistent dimensions, controlled forming, smooth edges, and reliable structural performance. Each production batch can be inspected according to customer-defined dimensional and quality requirements.

Features

Precision deep drawing and metal forming
Custom cup-shaped and cylindrical geometries
High structural strength and rigidity
Excellent dimensional consistency
Controlled wall thickness
Smooth and clean formed surfaces
Stainless steel and carbon steel material options
Lightweight aluminum options available
Custom flanges, holes, slots, and ribs
Excellent corrosion resistance with suitable materials and finishes
Reduced welding and assembly requirements
Suitable for high-volume production
Precision OEM and ODM manufacturing
Prototype development available
Secondary machining and finishing services
Custom tooling and die manufacturing

Technical Parameters

Parameter	Specification
Product Name	Custom Deep Drawn Support Cup
Product Type	Deep Drawn Metal Support Cup
Materials	Carbon Steel, Stainless Steel, Aluminum, Brass, Copper
Stainless Steel Grades	SUS301, SUS304, SUS316, SUS430
Aluminum Grades	5052, 6061, 6063, Other Grades
Material Thickness	0.3-6.0 mm
Outer Diameter	Customized
Inner Diameter	Customized
Overall Height	Customized
Drawing Depth	Customized
Wall Thickness	According to Material and Design
Flange Diameter	Customized
Bottom Shape	Flat, Embossed, Reinforced, Customized
Hole Diameter	Customized
Hole Pattern	Customized
Manufacturing Process	Deep Drawing, Stamping, Forming, Trimming
Secondary Processes	Punching, Bending, Tapping, CNC Machining, Welding
Surface Treatment	Passivation, Zinc Plating, Nickel Plating, Polishing, Powder Coating
Dimensional Tolerance	Typically ±0.05 mm or According to Drawing
Tooling	Deep Drawing Die / Stamping Die
Production Volume	Prototype, Small Batch, Mass Production
OEM/ODM	Available
Quality Management	ISO 9001

Actual specifications depend on material type, product geometry, drawing depth, tooling design, and customer requirements.

Applications

Automotive Components: Custom deep drawn support cups are used in automotive assemblies requiring strong, accurately formed metal components. Applications may include motor components, protective housings, sensor assemblies, mounting structures, battery-related components, and mechanical support parts.

Motor and Electrical Equipment: Deep drawn support cups can be used in electric motors, generators, transformers, electrical assemblies, and other equipment where components require reliable positioning and mechanical support.

Industrial Machinery: These components are suitable for pumps, gear systems, automation equipment, compressors, machine tools, hydraulic equipment, and industrial mechanisms. Their rigid cup-shaped structure can provide stable support and protection for internal components.

Electronics: Precision support cups can be used in electronic equipment, power supplies, connectors, sensors, communication equipment, and electrical enclosures. Stainless steel and other corrosion-resistant materials can be selected for demanding environments.

Household Appliances: Applications include washing machines, refrigerators, air conditioners, kitchen equipment, vacuum cleaners, and other appliances requiring durable stamped metal components.

Bearings and Mechanical Assemblies: Deep drawn support cups can serve as retaining, positioning, spacing, or protective components within mechanical assemblies. Their customized geometry allows them to fit specific installation spaces.

Renewable Energy Equipment: Support cups can be used in solar equipment, energy storage systems, EV charging equipment, power electronics, and other renewable energy products requiring durable metal components.

General Industrial Hardware: The versatile design makes custom support cups suitable for brackets, retainers, housings, protective components, spacers, and other customized industrial applications.

Customization

We provide comprehensive OEM and ODM customization services for deep drawn support cups.

Custom Design Options

Outer diameter
Inner diameter
Overall height
Drawing depth
Material thickness
Material grade
Flange dimensions
Bottom configuration
Corner radius
Mounting holes
Slots and openings
Embossed ribs
Grooves and beads
Mounting tabs
Surface finish
Color and coating

Material Selection

Depending on the application, we can recommend:

SUS304 for general corrosion-resistant applications
SUS316 for more demanding corrosive environments
Carbon steel for high-strength and cost-sensitive applications
Aluminum for lightweight designs
Brass and copper for specialized electrical applications

Custom Tooling

We can design and manufacture:

Deep drawing dies
Progressive stamping dies
Compound dies
Punching dies
Trimming dies
Forming dies
Bending dies

Our tooling engineers can evaluate the product structure and forming sequence to reduce risks such as cracking, wrinkling, excessive thinning, and dimensional deformation.

DFM Engineering Support

Customers can provide:

2D drawings
3D CAD files
STEP/STP files
DWG/DXF files
PDF specifications
Physical samples

Our engineering team can review your design and provide recommendations regarding material thickness, drawing depth, corner radius, tolerances, hole placement, forming sequence, and secondary processing.

Support and Services

We provide complete manufacturing support from initial design through final delivery.

Engineering Services

Product design review
DFM analysis
Deep drawing feasibility evaluation
Material selection
Tooling design
Forming process optimization
Prototype development

Manufacturing Services

Deep drawing
Precision metal stamping
Progressive stamping
Punching
Trimming
Bending
CNC machining
Tapping
Welding
Deburring
Grinding
Polishing
Surface finishing
Assembly

Quality Control

Our quality control process may include:

Raw material inspection
First article inspection
Dimensional inspection
Wall thickness measurement
Drawing depth inspection
Hole and feature inspection
Surface quality inspection
Functional testing
Final inspection

Customized inspection reports and quality documentation can be provided according to project requirements.

Packing and Shipping

We use professional packaging methods to protect deep drawn support cups from scratches, deformation, moisture, and contamination during transportation.

Packaging Options

PE bags
Protective film
Plastic trays
Foam inserts
Carton boxes
Export-standard cartons
Wooden cases
Customized branded packaging

For polished, plated, or painted components, additional protective packaging can be used to minimize surface contact and prevent scratches.

Shipping Methods

Express delivery
Air freight
Sea freight
Railway transportation
Customer-designated logistics

Shipping arrangements can be customized according to order quantity, destination, delivery schedule, and customer requirements.

FAQ

Q1: What is a Deep Drawn Support Cup?

A Deep Drawn Support Cup is a three-dimensional sheet metal component formed into a cup-shaped structure using a punch and die. It can be used for mechanical support, positioning, protection, spacing, or structural reinforcement.

Q2: What materials can you use for support cups?

We manufacture support cups from carbon steel, stainless steel, aluminum, brass, copper, and other sheet metal materials according to application requirements.

Q3: What stainless steel grades are available?

Common options include SUS301, SUS304, SUS316, and SUS430. Other material grades can be considered based on project requirements.

Q4: Can you manufacture support cups according to our drawings?

Yes. We provide OEM and ODM manufacturing based on 2D drawings, 3D CAD files, physical samples, and technical specifications.

Q5: Can you manufacture deep and complex cup shapes?

Yes. We can produce cylindrical, stepped, flanged, embossed, reinforced, and other customized geometries, subject to material and forming feasibility.
