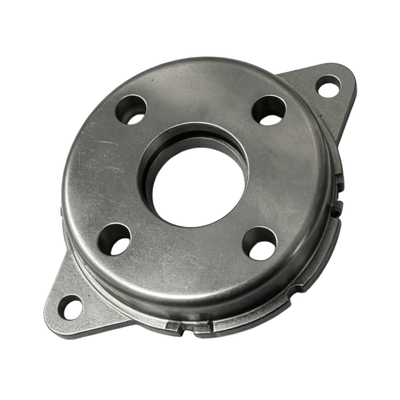

High Precision Deep Drawing Metal Stamping Cover with Electrophoretic Coating for Automotive Shock Absorber Mount

Products

High Precision Deep Drawing Metal Stamping Cover with Electrophoretic Coating for Automotive Shock Absorber Mount

Detail Information

Product Description

Detail Information

Place of Origin

Brand Name

METS

Product Name:

Custom Deep Drawing Metal Stamping Cover / Bearing Housing Flange

Material:

Carbon Steel (SPCC/SECC), Stainless Steel (304/316), Alloy Steel

Processing Technology:

Deep Drawing, Precision Stamping, Punching, Trimming, Flanging

Surface Treatment:

Electrophoretic Coating (E-Coating), Zinc Plating, Black Oxide, Powder Coating

Tolerance:

High Precision (±0.02 Mm To ±0.05 Mm)

Application:

Automotive Shock Absorber Mount, Bearing Support, Electric Motor Flange, Heavy Machinery

Product Description

Custom Deep Drawing Metal Stamping Cover | Precision OEM Part

We specialize in manufacturing Custom Deep Drawing Metal Stamping Covers for industrial, automotive, electrical, electronic, machinery, appliance, and equipment applications. Our deep drawn metal covers are precision-formed from high-quality sheet metal to create seamless or low-joint cylindrical, rectangular, cup-shaped, and other customized geometries.

Deep drawing technology enables us to produce metal covers with consistent wall thickness, accurate dimensions, smooth contours, and excellent structural strength. Compared with conventional multi-piece fabrication, deep drawing can reduce the number of seams and assembly operations while improving product consistency and production efficiency.

We work with a wide range of materials, including stainless steel, carbon steel, galvanized steel, aluminum, brass, and copper, allowing the finished cover to meet different requirements for strength, weight, corrosion resistance, conductivity, and operating environment.

Our OEM manufacturing capabilities cover tooling development, deep drawing, stamping, trimming, punching, bending, tapping, welding, CNC machining, deburring, and surface finishing. Whether you need a small precision cover for an electronic device or a large deep drawn housing for industrial equipment, our engineering team can develop a solution according to your drawings, samples, or technical specifications.

Product Description

A Deep Drawing Metal Stamping Cover is a sheet metal component manufactured through a forming process that transforms a flat metal blank into a three-dimensional shape using a punch and die. This process is particularly suitable for producing covers, housings, enclosures, shells, cups, and protective components with relatively deep profiles.

Our custom deep drawn covers are designed to provide reliable structural protection while maintaining accurate dimensions and a clean appearance. The forming process can produce complex geometries with features such as mounting holes, openings, flanges, embossed sections, beads, ribs, threaded holes, and other functional structures.

Deep drawing is especially advantageous for medium- and high-volume production because it can achieve repeatable dimensions and efficient material utilization. Depending on the product geometry and material, multiple drawing operations can be used to achieve the required depth and shape while controlling deformation and maintaining product quality.

We offer precision deep drawing solutions using carefully selected materials and customized tooling. Stainless steel covers are suitable for applications requiring excellent corrosion resistance, while aluminum provides a lightweight solution for transportation and electronic equipment. Carbon and galvanized steel can provide high strength and cost efficiency for industrial applications.

After deep drawing, secondary operations can be performed according to the product design. These may include trimming, piercing, tapping, welding, CNC machining, grinding, polishing, plating, painting, powder coating, and other surface treatments.

Every custom cover can be developed according to your specific requirements for dimensions, material thickness, depth, tolerances, surface finish, and assembly method.

Features

Precision deep drawing and metal stamping
Custom cylindrical, rectangular, cup-shaped, and complex geometries
High structural strength and dimensional stability
Excellent repeatability for mass production
Seamless or reduced-joint construction
Stainless steel, carbon steel, aluminum, brass, and copper options
Accurate wall depth and profile control
Custom mounting holes and openings
Embossed ribs and reinforcement features available
Smooth surface finish
Excellent corrosion resistance with suitable materials and coatings
Suitable for protective housings and enclosures
Integrated secondary machining available
OEM and ODM manufacturing support
Prototype and high-volume production capability

Technical Parameters

Parameter	Specification
Product Name	Custom Deep Drawing Metal Stamping Cover
Product Type	Deep Drawn Metal Cover / Stamped Housing
Materials	Stainless Steel, Carbon Steel, Galvanized Steel, Aluminum, Brass, Copper
Stainless Steel Grades	SUS301, SUS304, SUS316, SUS430
Aluminum Grades	5052, 6061, 6063, Other Grades
Material Thickness	0.3-6.0 mm
Drawing Depth	Customized According to Design
Diameter / Length	Customized
Width / Height	Customized
Wall Thickness	According to Material and Design
Forming Process	Deep Drawing, Stamping, Bending, Forming
Secondary Processes	Trimming, Punching, Tapping, Welding, CNC Machining
Surface Treatment	Polishing, Passivation, Zinc Plating, Nickel Plating, Powder Coating, Painting
Surface Finish	Bright, Matte, Brushed, Polished, Coated
Dimensional Tolerance	Typically ±0.05 mm or According to Drawing
Tooling	Deep Drawing Die / Progressive Die / Custom Tooling
Production Volume	Prototype, Small Batch, Mass Production
Inspection	Dimensional, Surface, Functional and Final Inspection
OEM/ODM	Available
Quality Management	ISO 9001

Actual specifications can be customized according to product geometry, material, tooling requirements, and customer drawings.

Applications

Automotive Industry

Deep drawn metal covers are widely used in automotive components and assemblies where durable, lightweight, and accurately formed metal parts are required. Applications may include motor housings, protective covers, sensor housings, brackets, transmission components, battery-related parts, and structural components.

Electrical & Electronics

Precision deep drawn covers provide protective enclosures for electrical and electronic components. They can be used for power supplies, control systems, sensors, connectors, transformers, motors, communication equipment, and electronic devices.

Industrial Machinery

Deep drawn metal housings and covers are suitable for motors, pumps, compressors, gear systems, automation equipment, machine tools, and industrial control systems. Their rigid structure helps protect internal components from mechanical damage and environmental exposure.

Household Appliances

Our stamped covers are used in washing machines, refrigerators, air conditioners, kitchen appliances, vacuum cleaners, coffee machines, and other household equipment where durable metal housings and protective components are required.

Motor & Electrical Equipment

Deep drawn components can be manufactured as motor end covers, protective shells, electrical enclosures, terminal housings, and other precision components used in electrical equipment.

Medical & Laboratory Equipment

Stainless steel and aluminum deep drawn parts are suitable for medical instruments, laboratory equipment, testing devices, and equipment housings where cleanliness, dimensional accuracy, and corrosion resistance are important.

Renewable Energy

Deep drawn metal components can be used in solar equipment, battery storage systems, EV charging equipment, power electronics, and other renewable energy products requiring durable protective housings.

Customization

We provide comprehensive OEM and ODM deep drawing services based on customer drawings, samples, CAD models, and application requirements.

Custom Design Options

Overall dimensions
Drawing depth
Material thickness
Material grade
Diameter and profile
Corner radius
Flange dimensions
Mounting holes
Slots and openings
Embossed ribs
Beads and reinforcement structures
Threaded holes
Welding points
Surface finish
Color and coating

Tooling Development

We can design and manufacture customized tooling according to product geometry and production volume, including:

Deep drawing dies
Progressive stamping dies
Compound dies
Punching dies
Bending dies
Forming dies
Trimming tools

For complex deep drawn parts, our engineers can evaluate the drawing ratio, material behavior, corner radius, forming sequence, and tooling structure to improve production stability and reduce the risk of wrinkles, cracks, deformation, or excessive thinning.

DFM Support

Our engineering team can review your design before production and provide recommendations for:

Material selection
Wall thickness
Corner radius
Drawing depth
Tolerance requirements
Hole positioning
Forming sequence
Secondary processing
Tooling optimization

This helps improve manufacturability while controlling tooling and production costs.

Support and Services

We provide complete support from product development through mass production.

Engineering Services

Product design review
DFM analysis
Deep drawing feasibility evaluation
Material recommendations
Tooling design
Forming process optimization
Prototype development

Manufacturing Services

Deep drawing
Precision metal stamping
Progressive stamping
Punching
Trimming
Bending
CNC machining
Welding
Tapping
Deburring
Grinding and polishing
Surface treatment
Final assembly

Quality Control

Quality inspection can include:

Raw material verification
First article inspection
Dimensional inspection
Wall thickness inspection
Drawing depth measurement
Hole and feature inspection
Surface quality inspection
Functional testing
Final inspection

Inspection reports and customized quality documentation can be provided according to project requirements.

Packing and Shipping

We use appropriate packaging methods to protect deep drawn metal covers from scratches, deformation, moisture, and contamination during transportation.

Packaging Options

PE bags
Protective film
Plastic trays
Foam inserts
Carton boxes
Export-standard cartons
Wooden cases
Customized branded packaging

For polished, plated, or painted surfaces, additional protective packaging can be used to prevent scratches and surface damage.

Shipping Methods

Express delivery
Air freight
Sea freight
Railway transportation
Customer-designated logistics

Shipping arrangements can be customized according to order quantity, destination, delivery schedule, and customer requirements.

FAQ

Q1: What is a deep drawing metal stamping cover?

A deep drawing metal stamping cover is a three-dimensional sheet metal component formed from a flat metal blank using a punch and die. It is commonly used as a housing, enclosure, protective cover, or structural component.

Q2: What materials can be used for deep drawn covers?

We work with stainless steel, carbon steel, galvanized steel, aluminum, brass, copper, and other sheet metal materials according to application requirements.

Q3: What stainless steel grades are available?

Common options include SUS301, SUS304, SUS316, and SUS430. Other grades can be considered according to project requirements.

Q4: Can you manufacture covers according to our drawings?

Yes. We provide OEM and ODM manufacturing based on 2D drawings, 3D CAD files, PDF specifications, physical samples, or technical requirements.

Q5: Can you manufacture complex deep drawn shapes?

Yes. We can manufacture cylindrical, rectangular, oval, cup-shaped, stepped, flanged, and other customized geometries, subject to material and forming feasibility.
