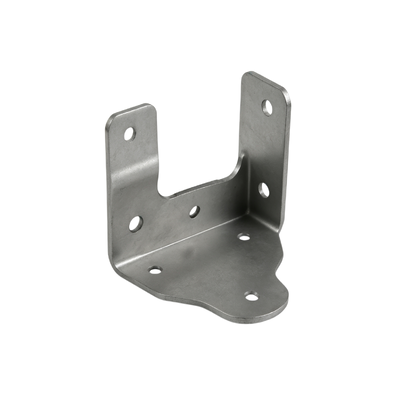

Custom Metal Stamping Angle Bracket with Precision Stamped and Corrosion Resistant Features for Structural Support

Custom Metal Stamping Angle Bracket with Precision Stamped and Corrosion Resistant Features for Structural Support

Detail Information
Place of Origin
CN
Brand Name
METS
Product Name:
Custom Metal Stamping Angle Bracket / Corner Mounting Support
Material:
Stainless Steel (304/316), Carbon Steel, Galvanized Sheet, Aluminum
Processing Technology:
Progressive Die Stamping, Bending, Laser Cutting, Punching
Thickness:
1.5 Mm - 4.0 Mm (Customizable)
Surface Treatment:
Sandblasting, Zinc Plating, Powder Coating, Anodizing, Electrocoating (E-coating)
Application:
Furniture Assembly, Structural Framing, Machinery Enclosure, Solar Racking
Product Description
Custom Metal Stamping Angle Bracket | Precision Steel OEM Part
Custom Metal Stamping Angle Bracket Manufacturer

We specialize in manufacturing Custom Metal Stamping Angle Brackets for industrial, commercial, automotive, electrical, electronics, machinery, construction, and equipment applications. Our precision stamped brackets are engineered to provide reliable structural support, accurate assembly, and long-term mechanical stability.

Using advanced metal stamping, progressive stamping, bending, punching, and secondary machining processes, we manufacture angle brackets according to customer drawings, samples, and technical specifications. High-quality materials such as carbon steel, stainless steel, galvanized steel, aluminum, brass, and other alloys are available to meet different strength, weight, corrosion resistance, and environmental requirements.

Our OEM metal stamping angle brackets can be produced in simple L-shaped configurations or complex customized geometries with mounting holes, slots, ribs, embossments, tabs, and other functional features. Precision tooling and automated production help maintain consistent dimensions and repeatable quality for both prototype projects and high-volume production.

Whether you need a standard mounting bracket or a fully customized stamped metal component, our engineering team can help optimize the design, material, tooling, and production process to achieve reliable performance and competitive manufacturing costs.

Custom metal stamping angle bracket manufacturing process
Product Description

A Metal Stamping Angle Bracket is a formed metal component designed to connect, reinforce, support, or position two structural components at a specific angle. Commonly manufactured in an L-shaped configuration, these brackets provide a practical and economical solution for mechanical fastening and structural reinforcement.

Our custom steel angle brackets are manufactured through precision stamping and forming processes. Depending on the application, the bracket can incorporate mounting holes, elongated slots, locating tabs, reinforcing ribs, embossed sections, bends, and other custom features. These design elements can improve rigidity, simplify installation, reduce assembly time, and enhance overall structural performance.

We offer a wide selection of metal materials to meet different application requirements. Stainless steel provides excellent corrosion resistance, while carbon steel offers high strength and cost efficiency. Aluminum is suitable for lightweight structures, and brass and copper alloys can be selected for applications requiring electrical conductivity.

Surface treatments such as zinc plating, nickel plating, powder coating, electrophoretic coating, black oxide, passivation, and polishing can further improve corrosion resistance, surface durability, and appearance.

Our precision stamping capabilities support tight dimensional requirements and consistent production quality. Each batch can be inspected for dimensions, hole position, bending angle, surface quality, and other customer-defined specifications.

From initial prototype samples to large-volume OEM production, we provide a complete manufacturing solution for customers requiring dependable stamped metal angle brackets.


Features
  • Precision metal stamping and forming
  • High-strength steel construction options
  • Stainless steel and aluminum material options
  • Custom L-shaped and complex bracket designs
  • Accurate mounting holes and slots
  • Reinforcing ribs and embossed features available
  • Excellent dimensional consistency
  • High structural strength and rigidity
  • Lightweight designs available
  • Excellent corrosion resistance with suitable finishes
  • Smooth and clean stamped surfaces
  • Suitable for automated assembly
  • OEM and ODM production support
  • Prototype and mass production capability
  • Cost-effective for high-volume manufacturing
  • Customized tooling and dies available

Technical Parameters
Parameter Specification
Product Name Custom Metal Stamping Angle Bracket
Product Type Stamped Metal Angle Bracket / Mounting Bracket
Material Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Brass, Copper
Stainless Steel Grades SUS301, SUS304, SUS316, SUS430
Material Thickness 0.3-6.0 mm
Bracket Length Customized
Bracket Width Customized
Bending Angle Customized, Commonly 90°
Hole Diameter Customized
Hole Type Round, Oval, Slotted, Countersunk, Custom
Tolerance ±0.05 mm or According to Drawing
Manufacturing Process Stamping, Punching, Bending, Forming
Secondary Processes Deburring, Tapping, Welding, Riveting, Machining
Surface Treatment Zinc Plating, Nickel Plating, Powder Coating, Black Oxide, Passivation
Surface Finish Bright, Matte, Polished, Coated
Production Volume Prototype, Small Batch, Mass Production
Tooling Progressive Die, Compound Die, Single-Operation Die
OEM/ODM Available
Quality Management ISO 9001
Technical specifications can be customized according to drawings, samples, and application requirements.

Applications
Automotive Industry

Custom stamped angle brackets are widely used in automotive assemblies for mounting, positioning, reinforcing, and securing components. They can be applied to vehicle body structures, electrical systems, interior components, engine accessories, battery systems, and various support assemblies.

Electrical & Electronics

Precision metal brackets provide reliable mounting solutions for electrical cabinets, control panels, power supplies, circuit assemblies, connectors, sensors, and electronic equipment. Stainless steel and corrosion-resistant finishes are available for demanding environments.

Industrial Machinery

Angle brackets are used for equipment frames, machine guards, structural supports, motor assemblies, automation equipment, conveyor systems, and mechanical components. Their rigid structure helps maintain accurate component positioning.

Construction & Hardware

Stamped metal angle brackets can be used for furniture structures, equipment installation, architectural hardware, light-duty construction assemblies, and general-purpose reinforcement applications.

HVAC & Appliances

Custom brackets are suitable for air-conditioning systems, ventilation equipment, refrigerators, washing machines, ovens, and other household appliances where compact and durable mounting hardware is required.

Solar & Renewable Energy

Metal mounting brackets can be designed for solar equipment, battery systems, electrical enclosures, and renewable energy structures where strength, corrosion resistance, and long-term outdoor durability are important.

Telecommunications

Used in communication cabinets, network equipment, server racks, cable management systems, and other telecommunications infrastructure requiring precise and reliable mounting components.


Customization

We provide comprehensive OEM and ODM metal stamping services to manufacture angle brackets according to your exact requirements.

Custom Design Options
  • Overall bracket dimensions
  • Material and material grade
  • Sheet thickness
  • Bending angle
  • Mounting hole diameter
  • Hole spacing
  • Slotted hole dimensions
  • Countersunk holes
  • Embossed features
  • Reinforcing ribs
  • Mounting tabs
  • Special bends
  • Welding or riveting features
  • Surface treatment
  • Color and finish
  • Packaging requirements
Custom Tooling

Depending on production volume and product complexity, we can develop:

  • Progressive stamping dies
  • Compound stamping dies
  • Single-operation dies
  • Bending dies
  • Forming dies
  • Custom punching tools

Our engineering team can review your design and provide DFM (Design for Manufacturing) recommendations to improve manufacturability, dimensional stability, production efficiency, and overall cost.

Design Files We Accept

Customers can provide:

  • 2D CAD drawings
  • 3D CAD files
  • STEP / STP files
  • DXF / DWG files
  • PDF drawings
  • Physical samples

Support and Services

We provide complete support throughout the product development and manufacturing process.

Engineering Support
  • Product design review
  • DFM analysis
  • Material selection
  • Tooling recommendations
  • Tolerance evaluation
  • Manufacturing process optimization
Prototyping

We can produce prototype samples before mass production, allowing customers to verify:

  • Dimensions
  • Assembly fit
  • Hole positioning
  • Bending angles
  • Surface finish
  • Mechanical performance
Production Services
  • Precision stamping
  • Progressive stamping
  • Punching
  • Bending
  • Deep drawing when required
  • CNC machining
  • Welding
  • Riveting
  • Deburring
  • Surface finishing
  • Final assembly
Quality Control

Our quality control process can include:

  • Raw material inspection
  • First article inspection
  • Dimensional inspection
  • Hole position inspection
  • Bending angle inspection
  • Surface quality inspection
  • Functional and assembly testing
  • Final inspection before shipment

Inspection reports and customized quality documentation can be provided according to project requirements.


Packing and Shipping

We use appropriate protective packaging to prevent scratches, deformation, moisture, and other damage during transportation.

Packaging Options
  • PE bags
  • Plastic trays
  • Protective film
  • Foam inserts
  • Carton boxes
  • Export-standard cartons
  • Wooden cases
  • Customized packaging

For precision stamped brackets with finished surfaces, additional protective materials can be used to minimize surface contact and prevent scratches.

Shipping Options
  • Express delivery
  • Air freight
  • Sea freight
  • Railway transportation
  • Customer-designated logistics

Shipping arrangements can be customized according to order quantity, delivery schedule, destination, and customer requirements.


FAQ
Q1: What is a metal stamping angle bracket?

A metal stamping angle bracket is a formed metal component used to connect, support, reinforce, or position structural parts. It is commonly manufactured with a 90-degree L-shaped configuration but can be customized to different geometries.

Q2: What materials can you use for angle brackets?

We manufacture brackets from carbon steel, stainless steel, galvanized steel, aluminum, brass, copper, and other metal alloys according to application requirements.

Q3: Can you manufacture brackets according to our drawings?

Yes. We provide OEM and ODM manufacturing based on 2D drawings, 3D CAD files, PDF specifications, or physical samples.

Q4: What material thickness can you stamp?

Our typical material thickness range is approximately 0.3 -6.0 mm, depending on material type, bracket geometry, tooling, and production requirements.

Q5: Can you produce brackets with holes and slots?

Yes. Round holes, elongated slots, countersunk holes, mounting tabs, embossments, and other customized features can be integrated into the stamping process.
