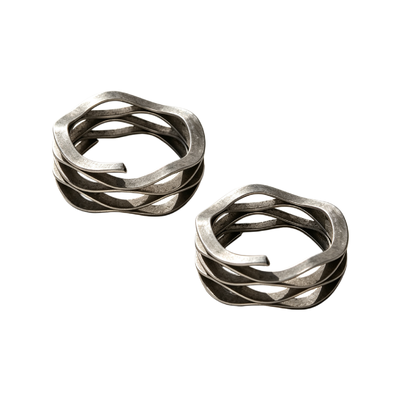

Precision Stainless Steel Crest-to-Crest Wave Spring for High Load Bearing with Reduced Axial Installation Space

We specialize in manufacturing Custom Crest-to-Crest Wave Springs with high precision forming technology, providing reliable spring solutions for demanding industrial applications. Our wave springs are designed with multiple waves per turn, allowing them to deliver high load capacity, controlled spring force, and reduced axial installation space compared with traditional coil compression springs.

Manufactured from premium materials such as SUS304 stainless steel, SUS316 stainless steel, carbon steel, spring steel, and alloy materials, our Crest-to-Crest Wave Springs provide excellent fatigue resistance, corrosion resistance, and long-term mechanical stability. They are widely used in bearings, automotive systems, aerospace equipment, valves, pumps, precision machinery, electrical devices, and industrial assemblies.

With advanced CNC spring forming equipment and strict quality control processes, we produce customized wave springs according to customer drawings, samples, load requirements, dimensions, and application conditions. From prototype development to high-volume production, we provide OEM and ODM solutions to meet various engineering requirements.

A Crest-to-Crest Wave Spring is a precision-engineered axial spring featuring multiple waves formed around each coil turn. Unlike conventional compression springs, the wave design allows the spring to achieve similar load performance with significantly reduced operating height, making it an ideal solution for applications where space optimization is critical.

The crest-to-crest structure provides evenly distributed contact points between waves, ensuring stable load transmission, consistent spring force, and improved performance under repeated compression cycles. This design helps reduce assembly height, minimize component weight, and improve overall system efficiency.

Our custom wave springs are manufactured using high-quality spring materials and advanced automatic forming processes to ensure accurate dimensions, smooth surfaces, and reliable elasticity. Each spring can be customized for specific requirements including outside diameter, inside diameter, wire thickness, free height, working load, spring rate, and operating environment.

Crest-to-Crest Wave Springs are commonly installed in bearing assemblies, sealing systems, preload mechanisms, clutches, actuators, electrical equipment, and precision mechanical devices. They provide excellent solutions for applications requiring high force output in limited axial space.

We support customized production based on 2D drawings, 3D models, samples, or technical specifications, ensuring each wave spring meets customer performance requirements.

• High load capacity with compact axial installation height
• Precision crest-to-crest wave structure design
• Excellent spring force consistency
• Space-saving alternative to traditional coil springs
• High fatigue resistance for repeated compression cycles
• Premium stainless steel and alloy material options
• Excellent corrosion and oxidation resistance
• Stable performance under high-temperature environments
• Smooth surface finish and burr-free edges
• Accurate dimensions and strict tolerance control
• Suitable for automated assembly applications
• Custom spring rate and load requirements available
• OEM and ODM manufacturing capability
• Prototype and mass production support
• Long service life with reliable performance

Bearing Industry: Crest-to-Crest Wave Springs are widely used in bearing assemblies to provide preload force, compensate for axial clearance, reduce vibration, and maintain stable operating performance. They help improve bearing reliability while minimizing installation space.

Automotive Industry: Used in automotive components including transmissions, clutches, braking systems, engine assemblies, sensors, and precision mechanisms. Their compact design and high fatigue resistance make them suitable for demanding vehicle environments.

Industrial Machinery: Applied in pumps, valves, hydraulic equipment, actuators, automation machinery, and mechanical assemblies requiring controlled axial force and reliable spring performance.

Aerospace & Transportation Equipment: High-performance wave springs provide lightweight and space-efficient solutions for aerospace mechanisms, aviation components, and transportation systems requiring precision force control.

Electrical & Electronic Equipment: Used in switches, connectors, electrical devices, circuit components, and precision instruments where stable contact pressure and compact spring structures are required.

Medical Equipment: Suitable for medical instruments, laboratory equipment, and precision devices requiring consistent force output and corrosion-resistant materials.

Energy & Renewable Equipment: Applied in solar equipment, battery systems, charging devices, and energy storage systems requiring durable and reliable spring components.

We provide complete customization services to develop Crest-to-Crest Wave Springs according to your specific requirements.

• Material selection
• Wire diameter customization
• Spring diameter customization
• Wave number adjustment
• Free height modification
• Load and spring rate optimization
• Heat treatment adjustment
• Surface finishing selection
• Corrosion resistance enhancement
• High-temperature spring design
• Special shape and structure development
• Packaging customization

Customers can provide: product drawings, CAD files, 3D models, existing samples, and performance requirements.

Our engineering team can analyze your application and recommend the most suitable spring structure, material, and manufacturing process to achieve optimal performance and cost efficiency.

We provide professional technical support and manufacturing services throughout the entire project lifecycle.

• Spring design assistance
• Load calculation support
• Material recommendation
• Product optimization
• Prototype development

• Precision CNC spring forming
• Automated production
• Small batch and mass production
• Custom inspection procedures
• Quality documentation support

• Raw material inspection
• Dimensional inspection
• Load testing
• Spring performance testing
• Surface quality inspection
• Final product inspection

• Fast quotation response
• Technical consultation
• Production progress updates
• Export support
• After-sales service

We use professional packaging methods to ensure Crest-to-Crest Wave Springs remain protected during transportation and storage.

• Plastic bags
• PE bags
• Anti-moisture packaging
• Plastic trays
• Carton boxes
• Export standard cartons
• Customized branded packaging

• Express shipping (DHL, FedEx, UPS, TNT)
• Air freight
• Sea freight
• Railway transportation
• Customer-designated logistics

All products are inspected before shipment to ensure quality consistency and reliable delivery.
