Stamped Pin and Socket Contacts with High Electrical Conductivity and Precision Metal Stamping for Reliable Contact Performance

Products

Stamped Pin and Socket Contacts with High Electrical Conductivity and Precision Metal Stamping for Reliable Contact Performance

Detail Information

Product Description

Detail Information

Place of Origin

Brand Name

METS

Service:

Customized

Process:

Precision Stamping, Rolling, Annealing

Processing Technique:

Precision Stamping / CNC Machining

Sizerange:

Customizable Based On Part Dimensions

Mechanicalstrength:

Good Tensile Strength

Corrosionresistance:

High

Productname:

Brass Stamping Parts

Drawing Formats:

STEP, STP, IGS, DWG, PDF

Inner Diameter:

Based On Part Geometry

Mould:

Multi-process Continuous Die

Highlight:

stamped pin socket contacts high conductivity

precision metal stamped brass contacts

reliable performance stamped socket contacts

Product Description

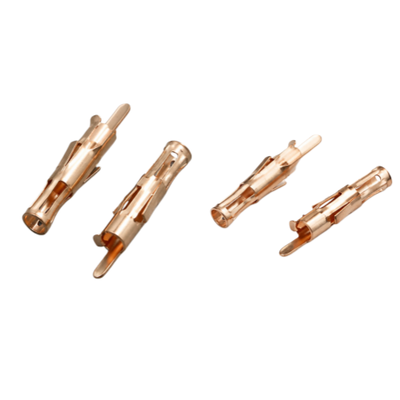

Stamped Pin and Socket Contacts | Precision Copper Connectors

Stamped Pin and Socket Contacts are high-precision electrical connection components designed to provide reliable signal transmission and power connection in various electronic and electrical systems. Manufactured through advanced metal stamping technology, these contacts offer excellent conductivity, mechanical strength, dimensional accuracy, and long-term stability.

Our precision copper connectors are produced using high-quality conductive materials such as copper, brass, phosphor bronze, and copper alloys. Combined with precision stamping, progressive die forming, and surface plating processes, these contacts achieve consistent performance, excellent contact reliability, and efficient mass production capability.

Designed for applications requiring compact structures, low electrical resistance, and secure mating performance, stamped pin and socket contacts are widely used in automotive electronics, industrial control systems, communication equipment, consumer electronics, power modules, and electrical connectors.

Features

High Electrical Conductivity
Manufactured from copper and copper alloy materials to provide excellent current transmission performance and low contact resistance.
Precision Metal Stamping
Advanced stamping processes ensure accurate dimensions, consistent shapes, and stable production quality for high-volume applications.
Reliable Contact Performance
Optimized pin and socket structures provide secure mating, stable connection force, and reduced risk of electrical interruption.
Excellent Corrosion Resistance
Optional surface treatments improve oxidation resistance and ensure long service life in different operating environments.
High Mechanical Strength
Strong material properties provide good wear resistance, bending resistance, and durability during repeated connection cycles.
Custom OEM Manufacturing
Supports customized designs, materials, dimensions, plating options, and performance requirements according to customer specifications.
Suitable for Automated Assembly
Precise dimensions allow compatibility with automated production lines and connector assembly equipment.

Technical Parameters

Parameter	Specification
Product Name	Stamped Pin and Socket Contacts
Material	Copper, Brass, Phosphor Bronze, Copper Alloy
Material Grades	C1020, C1100, C2600, C2680, C5191
Manufacturing Process	Precision Stamping, Progressive Die Stamping, Forming
Surface Treatment	Tin Plating, Nickel Plating, Gold Plating, Silver Plating
Thickness Range	0.1mm - 3.0mm
Contact Type	Pin Contact, Socket Contact, Terminal Contact
Electrical Performance	Low Contact Resistance, High Conductivity
Contact Force	Custom Designed According to Requirements
Tolerance	±0.02mm (Custom Available)
Application	Electronic Connectors, Automotive Systems, Industrial Equipment
Customization	OEM / ODM Supported
Quality Standard	ISO9001 Quality Management System

Applications

Automotive Electronics

Stamped pin and socket contacts are widely used in automotive connectors, control modules, sensors, battery management systems, and electrical assemblies. Their reliable connection performance helps maintain stable operation under vibration, temperature changes, and demanding automotive environments.

Consumer Electronics

These precision contacts are applied in smartphones, computers, smart devices, household electronics, and portable equipment where compact size and reliable electrical connections are required.

Industrial Automation

Used in PLC systems, industrial controllers, machinery equipment, and automation modules, these connectors provide stable signal transmission and long-term operational reliability.

Communication Equipment

Suitable for communication devices, networking equipment, and electronic modules requiring high-speed signal transmission and dependable contact performance.

Power Electronics

Applied in power supplies, charging systems, battery modules, and electrical control units where efficient current transmission and durable connection solutions are needed.

Electronic Manufacturing Industry

Ideal for OEM electronic manufacturers requiring customized stamped terminals, connector contacts, and precision metal components for mass production.

Customization

We provide comprehensive OEM/ODM customization services for Stamped Pin and Socket Contacts to meet different electrical and mechanical requirements.

Customized Design

Available customization options include:

Pin contact designs
Socket contact structures
Connector terminal shapes
Special bending and forming designs
Customer-specific dimensions

Products can be developed from customer drawings, samples, or functional requirements.

Material Options

Different materials can be selected according to application needs:

Copper: Excellent electrical conductivity
Brass: Good balance of conductivity and mechanical strength
Phosphor Bronze: Excellent elasticity and fatigue resistance
Copper Alloy: Enhanced durability and performance

Surface Treatment Options

Available plating solutions include:

Tin Plating: Improves solderability and oxidation resistance
Nickel Plating: Enhances corrosion protection
Gold Plating: Provides high reliability and excellent contact performance
Silver Plating: Improves conductivity for specific applications

Manufacturing Capabilities

Our production capabilities include:

Progressive die stamping
Precision metal stamping
Tooling design and manufacturing
Secondary forming
Surface finishing
Automated inspection

We support prototype development, small batch production, and high-volume manufacturing.

Support and Services

Engineering Support

Our engineering team provides professional assistance from product design optimization to production implementation, helping customers improve performance and reduce manufacturing costs.

Tooling Development

We offer complete tooling solutions including:

Progressive die design
Precision stamping molds
Tool maintenance
Production optimization

Prototype Manufacturing

Sample production is available for new designs to verify assembly compatibility, contact performance, and manufacturing feasibility before mass production.

Quality Control

Strict quality control procedures include:

Raw material inspection
Dimensional measurement
Surface finish inspection
Electrical performance testing
Final product inspection

OEM Manufacturing Service

We provide complete manufacturing solutions covering design support, tooling, stamping production, surface treatment, inspection, and global delivery.

Packing and Shipping

Packing Method

Stamped pin and socket contacts are carefully packaged to prevent deformation, oxidation, and surface damage during transportation.

Standard packaging:

PE bags
Plastic reels
Plastic trays
Carton boxes
Customized packaging solutions

For export orders:

Moisture-proof packaging
Protective inner packing
Standard export cartons

Shipping Options

Flexible logistics solutions are available:

Express shipping (DHL, FedEx, UPS)
Air freight
Sea freight
Customer-appointed shipping methods

All products are inspected before shipment to ensure quality and quantity accuracy.

FAQ

Q1: What materials are commonly used for stamped pin and socket contacts?

A: Common materials include copper, brass, phosphor bronze, and copper alloys. Material selection depends on conductivity, strength, elasticity, and application requirements.

Q2: Can you manufacture customized pin and socket contacts?

A: Yes. We provide OEM and ODM services based on customer drawings, samples, specifications, and performance requirements.

Q3: What surface treatments are available?

A: We provide tin plating, nickel plating, gold plating, and silver plating to improve conductivity, corrosion resistance, and contact reliability.

Q4: What manufacturing processes are used?

A: Our production processes include precision stamping, progressive die stamping, bending, forming, and surface finishing.

Q5: What industries use stamped pin and socket contacts?

A: They are widely used in automotive electronics, consumer electronics, industrial automation, communication equipment, power systems, and electronic assemblies.
