Product Description:

Our Deep Drawn Metal Cylindrical Parts are precision-formed components designed for strength, uniformity, and durability. Fabricated from high-grade cold-rolled or stainless steel, each cylindrical shell undergoes multi-stage deep drawing, flaring, and forming processes to achieve seamless construction and tight tolerances.

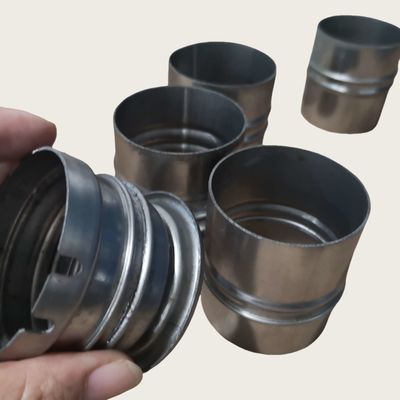

The product in the image showcases multiple steel sleeves/cups with flanged or grooved features, designed for press-fit, sealing, or fluid connection applications. With smooth internal walls, reinforced bases, and clean edges, these parts are suitable for high-performance environments where corrosion resistance, dimensional accuracy, and pressure containment are critical.

Features:

• Material Options: Cold-rolled steel, galvanized steel, stainless steel (304, 316), or aluminum

• Seamless Construction: Deep drawn from a single metal blank for leak-free performance

• Design Variants: Grooves, flanges, notches, holes, or vent slots available upon request

• High Strength: Withstands forming pressure and mechanical stress

• Surface Finish: Raw, deburred, oiled, or anti-rust treated

• Tight Tolerances: Consistent wall thickness and inner diameter control

• Cost-Effective: Ideal for medium to high-volume production with progressive dies

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for METS Sheet Metal Progressive Die:

Brand Name: METS

Place of Origin: XIAMEN, CHINA

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case without need of fumigation

Delivery Time: 7 days - 35 days

Payment Terms: TT, LC

Supply Ability: 25 sets per month

Delivery: By Sea, By Air, Or By Express

Package: Standard Export Carton Or As Customer's Requirement

Processing Method: Punching, Bending, Stamping, Welding

Material: Stainless Steel

Inspection: 100% Inspection Before Shipment

Sheet Metal Progressive Die by METS is ideal for various applications:

Automotive Industry: Used for manufacturing automotive parts such as body panels, brackets, and structural components.

Electronics Industry: Perfect for producing precision electronic enclosures, chassis, and components.

Home Appliance Industry: Enables the mass production of sheet metal parts for appliances like refrigerators, washers, and ovens.

Furniture Industry: Facilitates the creation of metal components for furniture pieces, enhancing durability and design.

Construction Sector: Ideal for fabricating metal parts used in construction projects, including brackets, supports, and fixtures.

With its high-quality stainless steel material and precision processing methods like punching, bending, stamping, and welding, METS Sheet Metal Progressive Die ensures accurate and efficient production processes.

Whether you require a single set or multiple sets, METS offers a flexible minimum order quantity and reliable supply ability of 25 sets per month.

Experience hassle-free transactions with convenient payment terms of TT or LC, and choose your preferred delivery method - by sea, by air, or by express.

Trust in METS for top-notch sheet metal cutting die solutions that undergo rigorous 100% inspection before shipment, guaranteeing superior quality and performance.

Customization:

Product Customization Services for Sheet Metal Progressive Die:

Brand Name: METS

Place of Origin: XIAMEN, CHINA

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case without need of fumigation

Delivery Time: 7 days-35 days

Payment Terms: TT, LC

Supply Ability: 25 sets per month

Package: Standard Export Carton Or As Customer's Requirement

Design Software: AutoCAD, Solidworks, Pro/E

Inspection: 100% Inspection Before Shipment

Processing Method: Punching, Bending, Stamping, Welding

Thickness: 0.2mm-3.0mm

Keywords: Sheet Metal Progressive Die, Sheet Metal Shaping Die, Sheet Metal Fabrication Die

Support and Services:

Product Technical Support and Services for the Sheet Metal Progressive Die:

Our technical support team is dedicated to assisting you with any inquiries or issues related to the Sheet Metal Progressive Die product. We provide comprehensive support to ensure that you can maximize the efficiency and performance of your equipment.

Our services include:

• Installation guidance and assistance
• Operational training and resources
• Troubleshooting and maintenance support
• Product upgrades and enhancements

Our goal is to help you make the most of your Sheet Metal Progressive Die, providing you with the expertise and resources needed to succeed in your operations.

Packing and Shipping:

Product Packaging for Sheet Metal Progressive Die:

The Sheet Metal Progressive Die will be carefully wrapped in protective foam and placed in a sturdy cardboard box to prevent any damage during transportation.

Shipping Information:

The product will be shipped via a reliable courier service to ensure timely delivery. Customers will receive a tracking number to monitor the status of their shipment.

FAQ:

Q1: Can I get a prototype for testing before tooling?
A: Yes. We can make CNC-turned or low-volume formed prototypes for design verification.

Q2: What is the typical lead time for mass production?
A: 15–20 days for tooling, 10–15 days for production depending on volume.

Q3: Can you design the tooling based on our existing part samples?
A: Absolutely. We can reverse-engineer from physical samples or reference drawings.

Q4: Do you offer corrosion-resistant surface treatments?
A: Yes, including oil coating, passivation, zinc plating, or stainless steel materials.

Q5: Are the parts pressure-tight or suitable for fluid systems?
A: Yes, deep drawn parts are seamless and can be used in fluid-tight assemblies with further sealing.
