|Type Of Die:||Progressive Die||Production Material:||Iron|
|Mould Life:||1,000,000-2,000,000 Shots||Press Force:||60Tons|
|Tolerance:||±0.01||Main Tooling Material:||DC53|
metal shelf brackets,
shelf support brackets

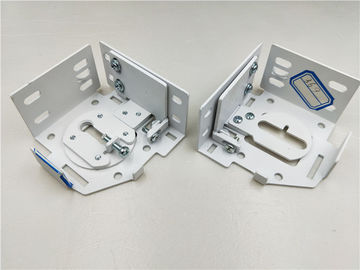

Stamping die for medical equipment shell metal stamping blanks
A: The min. pitch: 0.5mm
B: Highest stamping speed: 600SPM/min or more
C: Precision: ±0.003mm
D: Rate of hole diameter and thickness 0.85:1
E: Stamping material thickness:0.05-2.0mm
F: zero or less loss of material use.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Metal Stamped Parts & Components
We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.
Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:
Brackets (Computer & Mounting). Brackets for various Computer applications. PC Card Computer Brackets - Various standard and custom designs; Mounting brackets - threaded and non threaded style all could punch in our factory.
|Spare parts for Dies and insets||Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on|
|Die type||Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.|
|Die material||YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,|
|Die use||Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)|
|Part material||Cold rolled steel,stainless steel,copper,aluminum|
|Machinery Equipment||Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,|
|Die precision||High precision machining, minimum 0.003mm|
|Trial out press||25~180T|
|First trial sample||5-10 sets free|
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
|By Express||By Air||By Sea|
|West Europe||3-5 days||4-6 days||22-30days|
|USA &Canada||3-4days||5-6 days||16-27days|
|South Asia||3-5 days||3-7 days||12-20 days|
|Japan&South Korea||2-3 days||3-4 days||10-13 days|
First Step Wrapping by PE film to anti-rust.
Second wooden case without need of fumigation.Or as your required.
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
Stamping die Shows:
