MOQ: | 1 piece |
Price: | Negotiable |
Standard Packaging: | PVC bag, wooden case,carton |
Delivery Period: | 5-20days |
Payment Method: | TT,LC |
Supply Capacity: | 1000000 |

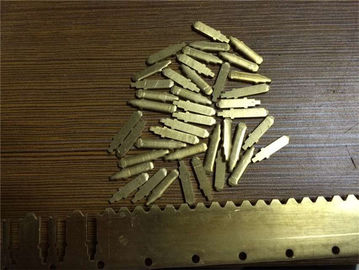

Reasonable layout compound blanking die for thick small brass input connecter parts
Stamping Capability
A: The min. pitch: 0.5mm
B: Highest stamping speed: 600SPM/min or more
C: Precision: ±0.003mm
D: Rate of hole diameter and thickness 0.85:1
E: Stamping material thickness:0.05-2.0mm
F: zero or less loss of material use.
METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.
Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.
Metal Stamped Parts & Components
We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.
Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:
Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals
Tool&Die Profile
Tool&Die Material | SKD11 DC53 45# steel Cr12mov P20 |
Accuracy | 0.002mm |
Capacity | Tool &die :30 sets/month part :1million /month |
Design software | 3D: Pro-E |
2D: auto CAD | |
Surface Treatment | Powder coating,Hot galvanized,Painting,Polishing,Brushing,Chrome, |
Test Equipment | Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester, |
universal testing machine & Coordinate-Detector | |
Thickness | 0.1-2.0mm or other special available |
Lead time | 15-55 days according to products Max: 2 Weeks (On Initial Order) |
Standard | ANSI. API.BS.DIN.JIS.GB.etc |
Equipment | 1) Stamping machine |
2) CNC milling and turning, grinding, honing, lapping, broaching and other secondary machining. | |
3) integral CNC machineries & four machining centers, such as milling, broaching, drilling, | |
turning, planning, grinding machinery and three-axle machining centers. | |
Productions Cover | Sheet metal auto parts, Auto stamping parts,Home Electrics stampingparts, Device stamping parts |
We accept your any request on shipment.By air, by sea,and by Express are acceptable.
By Express | By Air | By Sea | |
West Europe | 3-5 days | 4-6 days | 22-30days |
USA &Canada | 3-4days | 5-6 days | 16-27days |
South Asia | 3-5 days | 3-7 days | 12-20 days |
Japan&South Korea | 2-3 days | 3-4 days | 10-13 days |
Russia | -------- | --------- | 30-40 days |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with the same email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.
Stamping die Shows:
|
