|Type Of Die:||Progressive Die||Treatment:||Annealing, Normalizing|
|Main Tooling Material:||SKD11||Precision:||0.003MM|
metal stamping mould,
sheet metal die components,

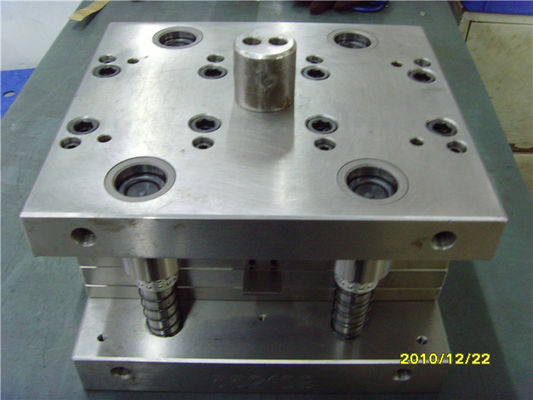

Round Power Line Terminal Stamping Dies
Precision tooling Progressive stamping dies for terminals / sheet metal /round power-line
Progressive stamping is a metalworking method that can encompass punching, coining, bending and several other ways of modifying metal raw material, combined with an automatic feeding system.
The feeding system pushes a strip of metal (as it unrolls from a coil) through all of the stations of a progressive stamping die. Each station performs one or more operations until a finished part is made. The final station is a cutoff operation, which separates the finished part from the carrying web. The carrying web, along with metal that is punched away in previous operations, is treated as scrap metal. Both are cut away, knocked down (or out of the dies) and then ejected from the die set, and in mass production are often transferred to scrap bins via underground scrap material conveyor belts.
The progressive stamping die is placed into a reciprocating stamping press. As the press moves up, the top die moves with it, which allows the material to feed. When the press moves down, the die closes and performs the stamping operation. With each stroke of the press, a completed part is removed from the die.
Since additional work is done in each "station" of the die, it is important that the strip be advanced very precisely so that it aligns within a few thousandths of an inch as it moves from station to station. Bullet shaped or conical "pilots" enter previously pierced round holes in the strip to assure this alignment since the feeding mechanism usually cannot provide the necessary precision in feed length.
Progressive stamping can also be produced on transfer presses. These are presses that transfer the components from one station to the next with the use of mechanical "fingers". For mass production of stamped parts which do require complicated in-press operations, it is always advisable to use a progressive press. One of the advantages of this type of press is the production cycle time. Depending upon the part, productions can easily run well over 800 parts/minute. One of the disadvantages of this type of press is that it is not suitable for high precision deep drawing which is when the depth of the stamping exceeds the diameter of the part. When necessary, this process is performed upon a transfer press, which run at slower speeds, and rely on the mechanical fingers to hold the component in place during the entire forming cycle. In the case of the progressive press, only part of the forming cycle can be guided by spring-loaded sleeves or similar, which result in concentricity and ovality issues and non uniform material thickness. Other disadvantages of progressive presses compared to transfer presses are: increased raw material input required to transfer parts, tools are much more expensive because they are made in blocks with very little independent regulation per station; impossibility to perform processes in the press that require the part leave the strip (example beading, necking, flange curling, thread rolling, rotary stamping etc.).
The dies are usually made of tool steel to withstand the high shock loading involved, retain the necessary sharp cutting edge, and resist the abrasive forces involved.
The cost is determined by the number of features, which determine what tooling will need to be used. It is advised to keep the features as simple as possible to keep the cost of tooling to a minimum. Features that are close together produce a problem because it may not provide enough clearance for the punch, which could result in another station. It can also be problematic to have narrow cuts and protrusions.
|General Capabilities||Design Modeling 2D, 3D,processing,assembling||Die Location Technical Support||Inspection|
|Detail Tooling Documentation||DFMEA/PFMEA||Quick Building Prototypes|
|Die Types||Forming Dies||Precision Progressive Stamping Dies||Secondary Dies|
|High Speed Steel Stamping Dies||Precision Blanking Dies||Forming Die|
|Tooling Life||50 Million to 1000 Million Times|
|Die Concept||2-Plate Die||3-Plate Die||Module Die|
|Production Equipment||CNC||SODICK Nice Surface EDM||P/G|
|Drill||SODICK Wire Cutting Machine||J/G|
|Milling Machine||WAIDA Profile Grinder Machine|
|Stamping Product||Custom Stamping||SIM shrapnel||Spring clip|
|Battery shrapnel||Shield Drawing||Press-Fit Terminal|
|Lead Frame||Power Contact Terminal||PC Terminal parts|
|Additional Services Provided||Custom Packing||Packaging||Heat Treat|
|Delivery||3-5 Week||3-6 Week||4-7 Week|
How to start a new mould business?
|1.Quote||According to samples/picture/design, 2/3 D drawing and specification|
|2.Discussion||Mould insert/base material, row number, step pitch,price, payment, etc|
|3.PI||Approval for all terms|
|4. Deposit||50% by T/T|
|5.Product Design||Our engineer will check product drawing, and pick up the unreasonable terms|
|6.Tool Design||Our engineer will do DFM and send PPT to customers for approval|
|7.Tool making||We start to make tool after customers confirmed the drawing|
|8.ToolTesting||We will express trial samples to customers for confirmation|
|9. Tool repair||We will modify the mould according to customer’s feedback|
|10. Tool approval||Express trial samples again till products approval|
|11.Balance payment||T/T before delivery|
|12.Delivery||Delivery by sea or air, all documents as customer required|
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM
