Automotive Gasket 3 Row Progressive Die Stamping , Precision Metal Stamping Parts

Automotive Gasket 3 Row Progressive Die Stamping , Precision Metal Stamping Parts

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Material:
317 Stainless Steel
Mould Life:
100000-500000 Shots
Press Force:
35Ton
Tolerance:
±0.06mm
Main Tooling Material:
D2
Cavity:
Three Cavities
Thickness:
1.2mm
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

stamping die components

,

sheet metal stamping parts

,

3 Row Progressive Die Stamping

Product Description



High technical requirements automotive gasket 3 row progressive die



Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.



Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems. Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more. Custom stamping dies can be created for various applications in industries such as automotive and aerospace



Metal Stamped Parts & Components

We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.

Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:



Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals



Tool&Die​ Profil

General Capabilities Design Modeling 2D, 3D,processing,assembling Die Location Technical Support Inspection
Detail Tooling Documentation DFMEA/PFMEA Quick Building Prototypes
Die Types Forming Dies Precision Progressive Stamping Dies Secondary Dies
High Speed Steel Stamping Dies Precision Blanking Dies Forming Die
Tooling Material Carbide(CD650,V3,KD20) ASP-23 ASP-60
S55C---45#55 AL7075 SKD11
Tooling Life 50 Million to 1000 Million Times
Die Concept 2-Plate Die 3-Plate Die Module Die
Production Equipment CNC SODICK Nice Surface EDM P/G
Drill SODICK Wire Cutting Machine J/G
Milling Machine WAIDA Profile Grinder Machine
Stamping Equipment AIDA PURDER MICO
MICO
Stamping Product Custom Stamping SIM shrapnel Spring clip
Battery shrapnel Shield Drawing Press-Fit Terminal
Lead Frame Power Contact Terminal PC Terminal parts
Additional Services Provided Custom Packing Packaging Heat Treat
Plating
Delivery 3-5 Week 3-6 Week 4-7 Week



How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification

2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc

3. PI Approval for all terms

4. Deposit 50% by T/T

5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms

6. Mould Design Our engineer will do DFM and send PPT to customers for approval

7. Mould making We start to make mould after customers confirmed the drawing

8. Mold Testing We will express trial samples to customers by DHL for confirmation

9. Mould repair We will modify the mould according to customer’s feedback
 ↓
10. Mould approval Express trial samples by DHL again till products approval

11. Balance payment 50% by T/T before delivery

12. Delivery Delivery by sea or air, all documents as customer required



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM

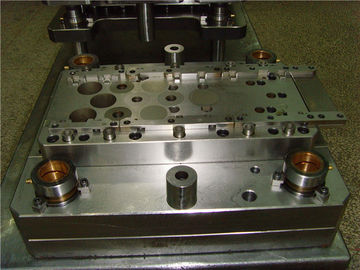

Stamping die Shows:

Automotive Gasket 3 Row Progressive Die Stamping , Precision Metal Stamping Parts 0
