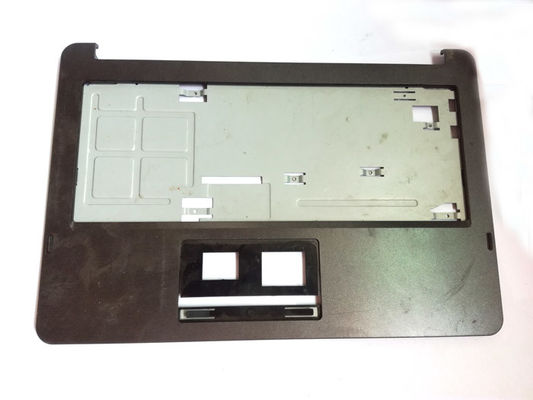

Assembling Automotive Stamping Dies Laptop Computer Keyboard Metal Frame

Assembling Automotive Stamping Dies Laptop Computer Keyboard Metal Frame

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Material:
Iron
Mould Life:
1,000,000-3,000,000 Shots
Press Force:
160Ton
Tolerance:
±0.5mm
Main Tooling Material:
D2
Precision:
0.01MM
Cavity:
One Row
Thickness:
0.5mm
Processing Way:
WEDM,Grinding
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

auto stamping parts

,

automotive metal stamping

,

Assembling Automotive Stamping Dies

Product Description



Precision easy to load and unload laptop computer keyboard metal frame stamping and



assembling





Metal Stamping Die Capability



· Die Insert Tolerence: +/-0.005mm



· Stamping Speed: 1000SPM/min



· Tooling Life: 50-300 million times



METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.



Metal Stamped Parts & Components

We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.

Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:

Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals

Metal stamping includes a variety of sheet-metal forming manufacturing processes, such as punching using a machine press or stamping press, blanking, embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the press produce the desired form on the sheet metal part, or could occur through a series of stages.


Compound Die Stamping is the process where the die separates or blanks the part from a steel strip in one stroke. A Compound Die will perform multiple cuts or punches in one stroke, as compared to multiple strokes. This is a very cost effective method for stamping medium to high volume parts while keeping labor and die costs down. Compound Dies are often used to stamp simpler flat parts such as washers.

Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.

Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die



Mould building process

Step Item high speed stamping die
1 Quotation Quote competitive price according to your details (drawing or sample, and related requirements).
2 Order Sign agreement after confirming price
3 Mould design Design the mould structure drawing according to your product drawing or sample,
then send the tooling drawings to you for confirmation.
4 Mould making After your confirmation of our drawing, we begin to make the moulds,
during manufacturing program,
we send you mould building progress with pictures every week, for you to know our process.
5 First trial We will make the stamping die first trial on time, then send you video or picture
and trial samples for you to confirm.
Or you can also come to our factory .And we will inspect them and issue the report.
6 Quality confirm You will confirm our stamping die quality according to sample.
If you need to adjust the product structure, we can help you to change it further.
7 Delivery Ship the stamping die after it is completely OK, packed by wooden case.





We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days




Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.





FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



Stamping die Shows:

Assembling Automotive Stamping Dies Laptop Computer Keyboard Metal Frame 0Assembling Automotive Stamping Dies Laptop Computer Keyboard Metal Frame 1
