Product Details:
|
| Type Of Die: | Progressive Die | Treatment: | Tempering |
|---|---|---|---|
| Mould Life: | 3 Million Strokes | Press Force: | 45Ton |
| Tolerance: | ±0.002 | Main Tooling Material: | DC53 |
| Thickness: | 0.5mm | Processing Way: | WEDM |
| High Light: | metal stamping mould,precision metal stamping,Monitor Bracket Progressive Metal Stamping |
||

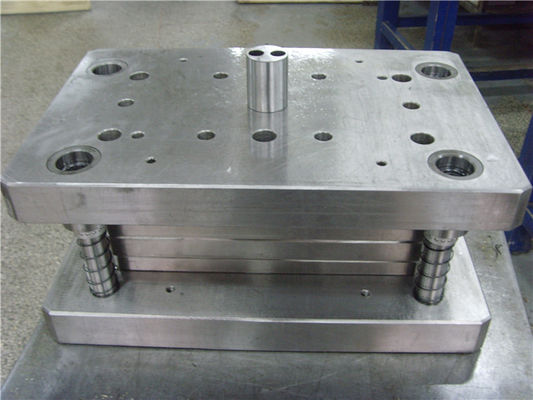

Instrument mounting adjust the bracket,monitor bracket progressive die
METS can design and build “bending and forming” tools, usually considered a secondary operation where a flat blank or part is placed into the tool and formed and bent with one or more operation or single press cycle, Usually lower volume parts will be formed and produced from secondary bending and forming tools.
Bend/Form Dies are used to bend, form, or draw the material or part into a variety of angles and shapes. This can be done as a secondary tool and operation, or it can be built into a progressive die.
| General Capabilities | Design Modeling 2D, 3D,processing,assembling | Die Location Technical Support | Inspection |
| Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | |
| Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies |
| High Speed Steel Stamping Dies | Precision Blanking Dies | Forming Die | |
| Tooling Material | Carbide(CD650,V3,KD20) | ASP-23 | ASP-60 |
| S55C---45#55 | AL7075 | SKD11 | |
| Tooling Life | 50 Million to 1000 Million Times | ||
| Die Concept | 2-Plate Die | 3-Plate Die | Module Die |
| Production Equipment | CNC | SODICK Nice Surface EDM | P/G |
| Drill | SODICK Wire Cutting Machine | J/G | |
| Milling Machine | WAIDA Profile Grinder Machine | ||
| Stamping Equipment | AIDA | PURDER | MICO |
| MICO | |||
| Stamping Product | Custom Stamping | SIM shrapnel | Spring clip |
| Battery shrapnel | Shield Drawing | Press-Fit Terminal | |
| Lead Frame | Power Contact Terminal | PC Terminal parts | |
| Additional Services Provided | Custom Packing | Packaging | Heat Treat |
| Plating | |||
| Delivery | 3-5 Week | 3-6 Week | 4-7 Week |
Our Service
Punching die design and process.
Punching die for household appliance, punching die for led light shield, punching die for electronic industry, electronics and appliances etc.METS is a professional metal stamping die manufactuer.
Based on more than 10 years of development, supported by saling, R&D, mould and parts, through integration of precision die stamping, hardware, assembly, we always supply in
tegrated solutions for customers. Our company has capability of large mould machining, large parts forming.
In future 10 years, we will further fortify the development of precision mould,exquisite hardware, and make further effort to meet customers' requirements, to improve compositive service of our company.
Our customers come from England, USA, Holland, German, Canada, Russia, Australia, New Zealand, Unraine, India, Brazil, Janpan, South Korea, Turkey, Egypt, South Africa, etc.
Stamping die details:
