Product Details:
|
| Material: | Metal Steels | Type Of Die: | Progressive Punch Die |
|---|---|---|---|
| Design Software: | Auto CAD | Main Process: | WEDM |
| Inspection Machine: | Micrometer | Mould Life: | 100 Million Times Of Stroke |
| Tolerance: | ±0.03 | Die Types: | Forming Dies |
| High Light: | metal stamping mould,sheet metal die components |
||

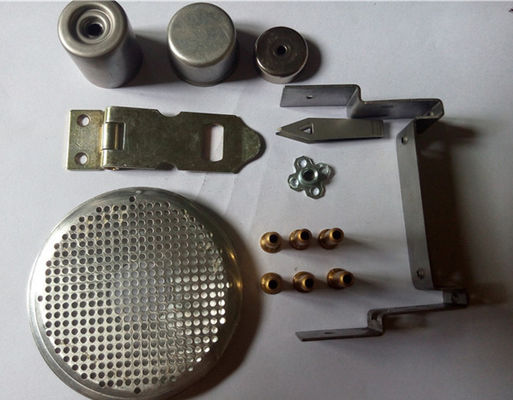

Precision hardware accessories, hardware parts progressive stamping die/tool/mold
Compound Die Stamping is the process where the die separates or blanks the part from a steel strip in one stroke. A Compound Die will perform multiple cuts or punches in one stroke, as compared to multiple strokes. This is a very cost effective method for stamping medium to high volume parts while keeping labor and die costs down. Compound Dies are often used to stamp simpler flat parts such as washers.
Here at METS Precision-Tool it’s our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production. We can achieve this by building in sensors and other accessories to protect the die from damage. Cycle time is always kept in mind when designing and building our Compound Die tooling. We can build the die to stamp the part at the accuracy you need.
Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material. The feed rate of the material is determined by the size of the part. Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times. Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material. Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin. The scrap will exit the die in strip form or in piece form depending on if you’ve included a scrap cut-off station. Scrap can be collected in bins or hoppers on the exit end of the die
| Production Material | Brass, Copper, steel, Stainless steel, Steel alloy, Aluminum alloy |
| Surface treatments | Anodize or Nickel plating or as per customer's requirement |
| Processing methods | Forgings, CNC milling and turning, Grinding, casting, Broaching, etc. |
| Heat treatment capability | Annealing, Normalizing , Nitriding, Tempering ,Carbonitriding, Carburizing and induction hardening |
| Processing machine | CNC machines, Automatic lathe machine, Stamping Lathes, Milling/ Grinding machine, Drilling/ Boring/ Honing machine, Ultrasonic cleaning machine and other advanced production equipments. |
| Inspection machine | Projector, Caliper, Universal testing machine, Surfagauge and screw gauge |
| Tolerance | 0.02mm |
| Packing | Standard export package, Carton, Wood pallet or as requirement |
| shipping | 5--10 work days after received order and deposit |
| Payment Terms | T/T or L/C |
| Main Export Markets | North America, Europe, Mid East, Asia, Australia, Central/South America, etc |
| Application | Vehicle, Car, Electronic components, Household, Hardware, etc. |
Why us?
1) Equipment: We own Stamping machines, Hydraulic press machines, Auto-Turning machines, CNC-Turning machines, Milling machines, Precision AGIE ,SODICKwire cutting machines,MOORE JIG grinding machine,KENT Milling Machine,WAIDA CNC Optical profile Grinder,and so on;
2) Material: copper, alloy steel, aluminum, iron, carbon steel, stainless steel, brass, cold rolled steel with various plating;
3) Surface treatment: kinds of plating (Zinc, Nikel, Chrome, Tin, Ag); Painting, Powder, Anodizing, E-coating, Silkscreen, Heat treatment, Black oxid;
4) Standard/ specification: OEM service as per customers' requests, within-house tooling design & fabricating;
Stamping die details:
