Auto Spare Parts Sheet Metal Bending Dies Brass Female Unsealed Electrical Connector

Auto Spare Parts Sheet Metal Bending Dies Brass Female Unsealed Electrical Connector

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden case without need of fumigation
Delivery Period: 7days-35days
Payment Method: TT,LC
Supply Capacity: 25 sets per month
Detail Information
Place of Origin
XIAMEN.CHINA
Brand Name
METS
Type Of Die:
Progressive Die
Material:
Copper
Mould Life:
700000-800000 Shots
Press Force:
45Ton
Tolerance:
±0.02MM
Main Tooling Material:
DC53
Precision:
0.008MM
Cavity:
One Row
Thickness:
0.5mm
Processing Way:
WEDM
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case without need of fumigation
Delivery Time:
7days-35days
Payment Terms:
TT,LC
Supply Ability:
25 sets per month
High Light:

sheet metal forming dies

,

sheet metal parts

Product Description

Auto spare parts brass female unsealed electrical connector terminal stamping



Progressive stamping is a metalworking method that can encompass punching, coining, bending and several other ways of modifying metal raw material, combined with an automatic feeding system.

The feeding system pushes a strip of metal (as it unrolls from a coil) through all of the stations of a progressive stamping die. Each station performs one or more operations until a finished part is made. The final station is a cutoff operation, which separates the finished part from the carrying web. The carrying web, along with metal that is punched away in previous operations, is treated as scrap metal. Both are cut away, knocked down (or out of the dies) and then ejected from the die set, and in mass production are often transferred to scrap bins via underground scrap material conveyor belts.

The progressive stamping die is placed into a reciprocating stamping press. As the press moves up, the top die moves with it, which allows the material to feed. When the press moves down, the die closes and performs the stamping operation. With each stroke of the press, a completed part is removed from the die.



Metal Stamped Parts & Components

We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.

Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:

Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals



Product description

Mould material SKD11/51/61,SKH-9,S136, ASP60, ASP23, S45C, CD650, NAK80,XW-42,2738,8407,etc.
Product material copper, brass, metal, gold, bronze
Processing methods Forings,CNC milling and turning,Grinding,Casting,Broaching,etc.
Processing equipment CNC machine,Automotic lathe machine,EDM machine,Stamping lathes,Wire-cutting machine,Milling/Grinding machine,Punching/Drilling machine,Ultrasonec cleaning machine,etc.
Detection equipment Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc.
Application Electronic:Vehicle parts,CNC machining parts,Wireless receiver plastic part, 3G/4G Modem Wireless Network Cards,USB housing. Automotive interior parts: connector, navigation frame, car key. All kinds of connectors, digital parts.
surface treatment Plating,Painting,Powder coating,Anodization,Ball blasting
Vibration grinding,Polishing,Brushing.or according to customer’s requests.
Design software PROE ,CATIA, SOLIDWORK, CAD,etc.
Cavity Single / Multi per request
Mould life 1-30million shots
Specification Many years machining parts processing experience;Precision tolerance less than 0.001mm;Depends on customer’s requirements.
Delivery Normally within 7-45 days (according to customer drawing, quantity and material) special case will be sooner
Payment terms T/T
Package Wooden case or as customer's requirements



FAQ

Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine?
--- The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.

Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.

---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.

---- All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM



We accept your any request on shipment.By air, by sea,and by Express are acceptable.

  By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days


Stamping die details:

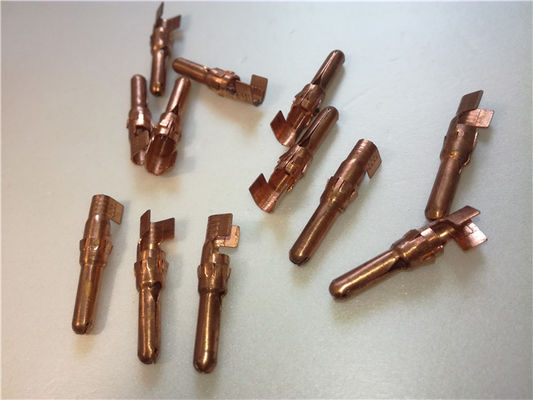

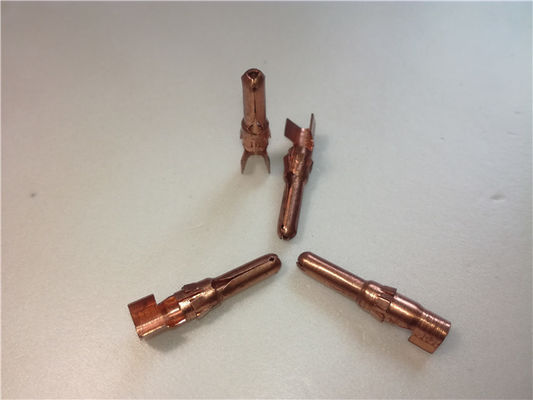

Auto Spare Parts Sheet Metal Bending Dies Brass Female Unsealed Electrical Connector 0Auto Spare Parts Sheet Metal Bending Dies Brass Female Unsealed Electrical Connector 1
