Custom Deep Drawing & Stamping Parts – Precision Metal Forming for Industrial Applications

Custom Deep Drawing & Stamping Parts – Precision Metal Forming for Industrial Applications

Product Description:

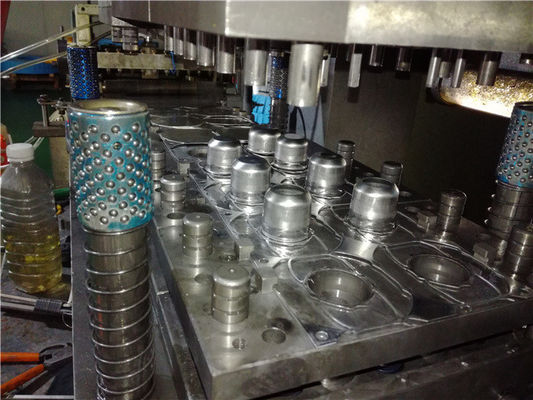

Our deep drawing and metal stamping services provide high-precision forming solutions for complex, high-strength, and seamless metal parts. The deep drawing process allows for the transformation of flat metal sheets into hollow or cylindrical shapes without welds, making it ideal for structural and sealed components.

By combining deep drawing, stretch forming, and precision stamping, we are capable of producing durable, lightweight, and corrosion-resistant parts from stainless steel, aluminum, brass, and more — meeting strict tolerance and performance requirements for automotive, aerospace, electronics, and appliance industries.

We offer full-service customization, including mold design, prototyping, mass production, secondary processing, and surface finishing.

Features:

• ✅ Seamless Forming: One-piece structure without welds or joints

• ✅ High Strength-to-Weight Ratio: Ideal for structural and load-bearing applications

• ✅ Cost-Effective for Mass Production: Efficient cycle times and reduced material waste

• ✅ Custom Depth and Shape Options: Cylindrical, rectangular, conical, or complex shapes

• ✅ Tight Tolerance Control: Up to ±0.05mm for critical dimensions

• ✅ Supports Secondary Operations: Piercing, flanging, trimming, tapping, welding

Technical Parameters:

Applications:

The METS Sheet Metal Progressive Die is a versatile tool that can be used in various industries and applications. Its precision engineering and durable construction make it suitable for a wide range of product development and manufacturing processes.

Here are some key application occasions and scenarios where the METS Sheet Metal Progressive Die excels:

• Automotive Industry: The progressive die is ideal for producing sheet metal components used in automotive manufacturing, such as brackets, panels, and chassis parts.
• Electronics Industry: With its high tolerance of ±0.01mm, the die is perfect for creating intricate and precise sheet metal parts for electronic devices and components.
• Appliances Manufacturing: The die can be used to produce sheet metal parts for household appliances like refrigerators, washing machines, and ovens.
• Furniture Production: The die is suitable for manufacturing sheet metal parts used in furniture, such as table frames, chair components, and shelving units.
• Aerospace Sector: The progressive die can be utilized in the aerospace industry to create complex and lightweight sheet metal components for aircraft and spacecraft.

Regardless of the industry or application, the METS Sheet Metal Progressive Die offers high precision, efficiency, and consistency in producing sheet metal parts. Its compatibility with design software like AutoCAD, Solidworks, and Pro/E, as well as acceptance of drawing formats such as PDF, DWG, IGS, and STEP, ensures seamless integration into various production workflows.

With a minimum order quantity of 1 set and negotiable pricing, the METS Sheet Metal Progressive Die provides flexibility for both small-scale and large-scale manufacturing operations. The delivery time of 7 days to 35 days, along with payment terms of TT and LC, offers convenience and reliability to customers. Additionally, the die's packaging details in a wooden case without the need for fumigation ensure safe transportation and storage.

Equipped with CNC Punching Machine, CNC Bending Machine, and Stamping Machine, the METS Sheet Metal Progressive Die is capable of handling a wide range of sheet metal processing requirements. The surface treatment options of polishing, anodizing, plating, and sandblasting further enhance the aesthetic appeal and durability of the produced parts.

With a supply ability of 25 sets per month, the METS Sheet Metal Progressive Die is a dependable tool for meeting the sheet metal stamping, bending, and forming needs of various industries worldwide.

Customization:

Product Customization Services for Sheet Metal Progressive Die:

Brand Name: METS

Place of Origin: XIAMEN, CHINA

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case without need of fumigation

Delivery Time: 7 days - 35 days

Payment Terms: TT, LC

Supply Ability: 25 sets per month

Drawing Format: PDF, DWG, IGS, STEP

Lead Time: 7-15 Days

Processing Method: Punching, Bending, Stamping, Welding

Thickness: 0.2mm - 3.0mm

Design Software: AutoCAD, Solidworks, Pro/E

Keywords: Sheet Metal Forming Tool, Sheet Metal Cutting Die, Sheet Metal Stamping Die

Support and Services:

Our Product Technical Support team for the Sheet Metal Progressive Die product is dedicated to providing comprehensive assistance to customers. Our experts are available to address any technical inquiries, troubleshoot issues, and offer guidance on maximizing the performance of the product.

In addition to technical support, we also offer a range of services to enhance the overall experience with our Sheet Metal Progressive Die product. These services may include installation assistance, training programs, maintenance support, and customization options based on specific requirements.

Packing and Shipping:

Product Packaging:

The Sheet Metal Progressive Die product will be carefully packaged in protective wrapping to prevent any damage during shipping. It will then be placed in a sturdy cardboard box with ample cushioning material to ensure safe transit.

Shipping:

Once packaged, the Sheet Metal Progressive Die product will be shipped via a reputable courier service such as UPS or FedEx. Customers will receive a tracking number to monitor the status of their delivery. Shipping times may vary depending on the destination, but we strive to deliver products in a timely manner.

FAQ:

Q1: What’s the maximum depth you can achieve with deep drawing?
A1: We can produce deep drawn parts up to 150mm in depth depending on material and diameter.

Q2: What’s the typical lead time for tooling and production?
A2: Tooling usually takes 15–25 days, and production 7–20 days, depending on volume and complexity.

Q3: What file formats do you accept for custom drawings?
A3: We accept STEP, IGES, PDF, DWG, DXF, STL formats for tooling and design review.

Q4: Can I request samples before mass production?
A4: Yes. We offer sample prototyping and small batch trial runs to ensure satisfaction.

Q5: What industries are your deep drawing parts mainly used in?
A5: Automotive, aerospace, home appliances, electronics, medical devices, and industrial equipment.

Q6: How do you ensure quality control?
A6: Our QC system includes 100% inspection, in-process monitoring, CMM/2D projectors, and full PPAP documentation if needed.

Q7: Do you provide export documentation and certificates?
A7: Yes, including CO, Form E, RoHS, Material Certifications, ISO9001, and more on request.
